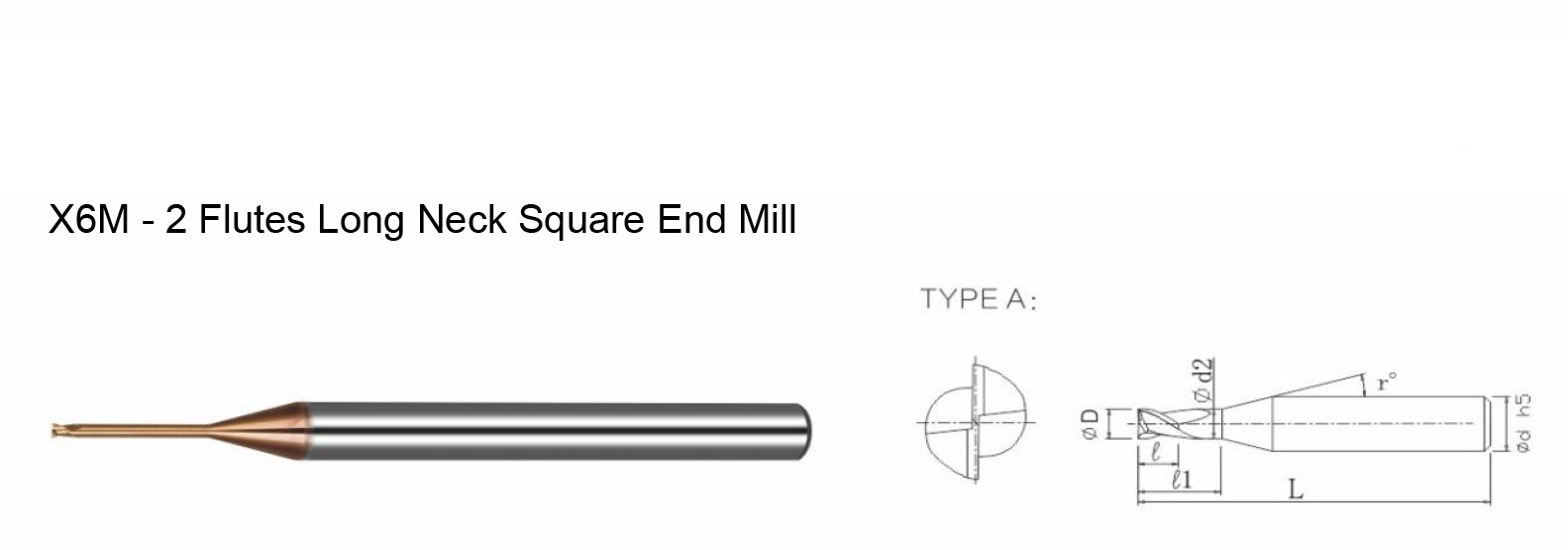

Model No	Specification	Cutting Dia	Neck Length	Cutting Length	Neck Dia	Shank Dia	Full Length
X6MNE01005	0.10.5L0.08L	0.1	0.5	0.08	0.085	4	45
X6MNE0101	0.11L0.08L	0.1	1	0.08	0.085	4	45
X6MNE01501	0.151L0.12L	0.15	1	0.12	0.13	4	45
X6MNE015015	0.151.5L0.12L	0.15	1.5	0.12	0.13	4	45
X6MNE01502	0.152L0.12L	0.15	2	0.12	0.13	4	45
X6MNE0201	0.21L0.16L	0.2	1	0.16	0.18	4	45
X6MNE02015	0.21.5L0.16L	0.2	1.5	0.16	0.18	4	45
X6MNE0202	0.22L0.16L	0.2	2	0.16	0.18	4	45
X6MNE0203	0.23L0.16L	0.2	3	0.16	0.18	4	45
X6MNE0301	0.31L0.24L	0.3	1	0.24	0.27	4	45
X6MNE03015	0.31.5L0.24L	0.3	1.5	0.24	0.27	4	45
X6MNE0302	0.32L0.24L	0.3	2	0.24	0.27	4	45
X6MNE0303	0.33L0.24L	0.3	3	0.24	0.27	4	45
X6MNE0304	0.34L0.24L	0.3	4	0.24	0.27	4	45
X6MNE0306	0.36L0.24L	0.3	6	0.24	0.27	4	45
