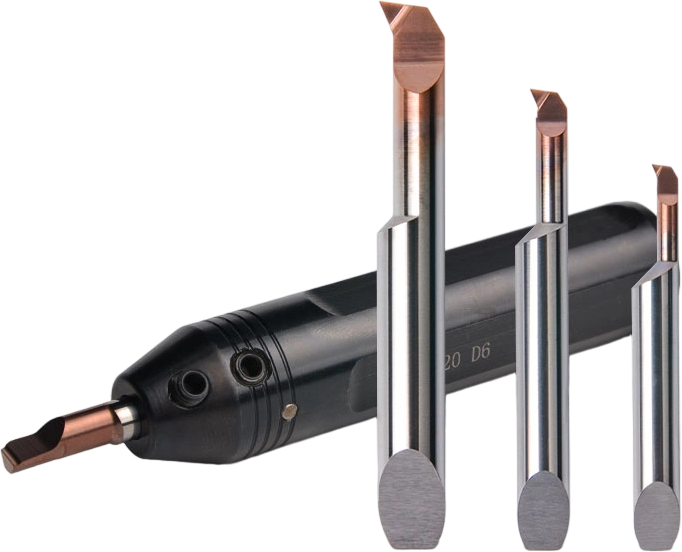

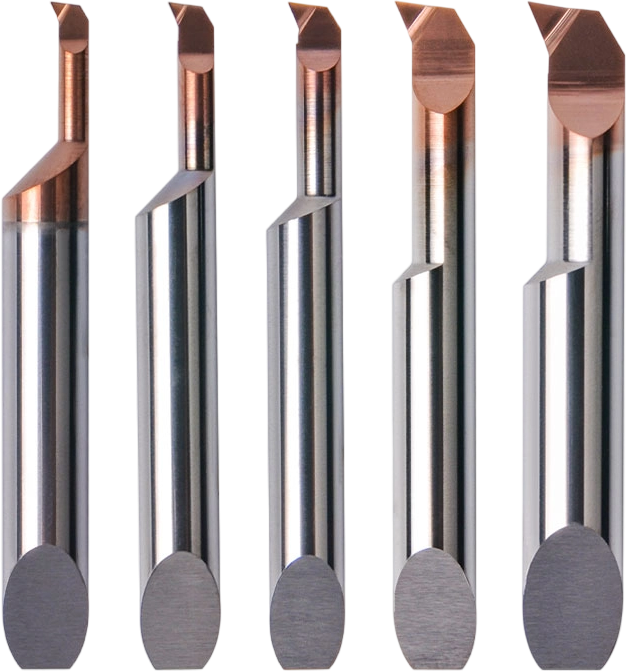

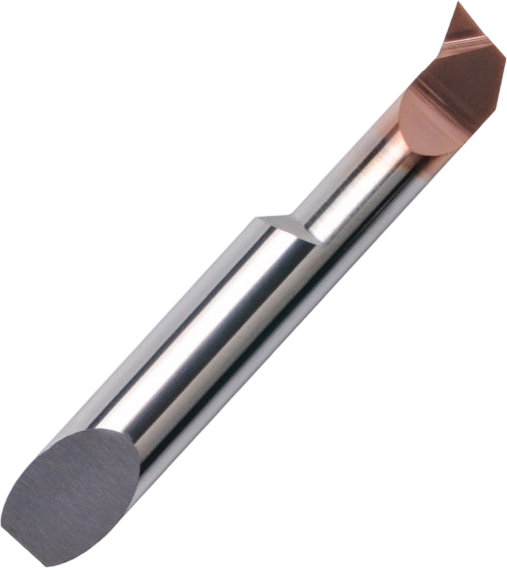

MBQR quick change micro boring tool

MBQR Quick Change Micro Boring Tool is developed for precision micro-boring in small-diameter holes, supporting efficient machining on CNC and Swiss-type equipment. Its quick-change design shortens setup time and improves productivity in high-volume environments. Constructed from micro-grain carbide, the tool delivers stable cutting behavior and reliable surface quality when machining stainless steel, titanium alloys, and non-ferrous materials. Configuration options such as shank diameter, tool length, cutting geometry, and coatings including TiAlN, AlTiN, and DLC allow adaptation to different applications. Widely used in aerospace, medical, electronics, and automotive manufacturing, the MBQR tool combines accuracy, flexibility, and production efficiency.

Inquiry ODM/OEM

Tag:

Quick Change Boring Tool Boring bar CNC boring cutter Small Boring Cutter Boring tool

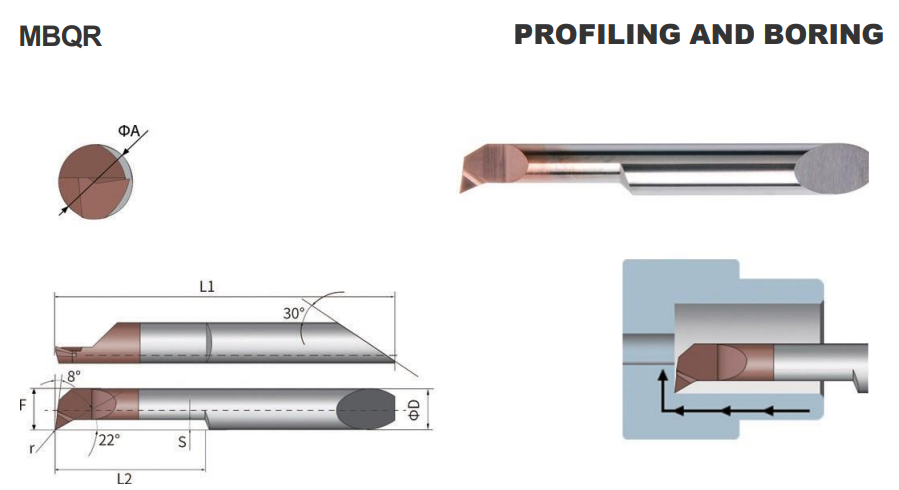

Product Details Parameter Coating

Product Type	Min.Dia（mm）ΦA	ΦD	r	L1	L2	F	S	JS25	AL25
MBQR0404L02R003-D-(C）	0.40	4.00	0.03	28.00	2.00	0.38	0.05	•	•
MBQR0406L02R003-D-(C）	0.60	4.00	0.03	28.00	2.00	0.55	0.06	•	•
MBQR0408L025R003-D-	0.80	4.00	0.03	28.00	2.50	0.75	0.08	•	•
MBQR0410L04R005-D-(C）	1.00	4.00	0.05	29.00	4.00	0.90	0.15	•	•
MBQR0410L04R010-D-(C）	1.00	4.00	0.10	29.00	4.00	0.90	0.15	•	•
MBQR0410L06R005-D-(C）	1.00	4.00	0.05	31.00	6.00	0.90	0.15	•	•
MBQR0410L06R010-D-(C）	1.00	4.00	0.10	31.00	6.00	0.90	0.15	•	•
MBQR0412L04R005-D-(C）	1.20	4.00	0.05	29.00	4.00	1.10	0.15	•	•
MBQR0412L04R010-D-(C）	1.20	4.00	0.10	29.00	4.00	1.10	0.15	•	•
MBQR0412L06R005-D-C）	1.20	4.00	0.05	29.00	6.00	1.10	0.15	•	•
MBQR0412L06R010-D-(C）	1.20	4.00	0.10	29.00	6.00	1.10	0.15	•	•
MBQR0415L05R005-D-(C）	1.50	4.00	0.05	30.00	5.00	1.40	0.20	•	•
MBQR0415L05R010-D-(C）	1.50	4.00	0.10	30.00	5.00	1.40	0.20	•	•
MBQR0415L08R005-D-(C）	1.50	4.00	0.05	33.00	8.00	1.40	0.20	•	•
MBQR0415L08R010-D-C）	1.50	4.00	0.10	33.00	8.00	1.40	0.20	•	•
MBQR0418L05R005-D-(C）	1.80	4.00	0.05	30.00	5.00	1.70	0.20	•	•
MBQR0418L05R010-D-(C）	1.80	4.00	0.10	30.00	5.00	1.70	0.20	•	•
MBQR0418L09R005-D-(C）	1.80	4.00	0.05	34.00	9.00	1.70	0.20	•	•
MBQR0418L09R010-D-(C）	1.80	4.00	0.10	34.00	9.00	1.70	0.20	•	•
MBQR0421L06R005-D-(C）	2.10	4.00	0.05	31.00	6.00	1.85	0.25	•	•
MBQR0421L06R010-D-(C）	2.10	4.00	0.10	31.00	6.00	1.85	0.25	•	•
MBQR0421L10R005-D-(C）	2.10	4.00	0.05	35.00	10.00	1.85	0.25	•	•
MBQR0421L10R010-D-(C）	2.10	4.00	0.10	35.00	10.00	1.85	0.25	•	•
MBQR0426L08R005-D-(C）	2.60	4.00	0.05	33.00	8.00	2.35	0.30	•	•
MBQR0426L08R010-D-(C）	2.60	4.00	0.10	33.00	8.00	2.35	0.30	•	•
MBQR0426L08R015-D-(C）	2.60	4.00	0.15	33.00	8.00	2.35	0.30	•	•
MBQR0426L12R005-D-(C）	2.60	4.00	0.05	37.00	12.00	2.35	0.30	•	•
MBQR0426L12R010-D-(C）	2.60	4.00	0.10	37.00	12.00	2.35	0.30	•	•
MBQR0426L12R015-D-(C）	2.60	4.00	0.15	37.00	12.00	2.35	0.30	•	•
MBQR0426L15R005-D-(C）	2.60	4.00	0.05	40.00	15.00	2.35	0.30	•	•
MBQR0426L15R010-D-(C）	2.60	4.00	0.10	40.00	15.00	2.35	0.30	•	•
MBQR0426L15R015-D-(C）	2.60	4.00	0.15	40.00	15.00	2.35	0.30	•	•
MBQR0431L10R005-D-(C）	3.10	4.00	0.05	35.00	10.00	2.80	0.50	•	•
MBQR0431L10R010-D-(C）	3.1	4	0.1	35	10	2.8	0.5	•	•
MBQR0431L10R015-D-(C）	3.1	4	0.15	35	10	2.8	0.5	•	•
MBQR0431L15R005-D-(C）	3.1	4	0.05	40	15	2.8	0.5	•	•
MBQR0431L15R010-D-(C）	3.1	4	0.1	40	15	2.8	0.5	•	•
MBQR0431L15R015-D-(C）	3.1	4	0.15	40	15	2.8	0.5	•	•
MBQR0431L20R005-D-(C）	3.1	4	0.05	45	20	2.8	0.5	•	•
MBQR0431L20R010-D-(C）	3.1	4	0.1	45	20	2.8	0.5	•	•
MBQR0431L20R015-D-(C）	3.1	4	0.15	45	20	2.8	0.5	•	•
MBQR0441L12R005-D-(C）	4.1	4	0.05	37	12	3.8	0.6	•	•
MBQR0441L12R010-D-(C）	4.1	4	0.1	37	12	3.8	0.6	•	•
MBQR0441L12R020-D-(C）	4.1	4	0.2	37	12	3.8	0.6	•	•
MBQR0441L16R005-D-(C）	4.1	4	0.05	41	16	3.8	0.6	•	•
MBQR0441L16R010-D-(C）	4.1	4	0.1	41	16	3.8	0.6	•	•
MBQR0441L16R020-D-(C）	4.1	4	0.2	41	16	3.8	0.6	•	•
MBQR0441L20R005-D-(C）	4.1	4	0.05	45	20	3.8	0.6	•	•
MBQR0441L20R010-D-(C）	4.1	4	0.1	45	20	3.8	0.6	•	•
MBQR0441L20R020-D-(C）	4.1	4	0.2	45	20	3.8	0.6	•	•
MBQR0441L25R015-D-(C）	4.1	4	0.15	50	25	3.8	0.6	•	•
MBQR0551L15R005-D-(C）	5.1	5	0.05	40	15	4.8	0.8	•	•
MBQR0551L15R010-D-(C）	5.1	5	0.1	40	15	4.8	0.8	•	•
MBQR0551L15R020-D-(C）	5.1	5	0.2	40	15	4.8	0.8	•	•
MBQR0551L20R005-D-(C）	5.1	5	0.05	45	20	4.8	0.8	•	•
MBQR0551L20R010-D-(C）	5.1	5	0.1	45	20	4.8	0.8	•	•
MBQR0551L20R020-D-(C）	5.1	5	0.2	45	20	4.8	0.8	•	•
MBQR0551L25R005-D-(C）	5.1	5	0.05	50	25	4.8	0.8	•	•
MBQR0551L25R010-D-(C）	5.1	5	0.1	50	25	4.8	0.8	•	•
MBQR0551L25R020-D-(C）	5.1	5	0.2	50	25	4.8	0.8	•	•
MBQR0551L30R020-D-(C）	5.1	5	0.2	55	30	4.8	0.8	•	•
MBQR0661L15R005-D-(C）	6.1	6	0.05	40	15	5.8	1	•	•
MBQR0661L15R010-D-(C）	6.1	6	0.1	40	15	5.8	1	•	•
MBQR0661L15R020-D-(C）	6.1	6	0.2	40	15	5.8	1	•	•
MBQR0661L20R005-D-(C）	6.1	6	0.05	45	20	5.8	1	•	•
MBQR0661L20R010-D-(C）	6.1	6	0.1	45	20	5.8	1	•	•
MBQR0661L20R020-D-(C）	6.1	6	0.2	45	20	5.8	1	•	•
MBQR0661L25R005-D-(C）	6.1	6	0.05	50	25	5.8	1	•	•
MBQR0661L25R010-D-(C）	6.1	6	0.1	50	25	5.8	1	•	•
MBQR0661L25R020-D-(C）	6.1	6	0.2	50	25	5.8	1	•	•
MBQR0661L30R005-D-(C）	6.1	6	0.05	55	30	5.8	1	•	•
MBQR0661L30R010-D-(C）	6.1	6	0.1	55	30	5.8	1	•	•
MBQR0661L30R020-D-(C）	6.1	6	0.2	55	30	5.8	1	•	•
MBQR0661L35R020-D-(C）	6.1	6	0.2	60	35	5.8	1	•	•
MBQR0771L25R010-D-(C）	7.1	7	0.1	54	25	6.8	1.2	•	•
MBQR0771L25R020-D-(C）	7.1	7	0.2	54	25	6.8	1.2	•	•
MBQR0771L35R010-D-(C）	7.1	7	0.1	64	35	6.8	1.2	•	•
MBQR0771L35R020-D-(C）	7.1	7	0.2	64	35	6.8	1.2	•	•
MBQR0771L40R020-D-(C）	7.1	7	0.2	69	40	6.8	1.2	•	•
MBQR0771L50R020-D-(C）	7.1	7	0.2	79	50	6.8	1.2	•	•

Coated Item	Color	Application	Performance parameter
AT12	Gold	Universal use for ≤HRC45 material; Stainless(austenitic&Martensite,303,304,316F...); Steel(Bearing steel，quenched steel，Cr-Mo stee， Mn steel...); Koveralloy; Superalloy;Copper; Iron castingPig iron；Nickel alloy,PMMA...	Nano Hardness:HV3500 Friction Coefficient: 0.3 Max.Temp：900°
JS25	Bronze	Universal use for ≤HRC60 material;Stainless(austenitic&Martensite,316L 303,304,321,316F,High Nickel Stainless...); Steel(Bearing steel,quenched steel,Cr-Mo stee,Mn steel...); Koveralloy; Superalloy;Copper; Iron castingPig iron；Nickel alloy..	Nano Hardness:HV4500, Friction Coefficient: 0.4 Max.Temp：1100°
AL25	Blue Grey	Special use for mild material ;Especial for Pure iron , special for mild steel & mild stainless,like 304.	Nano Hardness:HV3500, Friction Coefficient: 0.25 Max.Temp：800°
AD12	Black	Special use for viscous Material:;Aluminium，PMMA，Polyethylene.CFRP.	Nano Hardness:HV2200, Friction Coefficient: 0.2Max.Temp：400°
TZ25	Champagne Gold	Special use for titanium alloy.	Nano Hardness:HV4000Friction Coefficient: 0.55 Max.Temp：900°
AT25	Black	Carbon Steel,alloy steel,Bearing steel,quenched steel,Cr-Mo stee,Mn steel...；	Nano Hardness:HV3500, Friction Coefficient: 0.6 Max.Temp：900°
LC25	Rainbow	Special use for viscous Material:; Aluminium，PMMA，Polyethylene.CFRP.	Nano Hardness:HV5000 Friction Coefficient: 0.05 Max.Temp：450°
