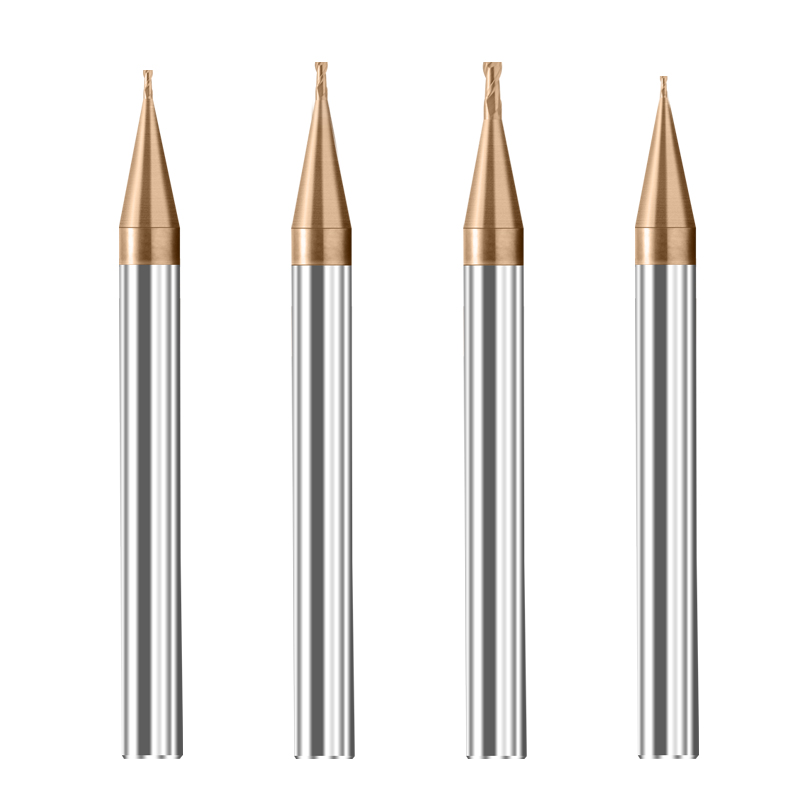

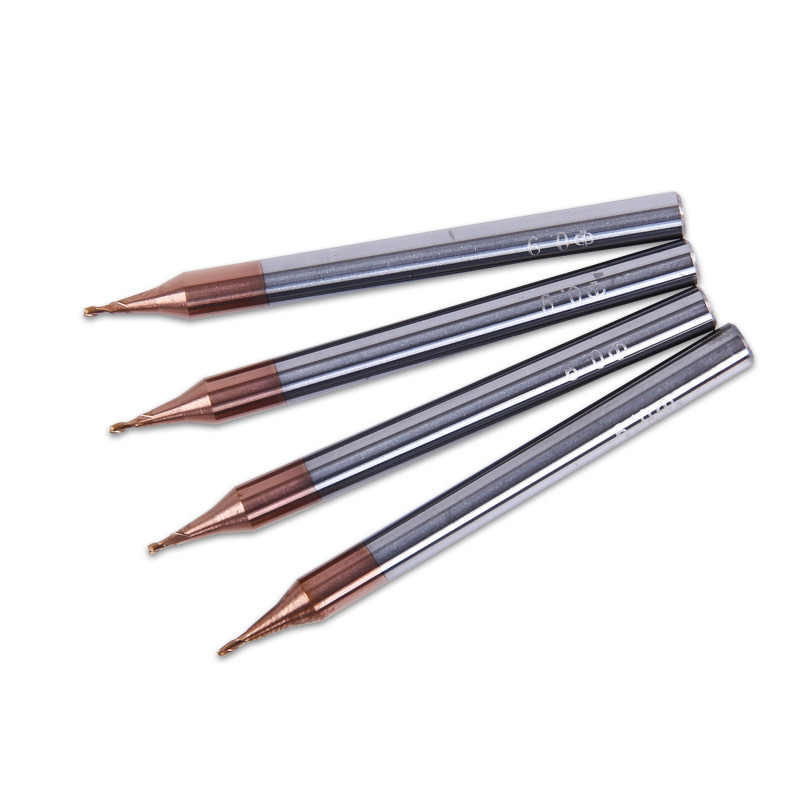

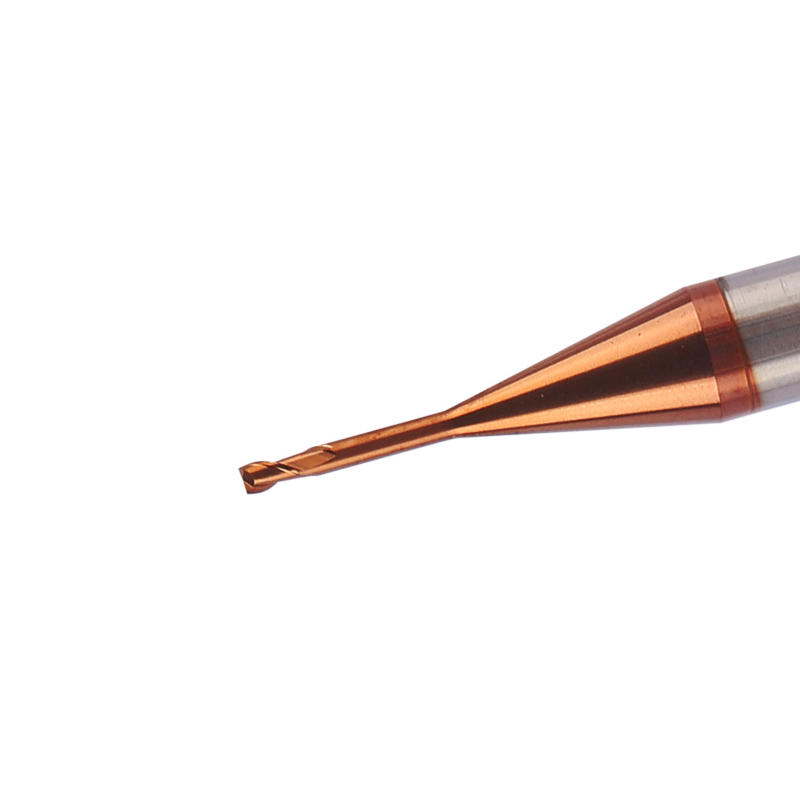

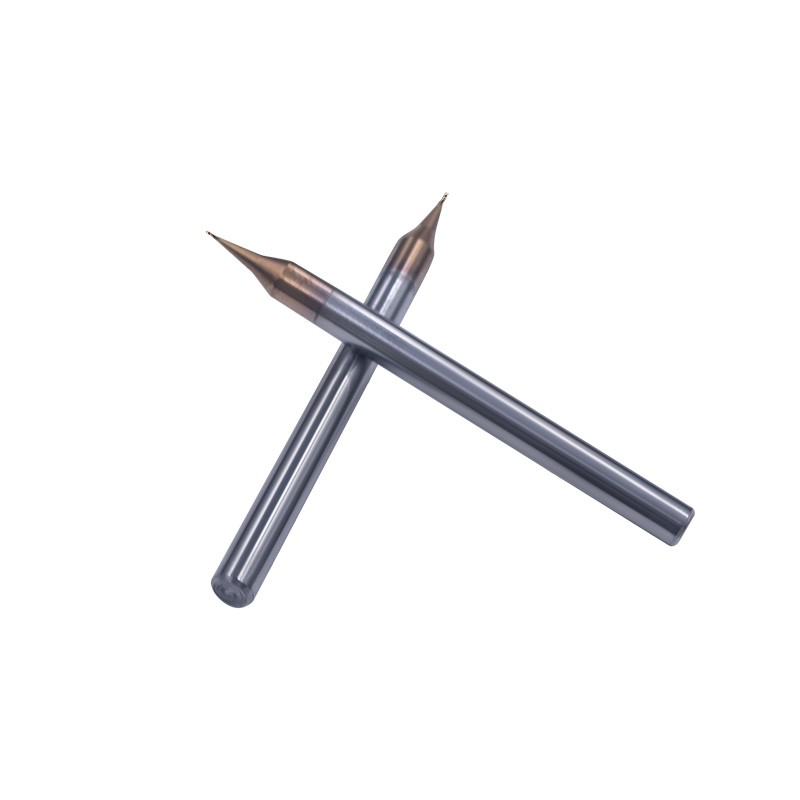

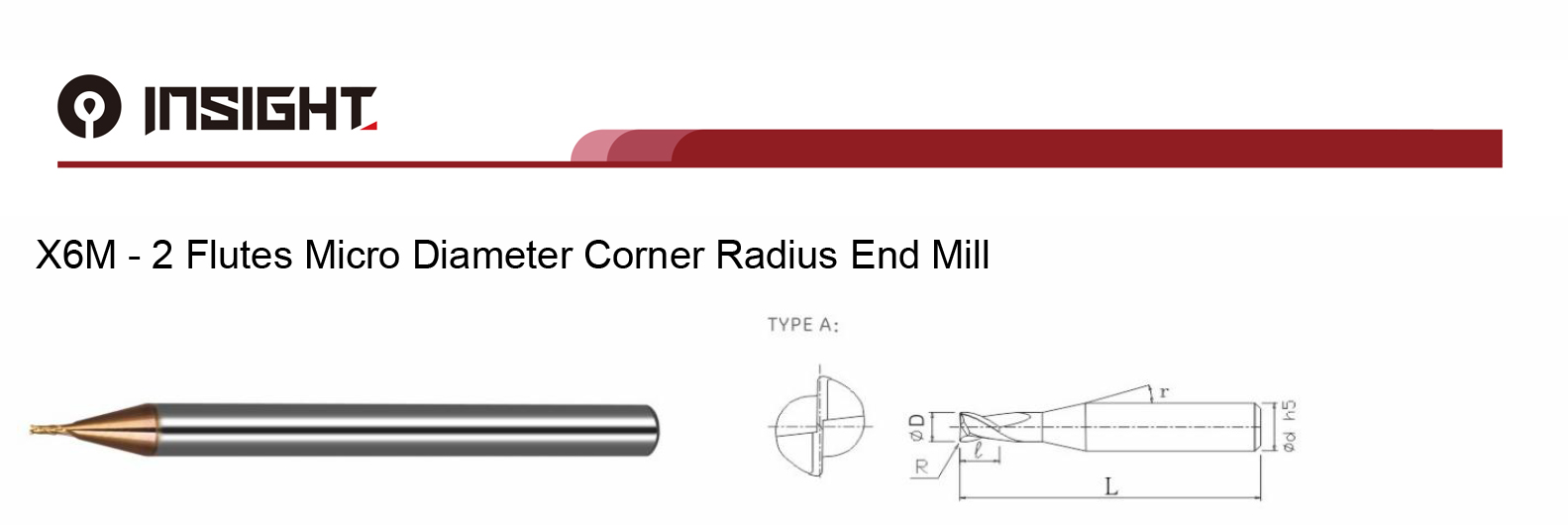

2 Flutes Micro Diameter Corner Radius End Mill

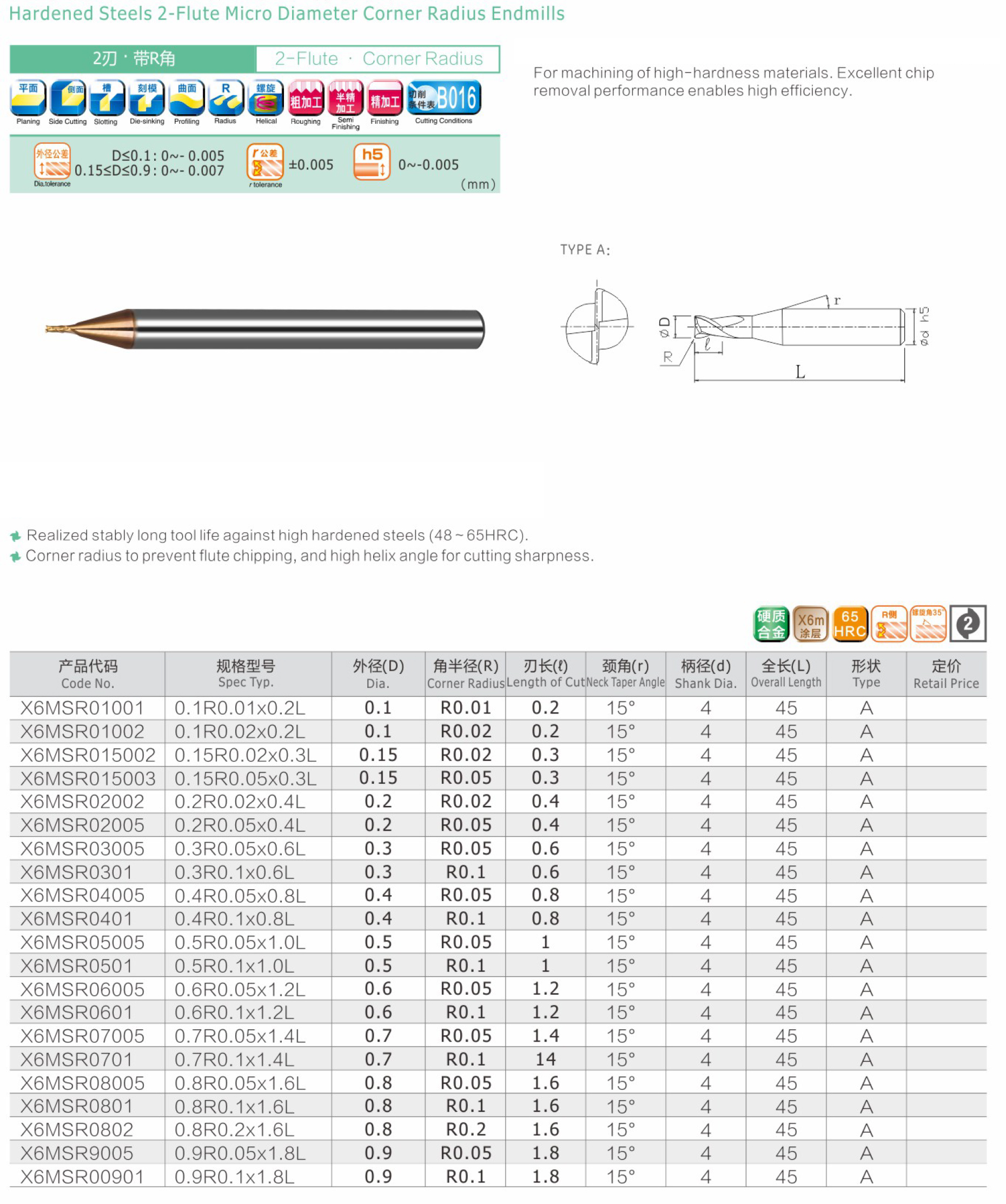

| Code No | Spec Typ. | Dia. | Corner Radius | Lenght of cut | Neck Taper Angle | Shank Dia. | Ovrall Length |
| X6MSR03005 | 0.3R0.05*0.6L | R0.05 | 0.3 | 0.6 | 4 | 45 | A |
| X6MSR04005 | 0.4R0.05*0.8L | 0.05 | 0.4 | 0.8 | 4 | 45 | A |
| X6MSR0401 | 0.4R0.1*0.8L | 0.1 | 0.4 | 0.8 | 4 | 45 | A |
| X6MSR05005 | 0.5R0.05*1.0L | 0.05 | 0.5 | 1 | 4 | 45 | A |
| X6MSR0501 | 0.5R0.1*1.0L | 0.1 | 0.5 | 1 | 4 | 45 | A |
| X6MSR06005 | 0.6R0.05*1.2L | 0.05 | 0.6 | 1.2 | 4 | 45 | A |
| X6MSR0601 | 0.6R0.1*1.2L | 0.1 | 0.6 | 1.2 | 4 | 45 | A |
| X6MSR07005 | 0.7R0.05*1.4L | 0.05 | 0.7 | 1.4 | 4 | 45 | A |
| X6MSR0701 | 0.7R0.1*1.4L | 0.1 | 0.7 | 1.4 | 4 | 45 | A |
| X6MSR08005 | 0.8R0.05*1.6L | 0.05 | 0.8 | 1.6 | 4 | 45 | A |
| X6MSR0801 | 0.8R0.1*1.6L | 0.1 | 0.8 | 1.6 | 4 | 45 | A |
| X6MSR0802 | 0.8R0.2*1.6L | 0.2 | 0.8 | 1.6 | 4 | 45 | A |
1.Round and smooth handle with precise chamfering, avoid scratches on the collet to prolong the service life.
2.Fine particle high temperature resistat, not afrid of high temperaturefast cutting and miiling, increase the durability, more chip removal smooth.
3.Adopt german cutter technology to avoid empty space, with it can avoid the workpiece when cutting with full edge.
4.Passivation technology, anti-breakage edge, extend the service life of the tool.
| Product Name | Micro Diameter Corner Radius End Mill |
| Tool Pype | Milling Cutter |
| Texture | Tungsten Carbide |
| Coating | Nano-coating |
| Flute | 2 Flute |
| HRC | 65° |
| Helix Angle | 35° |
| shank diameter | 4mm |
| Overall Length | 45mm |
| Neck Taper Angle | 15° |
Apply：CNC lathe center, CNC engraving and milling machine, High speed CNC models...
Work Material: Copper alloy, stainless steel, Other steel parts...
