Coating / material / threads requirment,contact : disir@insight-t.com
∞ UC Applicable Materials:aluminum,non -ferrous metals.non -metallic.(uncoated tools).
∞ BC Applicable Materials:carbon steei,alloy steel,quenchedandtempered,steel,sus,mold steel,titanium alloy,other steel,ductile iron.
ISO A60 Thread mills Single tooth

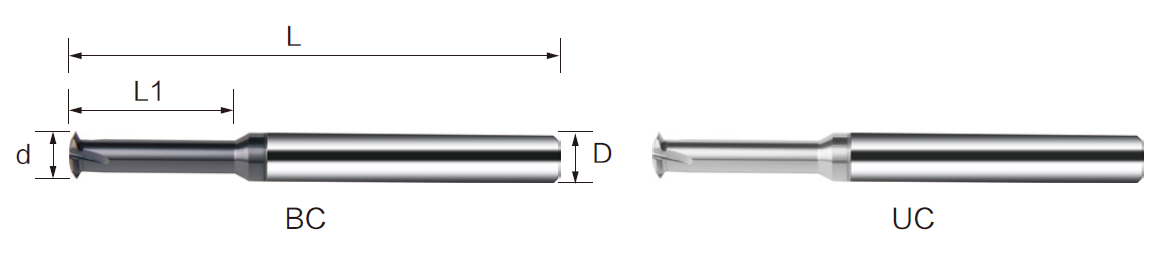

Model | PITCH | d | L1 | D | L | Flutes |
M0.8*0.2 | 0.2-0.225 | 0.55 | 1.6 | 4 | 50 | 3 |
M0.9*0.225 | 0.225-0.3 | 0.60 | 1.8 | 4 | 50 | 3 |
M1*0.25 | 0.25-0.35 | 0.73 | 2.3 | 4 | 50 | 3 |
M1.2*0.25 | 0.25-0.35 | 0.92 | 2.8 | 4 | 50 | 3 |
M1.4*0.3 | 0.3-0.4 | 1.05 | 3.2 | 4 | 50 | 3 |
M1.6*0.35 | 0.35-0.4 | 1.20 | 4.0 | 4 | 50 | 3 |
M2*0.4 | 0.4-0.5 | 1.54 | 4.4 | 4 | 50 | 3 |
M2.5*0.45 | 0.45-0.5 | 1.96 | 5 | 4 | 50 | 3 |
M3*0.5 | 0.5-0.6 | 2.4 | 7.5 | 4 | 50 | 3 |
M5*0.8 | 0.5-0.8 | 3 | 12 | 4 | 50 | 4 |
M4*0.7 | 0.5-0.8 | 3.15 | 10 | 4 | 50 | 3 |
M5*0.8 | 0.5-1.0 | 4 | 12 | 4 | 50 | 4 |
M5*0.8 | 0.5-1.0 | 4 | 13 | 6 | 50 | 3 |
M6*1.0 | 0.5-1.0 | 4.75 | 16 | 6 | 50 | 3 |
M8*1.25 | 0.5-1.25 | 5 | 16 | 6 | 50 | 4 |
M8*1.25 | 0.5-1.25 | 6 | 20 | 6 | 60 | 3 |
M10*1.5 | 0.8-1.5 | 7.9 | 25 | 8 | 60 | 4 |
M10*1.5 | 0.8-1.5 | 8 | 20 | 8 | 75 | 4 |
M12*1.5 | 1.25-2.0 | 9.4 | 28 | 10 | 75 | 4 |
M12*1.75 | 1.0-3.0 | 9.9 | 30 | 10 | 75 | 4 |
M12*2.0 | 1.25-2.0 | 10 | 28 | 10 | 75 | 4 |
M16*2.0 | 2.0-5.0 | 12 | 30 | 12 | 75 | 4 |
M16*2.0 | 1.0-5.0 | 12 | 30 | 12 | 83 | 4 |
M18*2.5 | 1.0-5.0 | 14 | 35 | 14 | 100 | 5 |
M22*3.0 | 2.0-5.0 | 16 | 40 | 16 | 100 | 5 |
ISO A55 Thread mills Single tooth
Model | PITCH | d | L1 | D | L | Flutes |
d3.0*A55 | 0.5-1.0 | 4.00 | 8.0 | 4 | 50 | 3 |
d4.0*A55 | 0.5-1.0 | 4.00 | 10.0 | 6 | 50 | 3 |
d5.0*A55 | 0.5-1.25 | 5.00 | 11.0 | 6 | 50 | 3 |
d5.0*A55 | 0.5-1.25 | 5.00 | 16.0 | 6 | 50 | 4 |
d6.0*A55 | 0.5-1.25 | 6.00 | 14.0 | 6 | 50 | 3 |
d7.9*A55 | 1.0-2.0 | 7.90 | 21.0 | 8 | 75 | 4 |
d9.9*A55 | 1.0-2.5 | 9.90 | 26.0 | 10 | 75 | 5 |

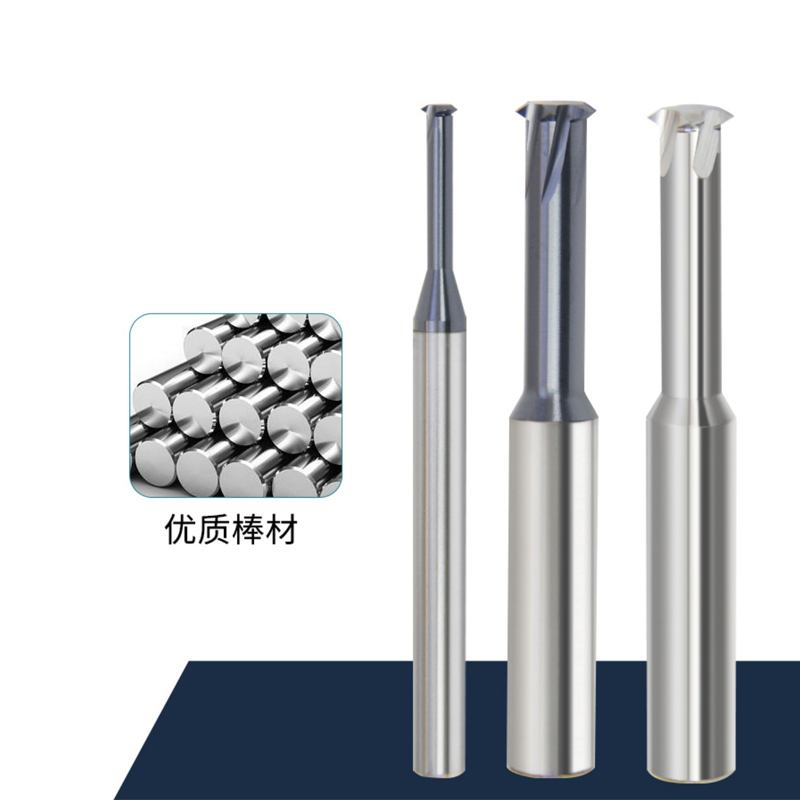

New ultra-fine particle bar is used Grinding high rigidity and wear resistance for cutting tool, service life make a strong guarantee.
Sharp edge, wear-resistance, with chip removal good, high processing efficiency, precision thread, durable higher usability.
Excellent new blade shape, smooth surface, not easy to collapse angle, enhance the tool rigidity, take into account the tool rigidity
and chip removal performance, make the cutting tool cutting and chip removal is more stable.
Round grinding and segment differtence, 1μ rouandness 2μ straight, linearity to achieve minium bounce.
High density coating technology, excellent wear resistance and effective heat insulation to ensure, the tool has a long service life.

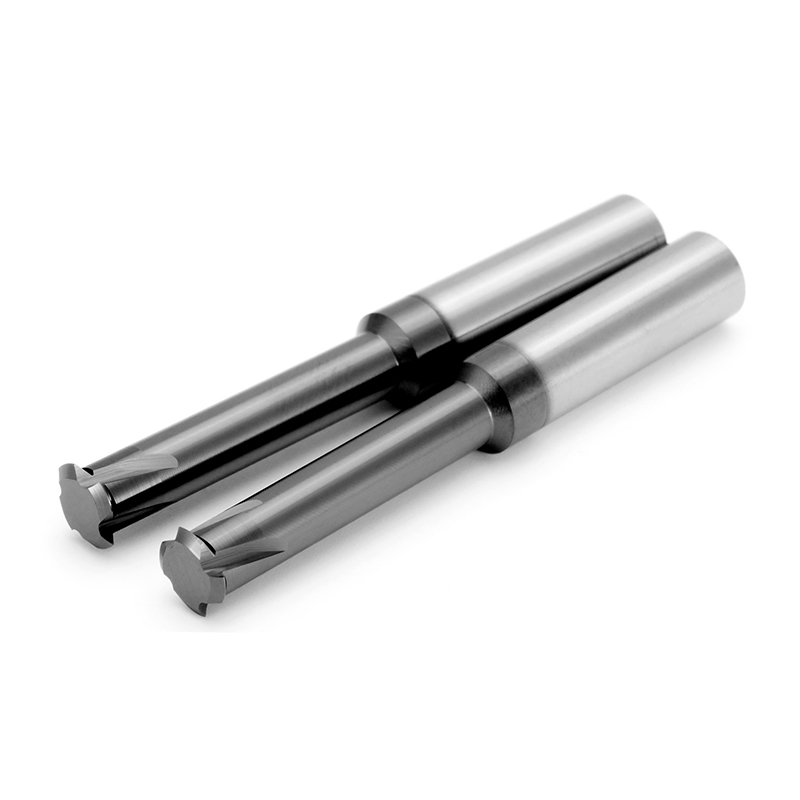

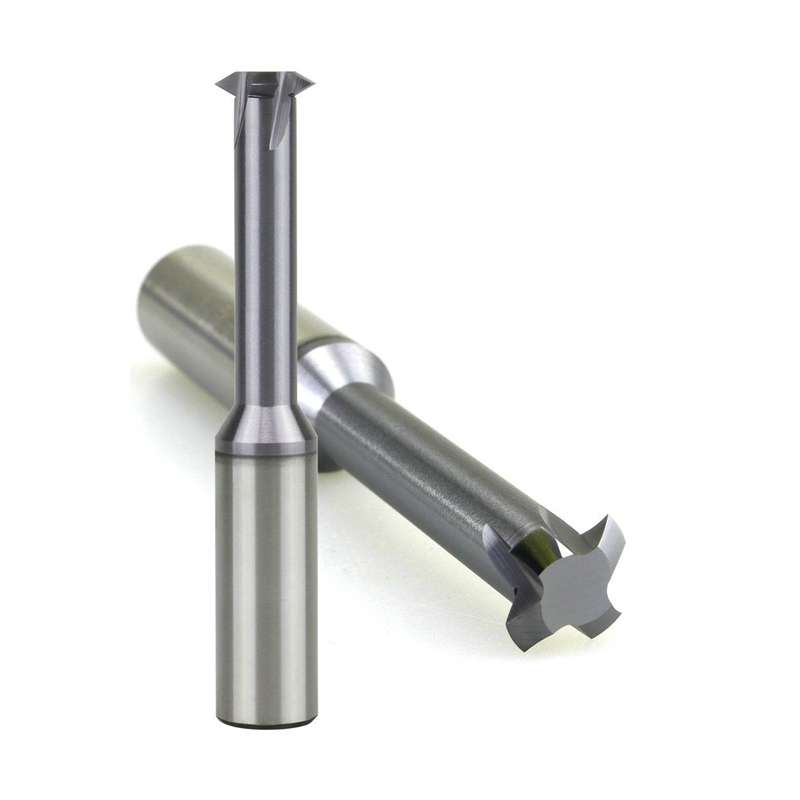

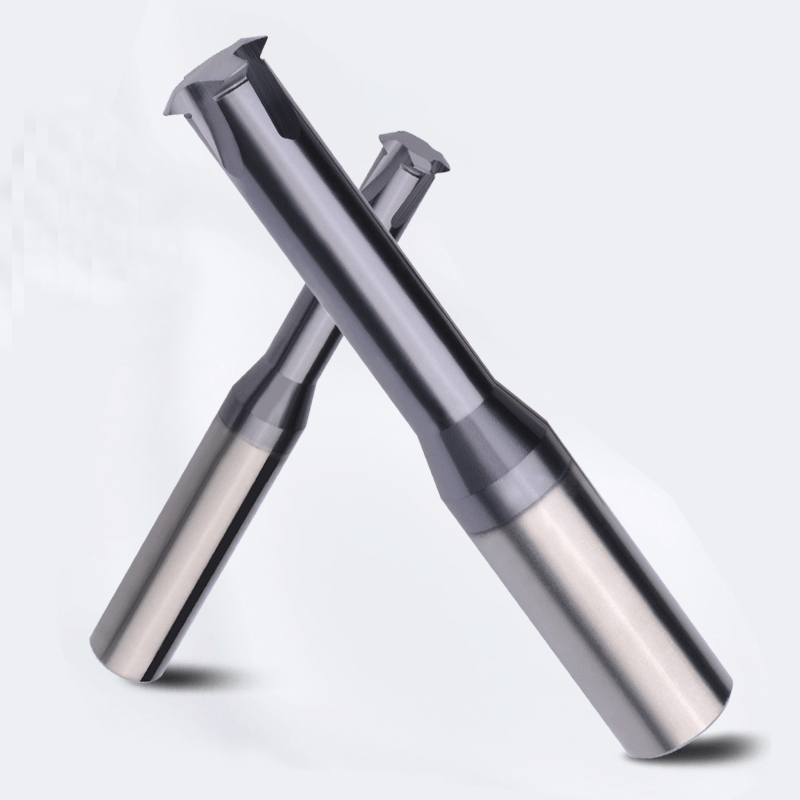

Product Name | Carbide Single Tooth Thread Milling Cutter |
Tool Type | Milling Cutter |
Flute | 2/3/4/6 Flute |
Materials | Tungsten |
Applicable Material | Carbon Steel, Alloy Steel, Prehardened Steel, Cast Iron, Stainlee Steels, Hardened Steel |
