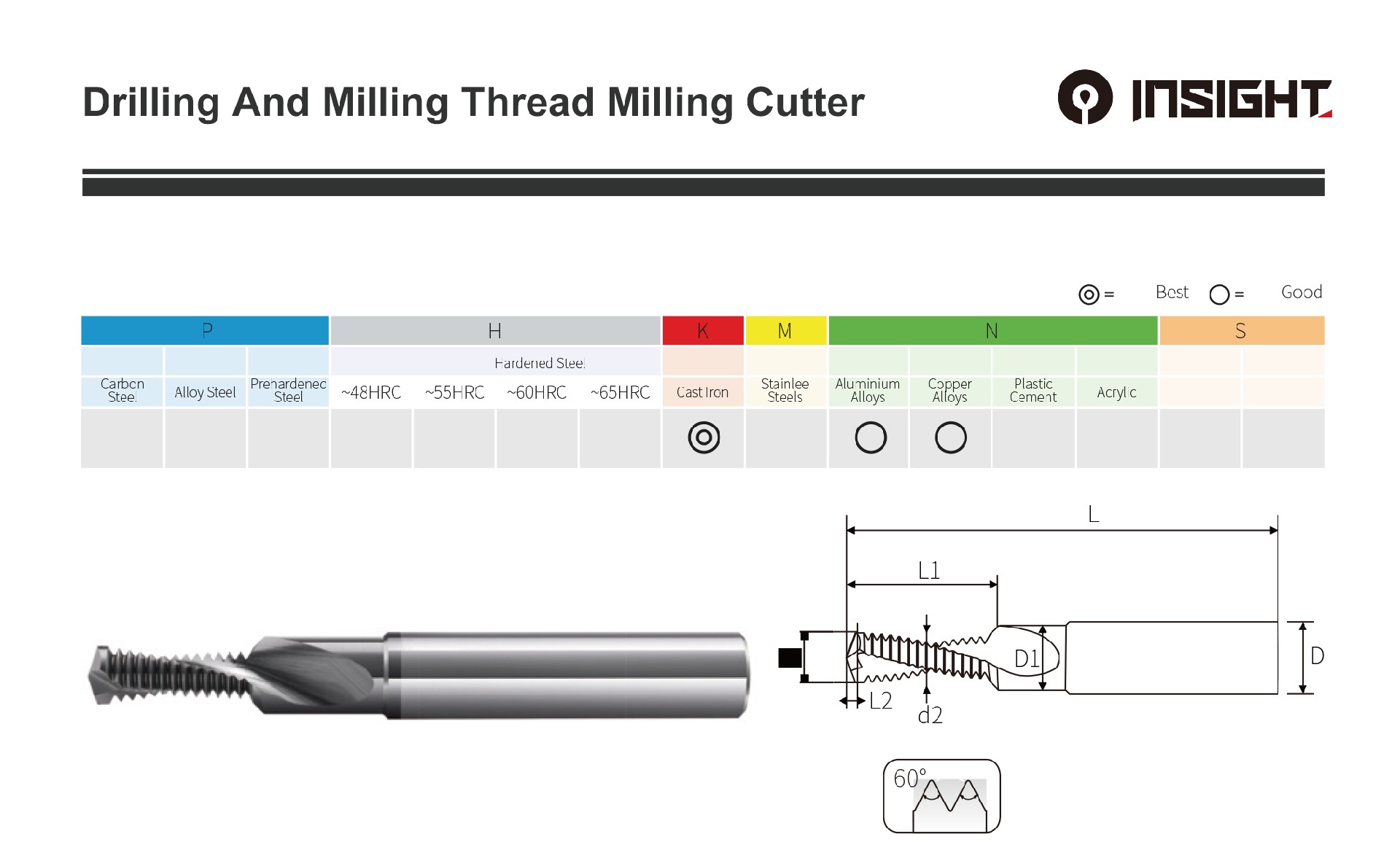

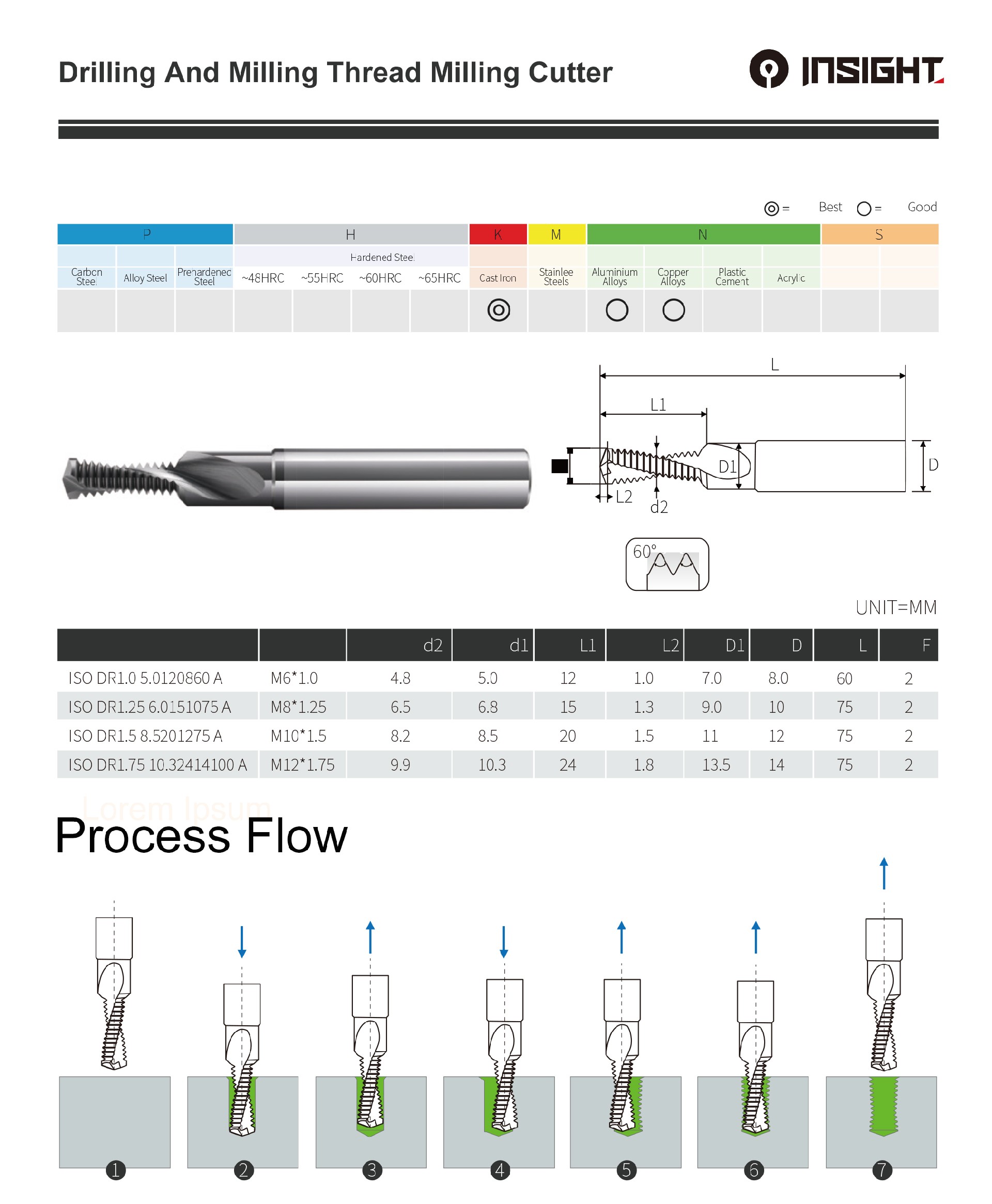

Order | Model | d2 | d1 | L1 | L2 | D1 | D | L | F |
ISO DR1.0 5.0120860 A | M6*1.0 | 4.8 | 5.0 | 12 | 1.0 | 7.0 | 8.0 | 60 | 2 |
ISO DR1.25 6.0151075 A | M8*1.25 | 6.5 | 6.8 | 15 | 1.3 | 9.0 | 10 | 75 | 2 |
ISO DR1.5 8.5201275 A | M10*1.5 | 8.2 | 8.5 | 20 | 1.5 | 11 | 12 | 75 | 2 |
ISO DR1.75 10.32414100 A | M12*1.75 | 9.9 | 10.3 | 24 | 1.8 | 13.5 | 14 | 75 | 2 |

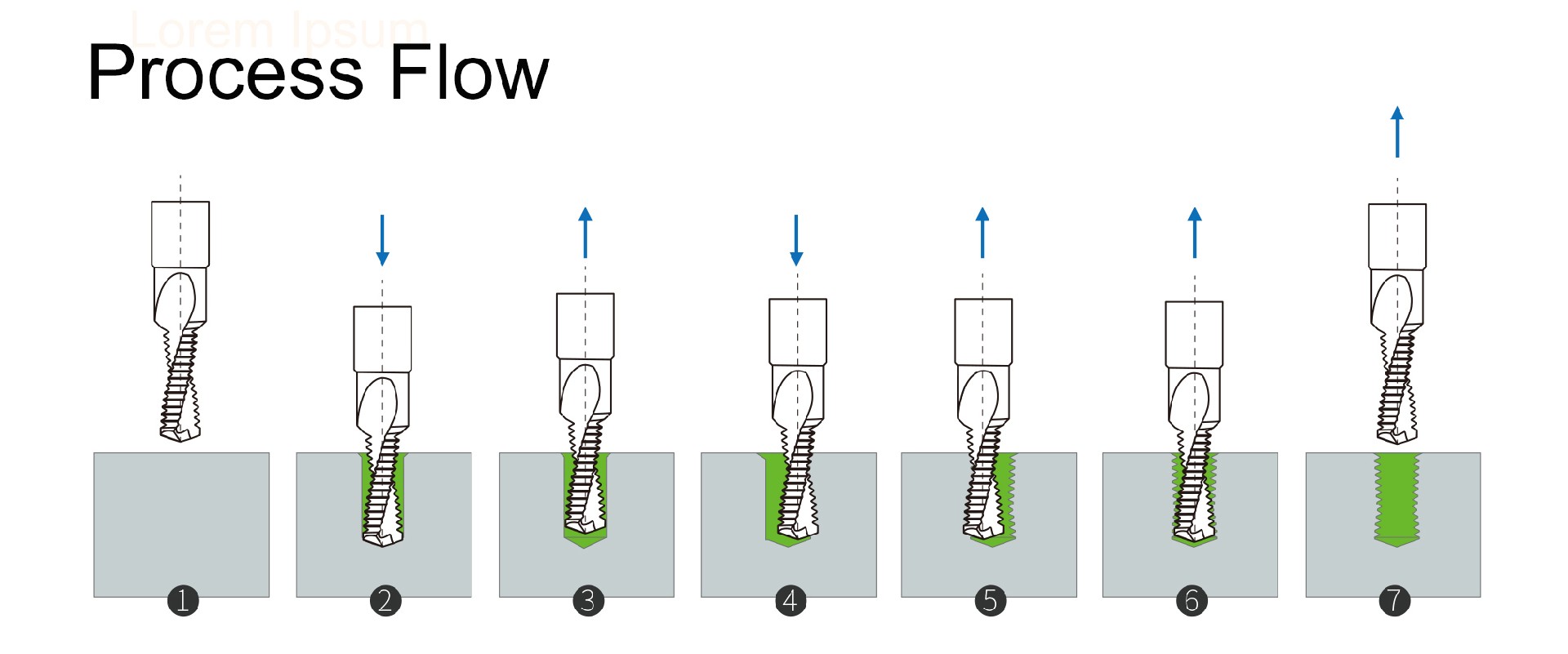

1.Suitable for mass production of the same specification, the three-in-one drilling
and milling thread milling cutter can realize bottom hole processing, chamfering and internal thread processing.
2.It can reduce non-processing time and improve production efficiency without changing the tool.
3.Suitable for non-ferrous metals such as copper alloys, aluminum alloys, etc.
4.We offer customized services, as long as you send us your drawings or samples.

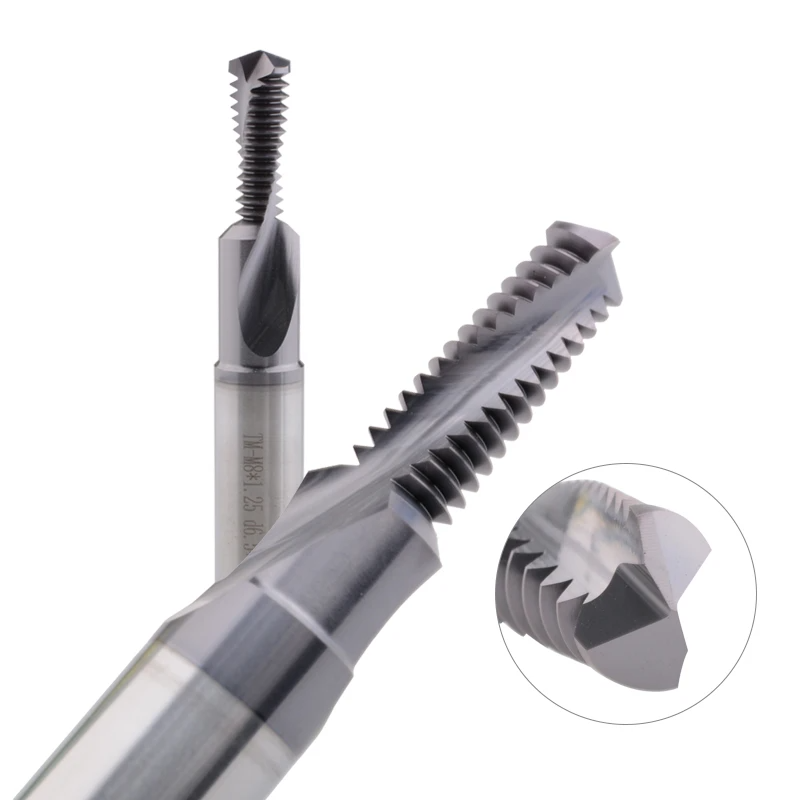

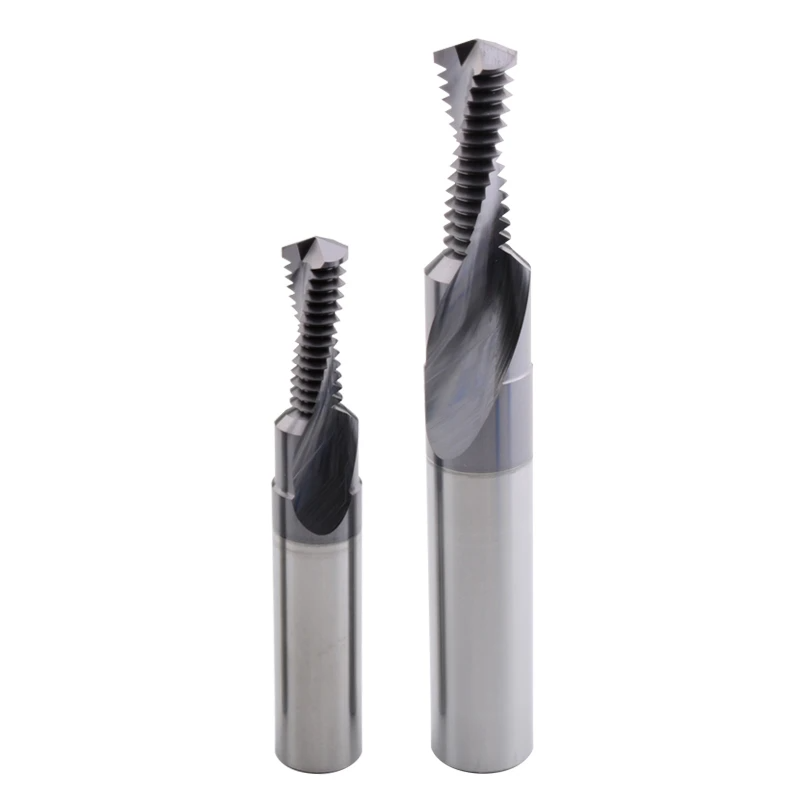

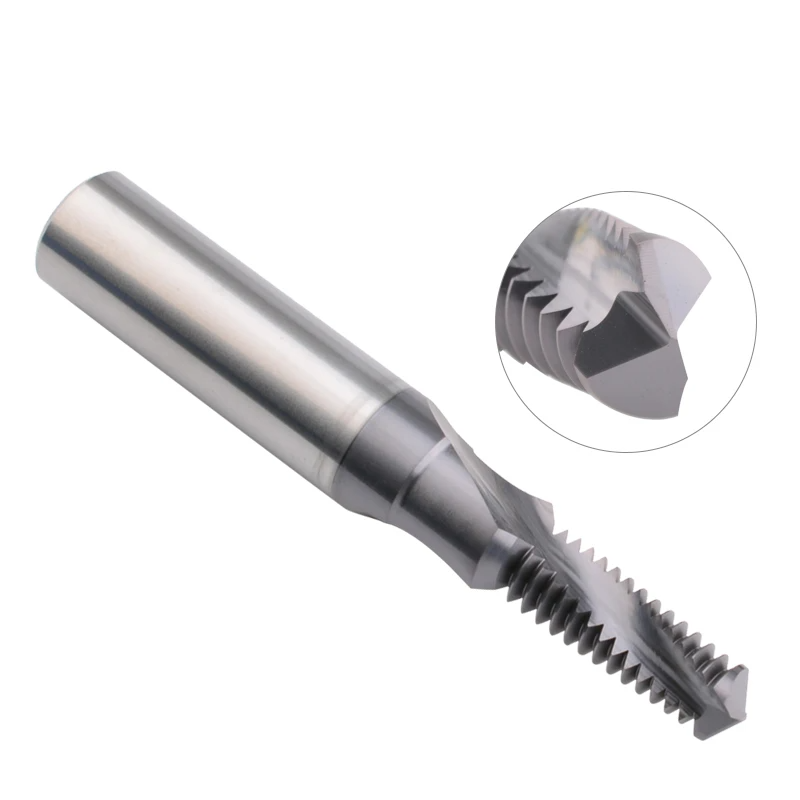

Product Name | Drilling and milling three-in-one thread milling cutter |
Flute | 2 Flutes |
Shank Diameter | 8-14mm |

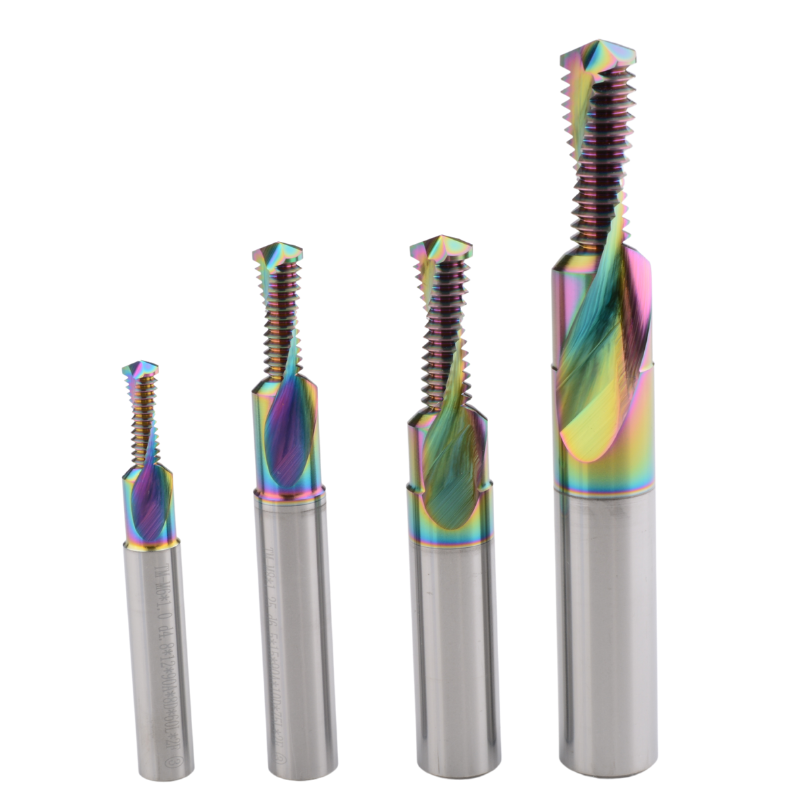

Color | Black/colorful |
Precision | High Precision |
Usage | CNC Machine Center |
Suitable for | Copper aluminum alloy, cast iron |
