OEM/ODM

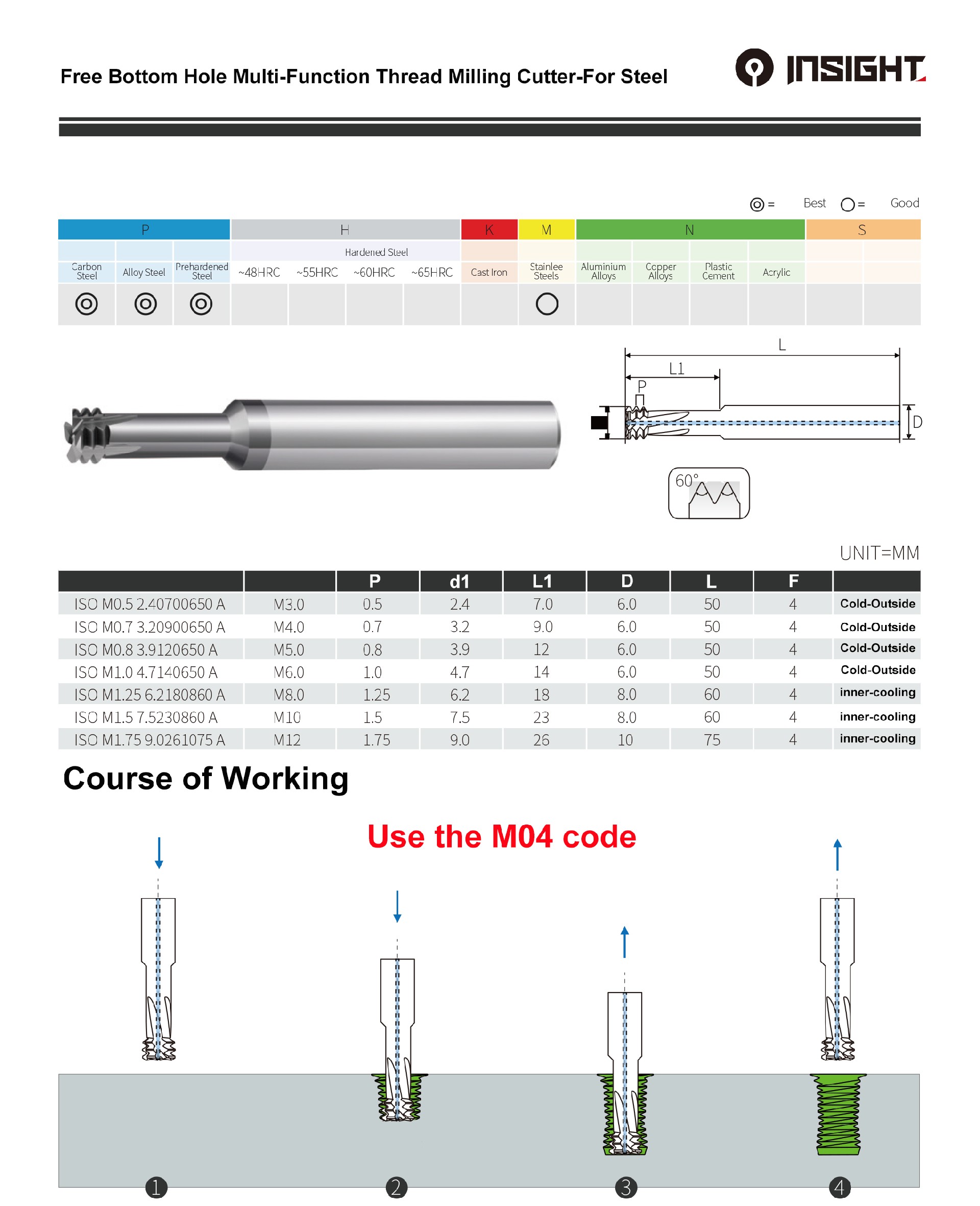

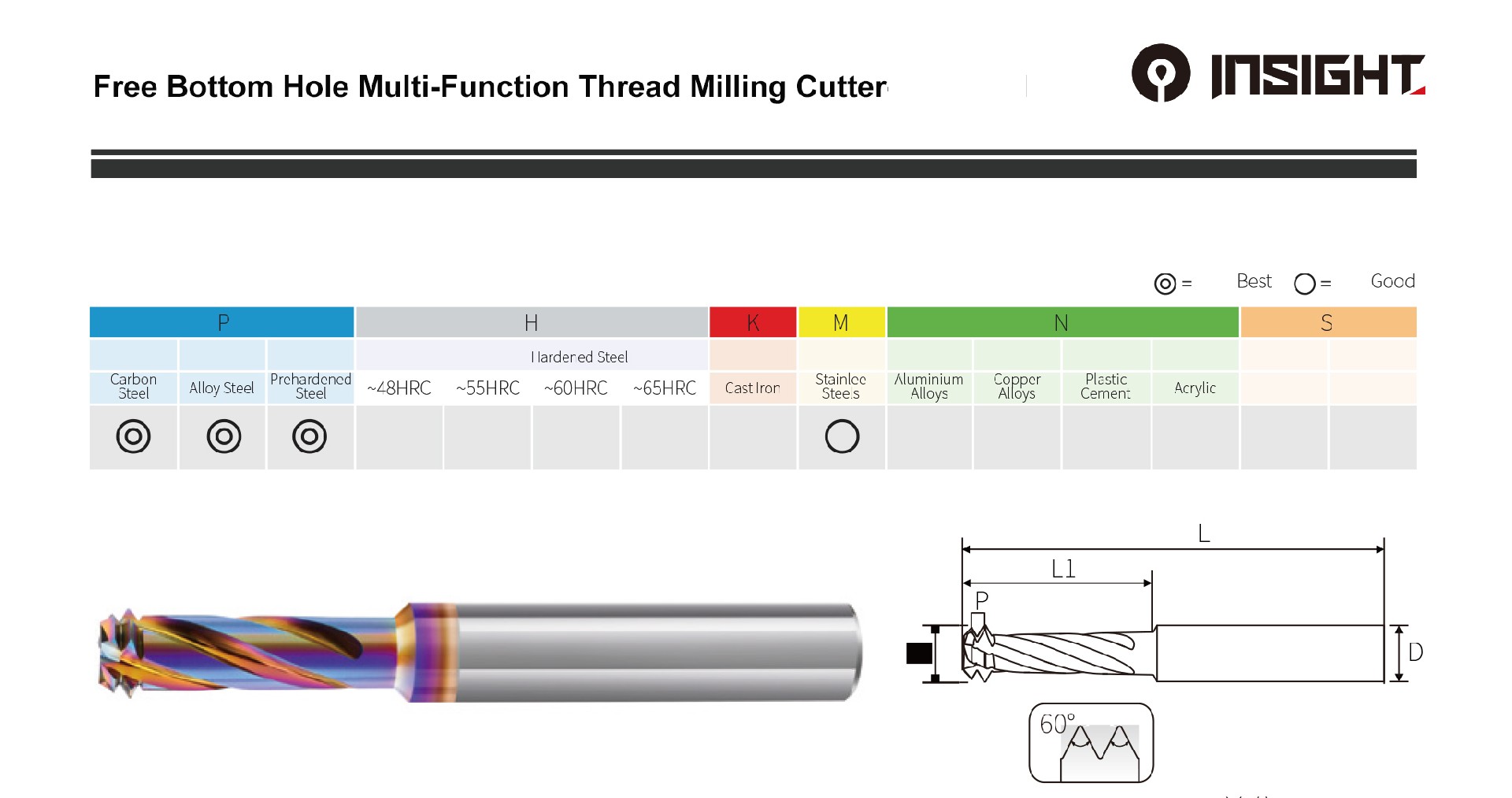

| P | d1 | L1 | D | L | F | ||
| ISO M0.35 1.150500450 DLC | M1.6 | 0.35 | 1.15 | 5.0 | 4.0 | 50 | 2 |
| ISO M0.4 1.50650450 DLC | M2.0 | 0.4 | 1.5 | 6.5 | 4.0 | 50 | 2 |
| ISO M0.45 1.90700450 DLC | M2.5 | 0.45 | 1.9 | 7.0 | 4.0 | 50 | 2 |
| ISO M0.5 2.40900650 DLC | M3.0 | 0.5 | 2.4 | 9.0 | 6.0 | 50 | 3 |
| ISO M0.7 3.2110650 DLC | M4.0 | 0.7 | 3.2 | 11 | 6.0 | 50 | 3 |
| ISO M0.8 3.9120650 DLC | M5.0 | 0.8 | 3.9 | 12 | 6.0 | 50 | 3 |
| ISO M0.8 3.9120650 DLC | M6.0 | 1.0 | 4.7 | 14 | 6.0 | 50 | 3 |
| ISO M1.25 6.5180860 DLC | M8.0 | 1.25 | 6.5 | 18 | 8.0 | 60 | 4 |
| ISO M1.5 7.8230860 DLC | M10 | 1.5 | 7.8 | 23 | 8.0 | 60 | 4 |
| ISO M1.75 9.6261075 DLC | M12 | 1.75 | 9.6 | 26 | 10 | 75 | 4 |

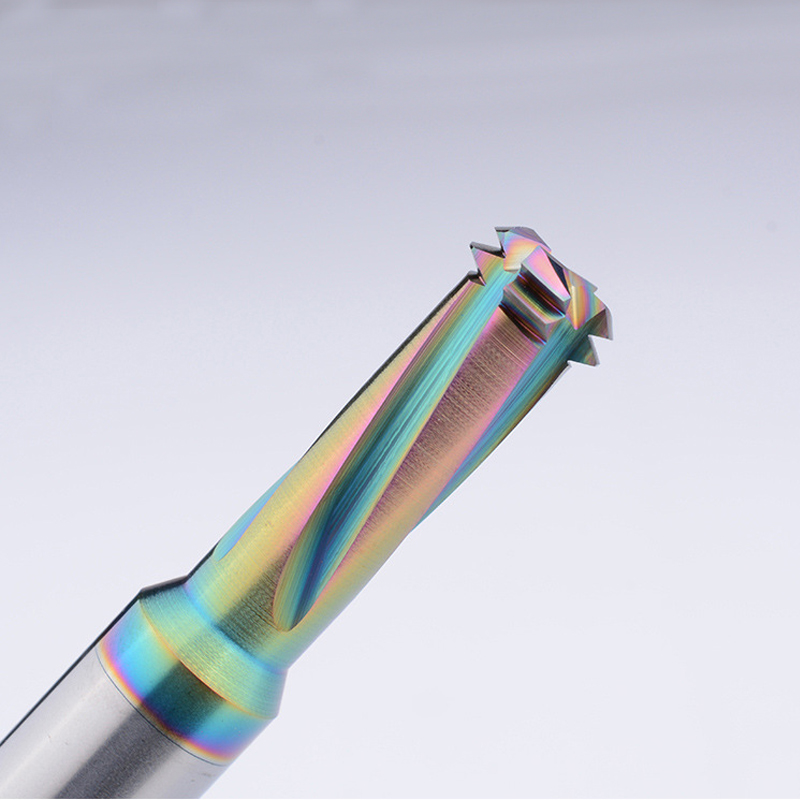

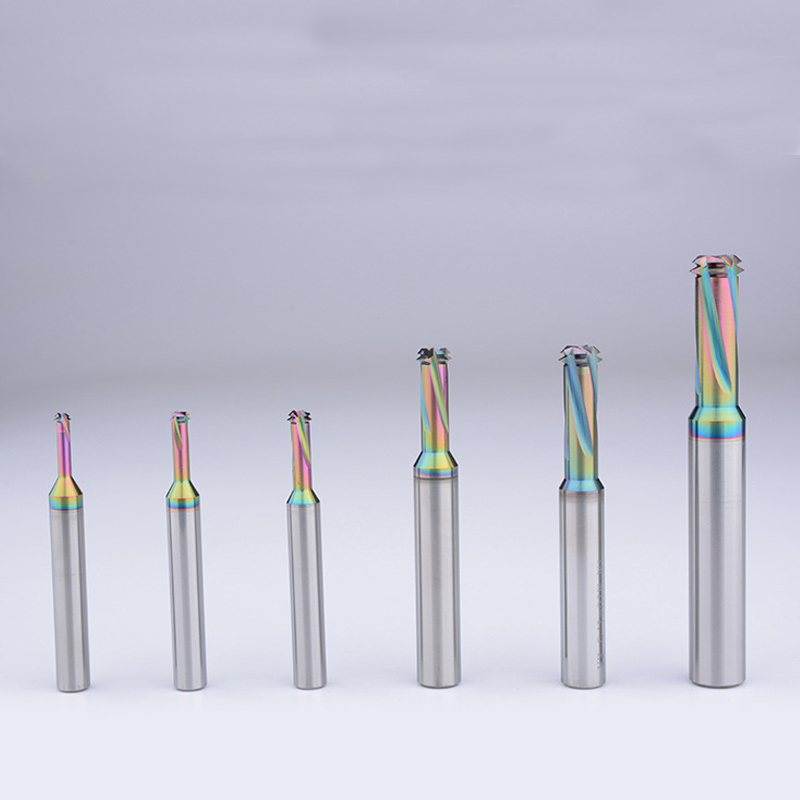

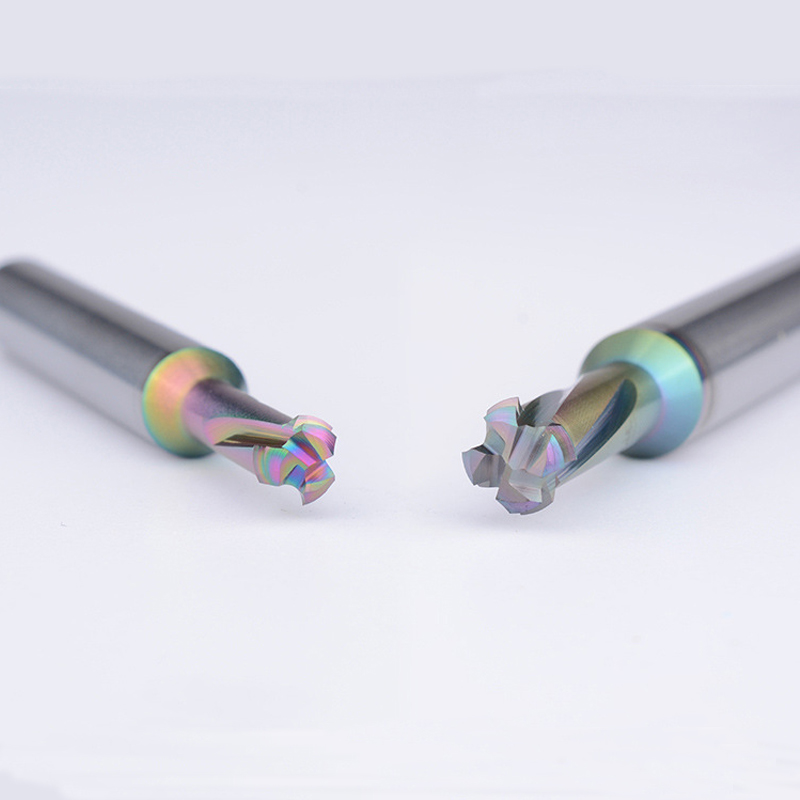

Made of high-quality imported tungsten steel, better wear resistance.
Three-in-one multi-function, no need to change the tool. Save money and effort.
High precision thread, large chip removal and high efficiency milling teeth make the workpiece more shiny and burr free.

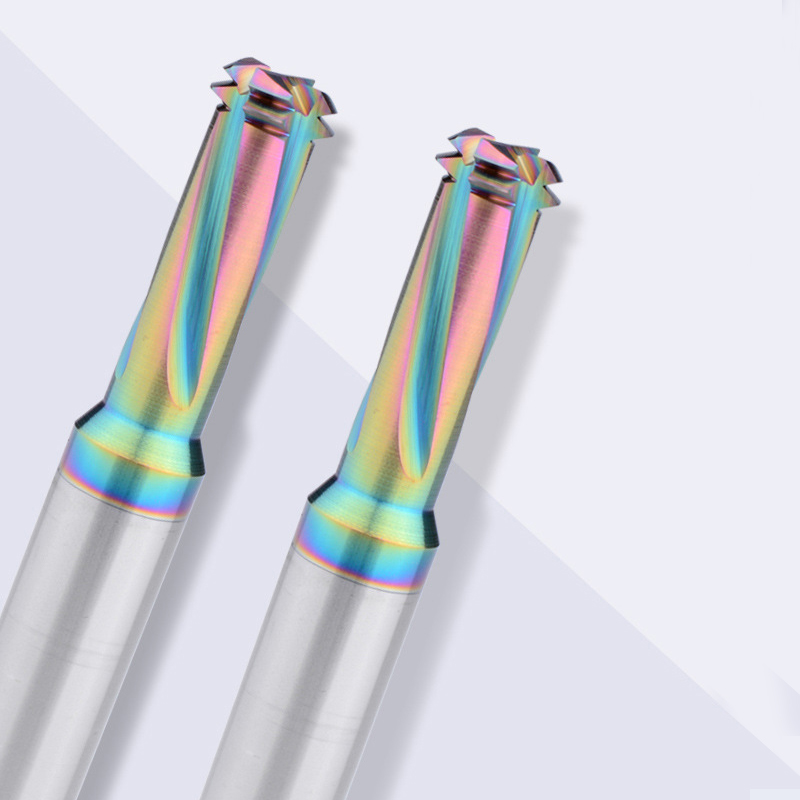

DLC Colorful gold diamond coating, The coating has multi-layer nanostructure, heat insulation and wear-resistant,
protecting the cutting edge of the milling cutter, and cutting is more stable.
| Parameter Configuration | Information |
| Product Name | Free Bottom Hole Multi Thread Milling Cutter |
| Tool Type | End Mill |
| Material | Tungsten Carbide |
| Number of Flutes | 3-4 Flutes |
| Coat | DLC colorful gold diamond coating |
| Hardness | 5000-7000 |
| Film thickness | 0.2-0.5um |
Friction Coefficient | 0.08-0.15 |
| Apply | Aluminum, Copper, Glass Fiber |
