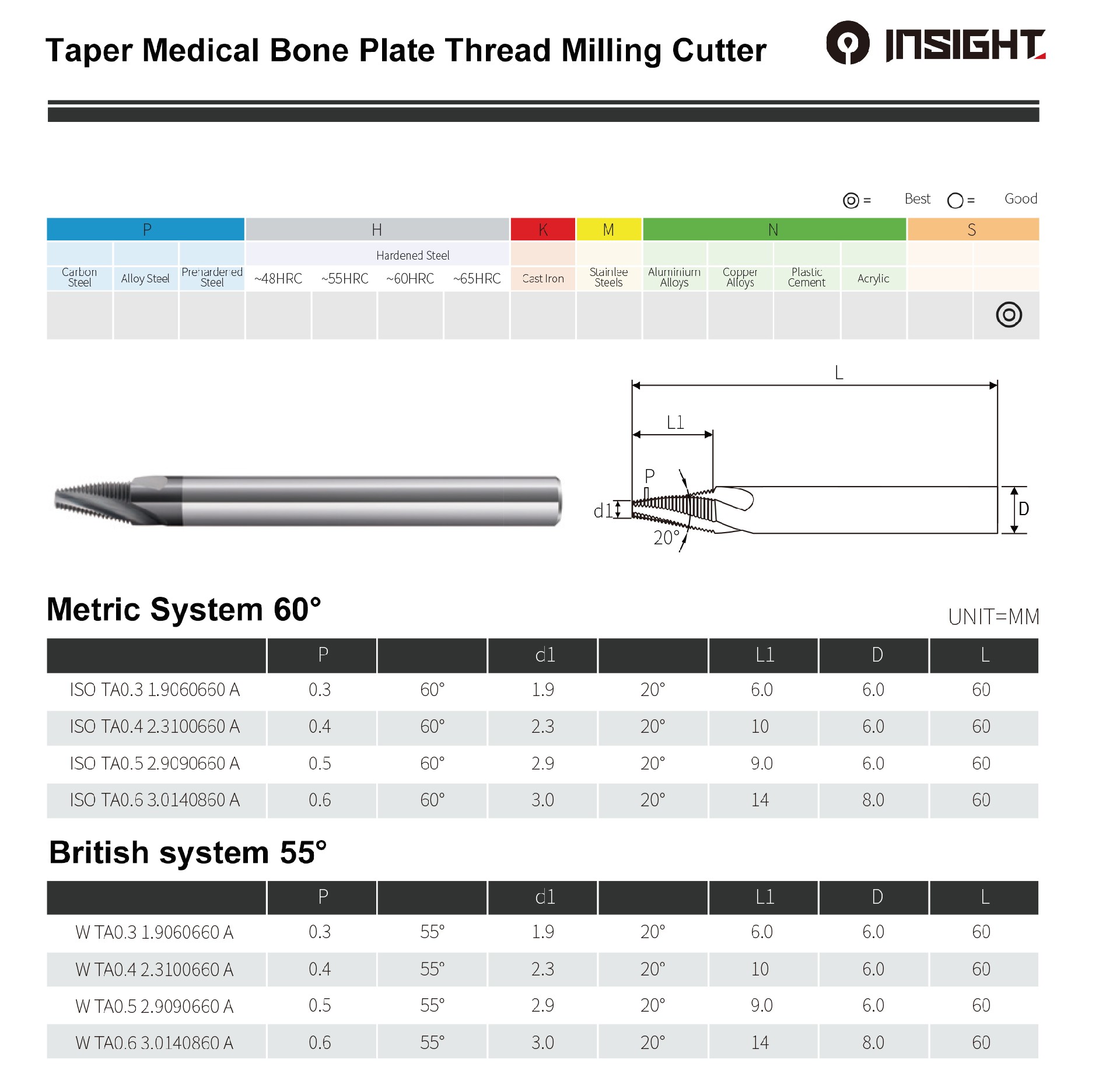

Metric Sustem 60° | |||||||
Order Reference | P | Angle | d1 | L1 | D | L | |
ISO TA0.3 1.9060660 A | 0.3 | 60° | 1.9 | 20° | 6.0 | 6.0 | 60 |
ISO TA0.4 2.3100660 A | 0.4 | 60° | 2.3 | 20° | 10 | 6.0 | 60 |
ISO TA0.5 2.9090660 A | 0.5 | 60° | 2.9 | 20° | 9.0 | 6.0 | 60 |
ISO TA0.6 3.0140860 A | 0.6 | 60° | 3.0 | 20° | 14 | 8.0 | 60 |
British Systen 55° | |||||||
W TA0.3 1.9060660 A | 0.3 | 55° | 1.9 | 20° | 6.0 | 6.0 | 60 |
W TA0.4 2.3100660 A | 0.4 | 55° | 2.3 | 20° | 10 | 6.0 | 60 |
W TA0.5 2.9090660 A | 0.5 | 55° | 2.9 | 20° | 9.0 | 6.0 | 60 |
W TA0.6 3.0140860 A | 0.6 | 55° | 3.0 | 20° | 14 | 8.0 | 60 |
Cutting without burrs sharp cutting
Selection of high-quality tungsten steel high efficiency, high wear resistance

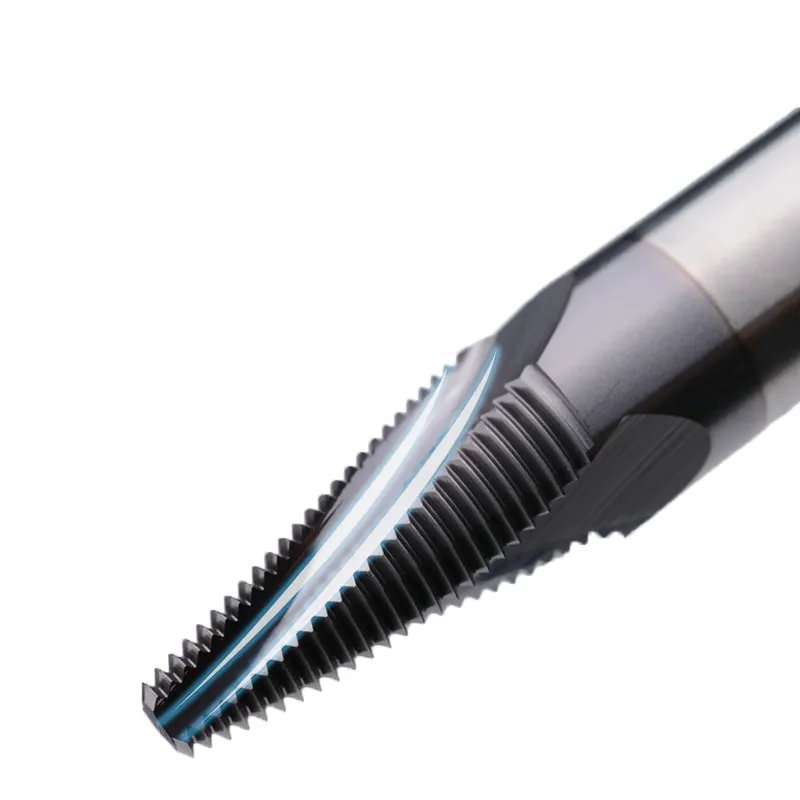

New cutting edge design inclined multi-row 4 large chip flutes
Coating process excellent wear resistance and effective heat insulation
Taper design good sealing, suitable for a variety of materials
Parameter Configuration | Information |

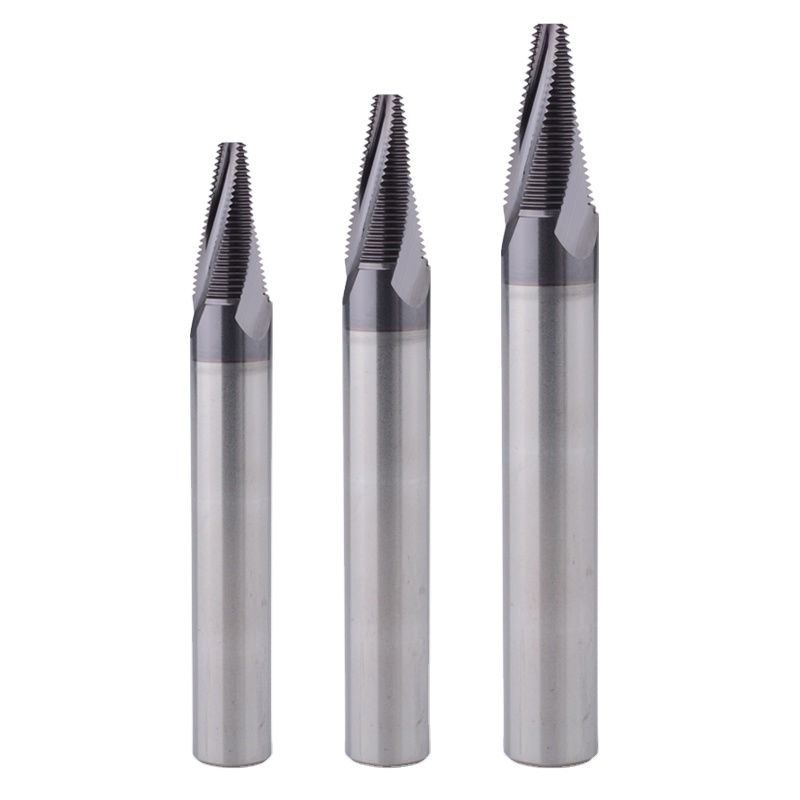

Product Name | Taper Thread Milling Cutter |
HRC | 45/55/60/65 Degree |
Precision | High Precision |
Controlling Mode | High Precision |
Angle of tooth | 60° |
Blade Diameter | 5.4-14.6mm |
Thread depth | 9.4-22mm |
Taper | 1/16 |
Application: aluminum, copper, cast iron, stainless steel, alloy steel, tool steel, titanium alloy, etc.
