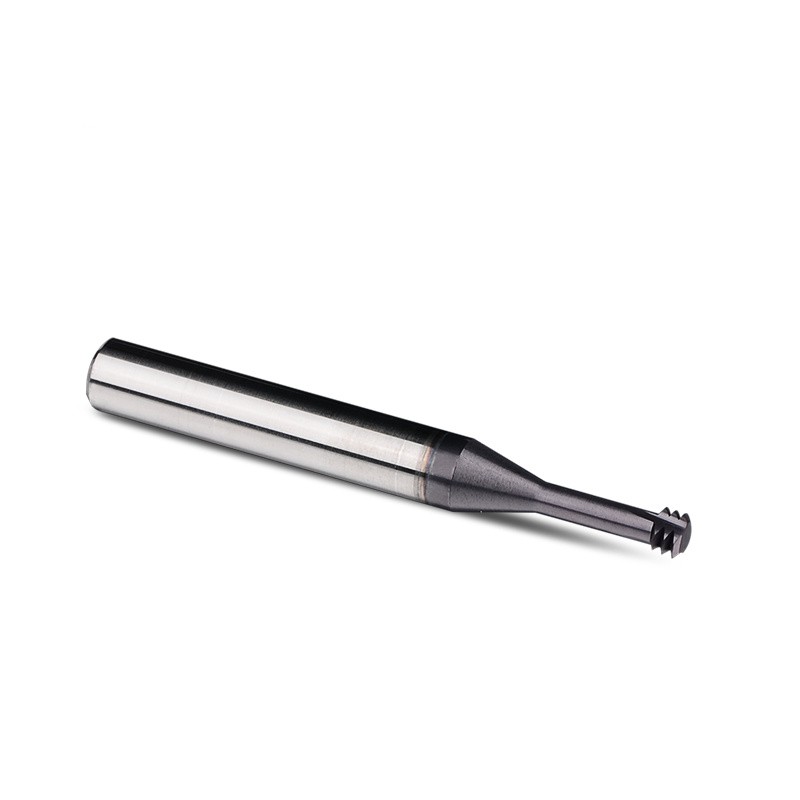

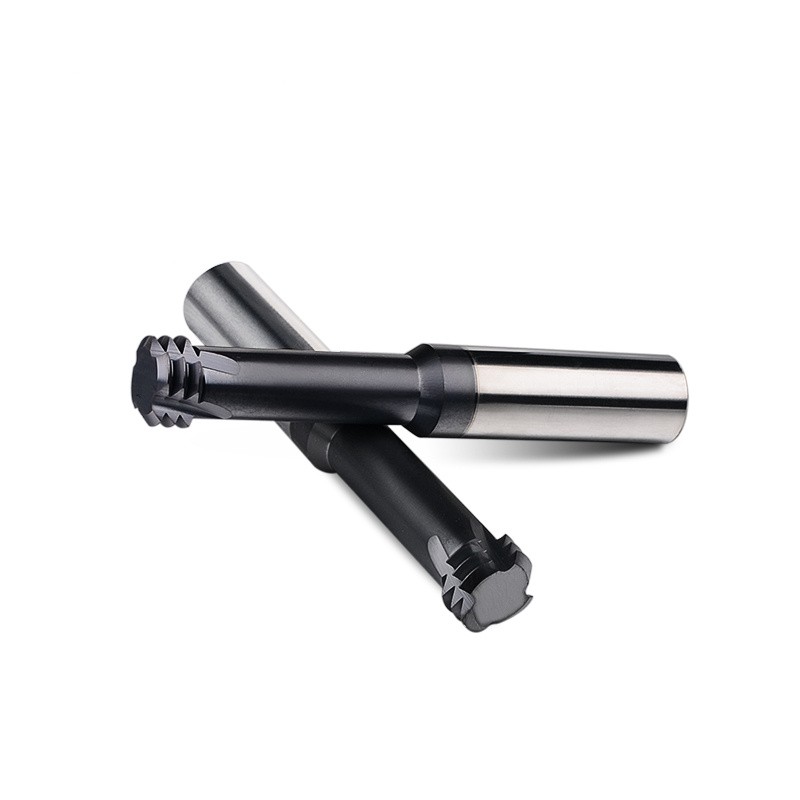

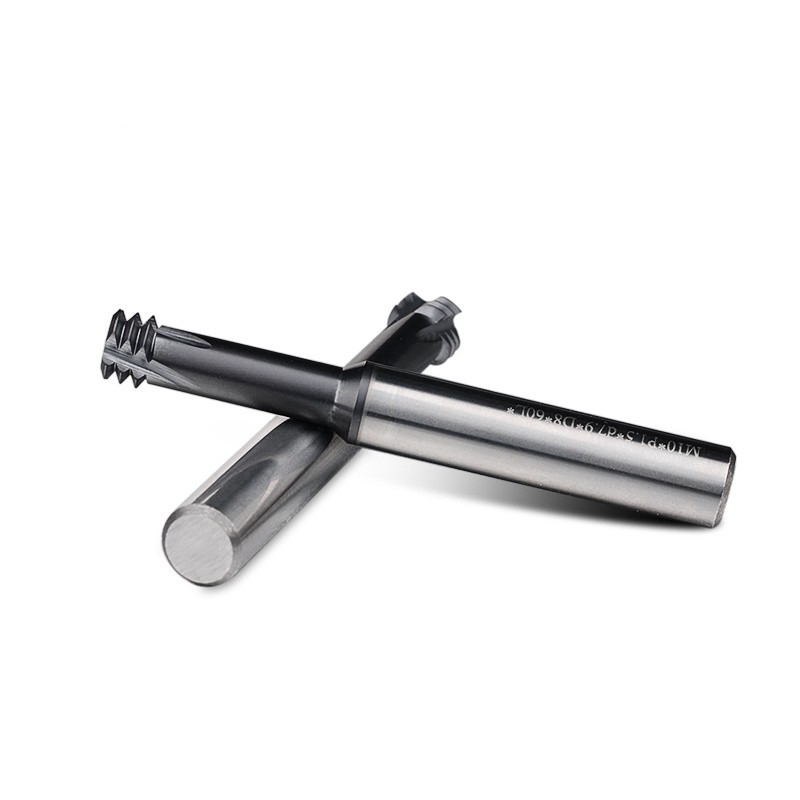

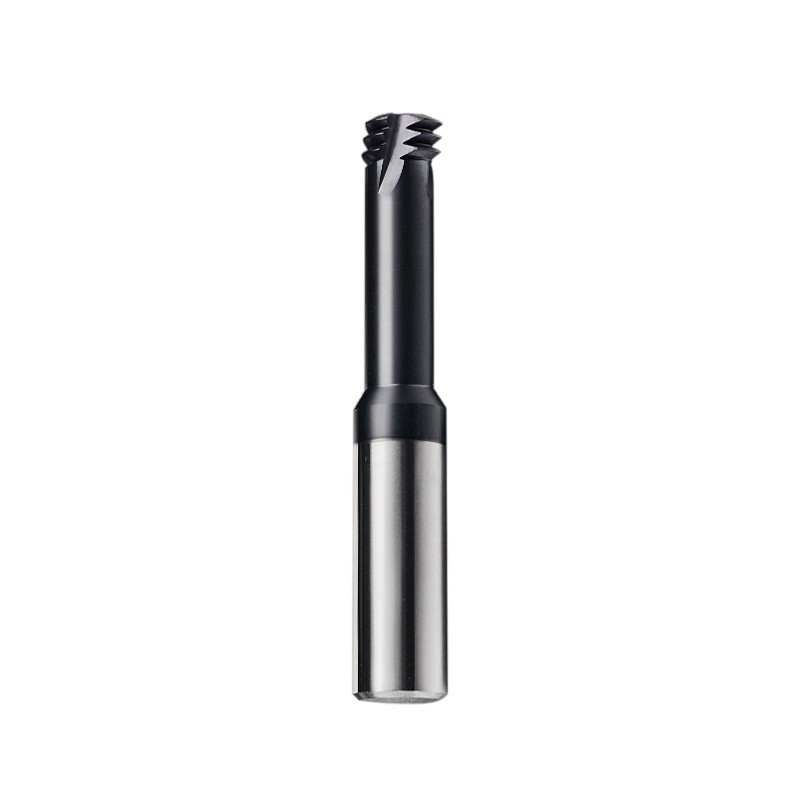

ISO Carbide Three Teeth Threading Mill

Home > Product > Three Tooth

Three Teeth

Model Number

Three Teeth

Size

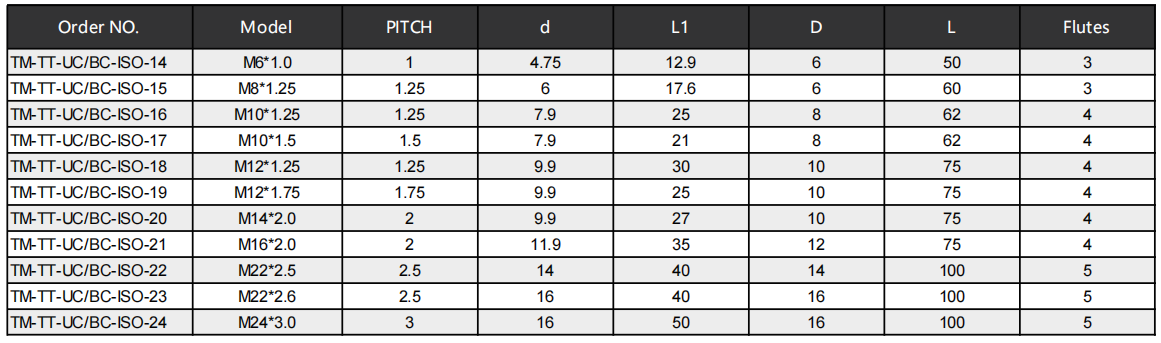

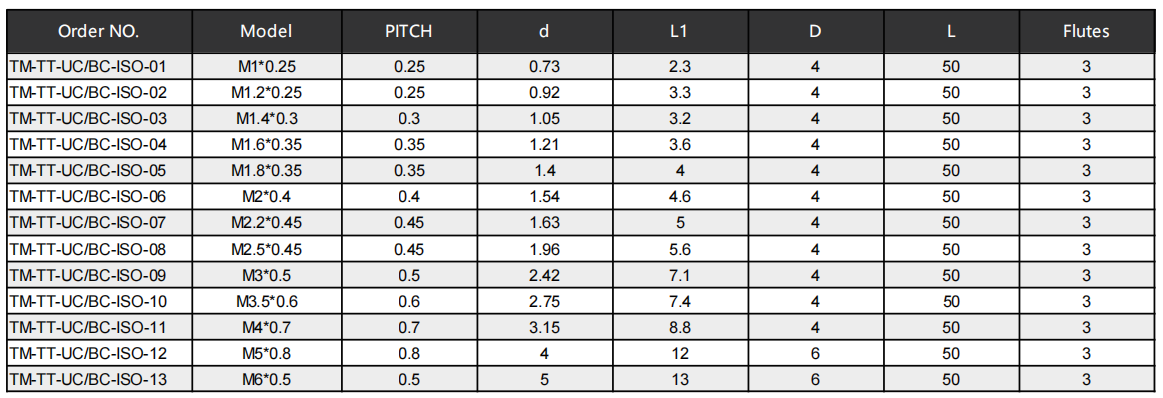

M1*0.25/M1.2*0.25/M1.4*0.3/M1.6*0.35/M1.8*0.35/M2*0.4/M2.2*0.45/M2.5*0.45/M3*0.5/M3.5*0.6/M4*0.7/M5*0.8/M6*0.5/M8*1.25/M10*1.5/M12*1.75/M14*2.0/M16*2.0/M22*2.5/M22*2.6/M24*3.0

Customization

Please send your drawing design to insight002@insight-t.com

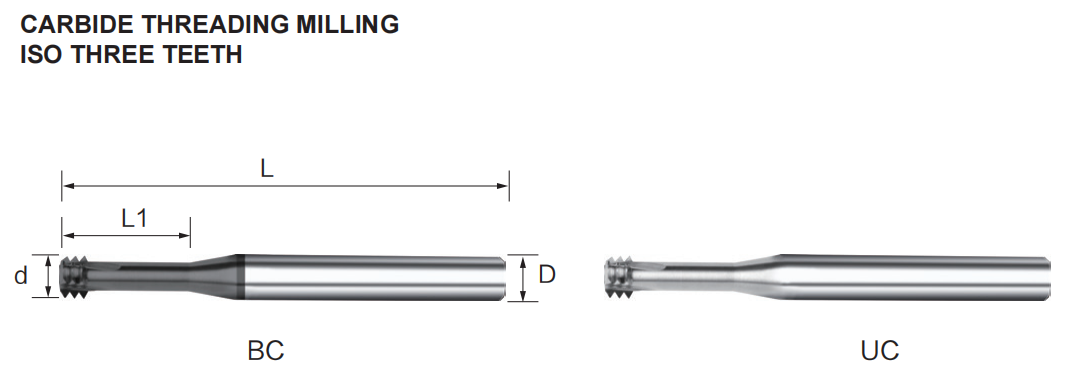

Quick Details

Pitch: 1.0-3.0mm
Cutting Diameter: 0.73-16.0mm
Shank Diameter: 4.0-16.0mm
Cutting Length: 2.3-50.0mm
Overall Length: 50-100mm

Inquiry Download

DESCRIPTION


Features:

Can work under high cutting speeds, resulting in shorter machining times
Supports threads as small as ISO M1 x 0.25, and 0-80 UNF
The thread depth can be up to 4 x Thread Diameter
Multi flutes: 3-5 flutes
Suitable for CARBON STEEI,ALLOY STEEL,QUENCHEDANDTEMPERED STEEL,SUS,MOLD STEEL,TITANIUM ALLOY，
OTHER STEEL,DUCTILE IRON
