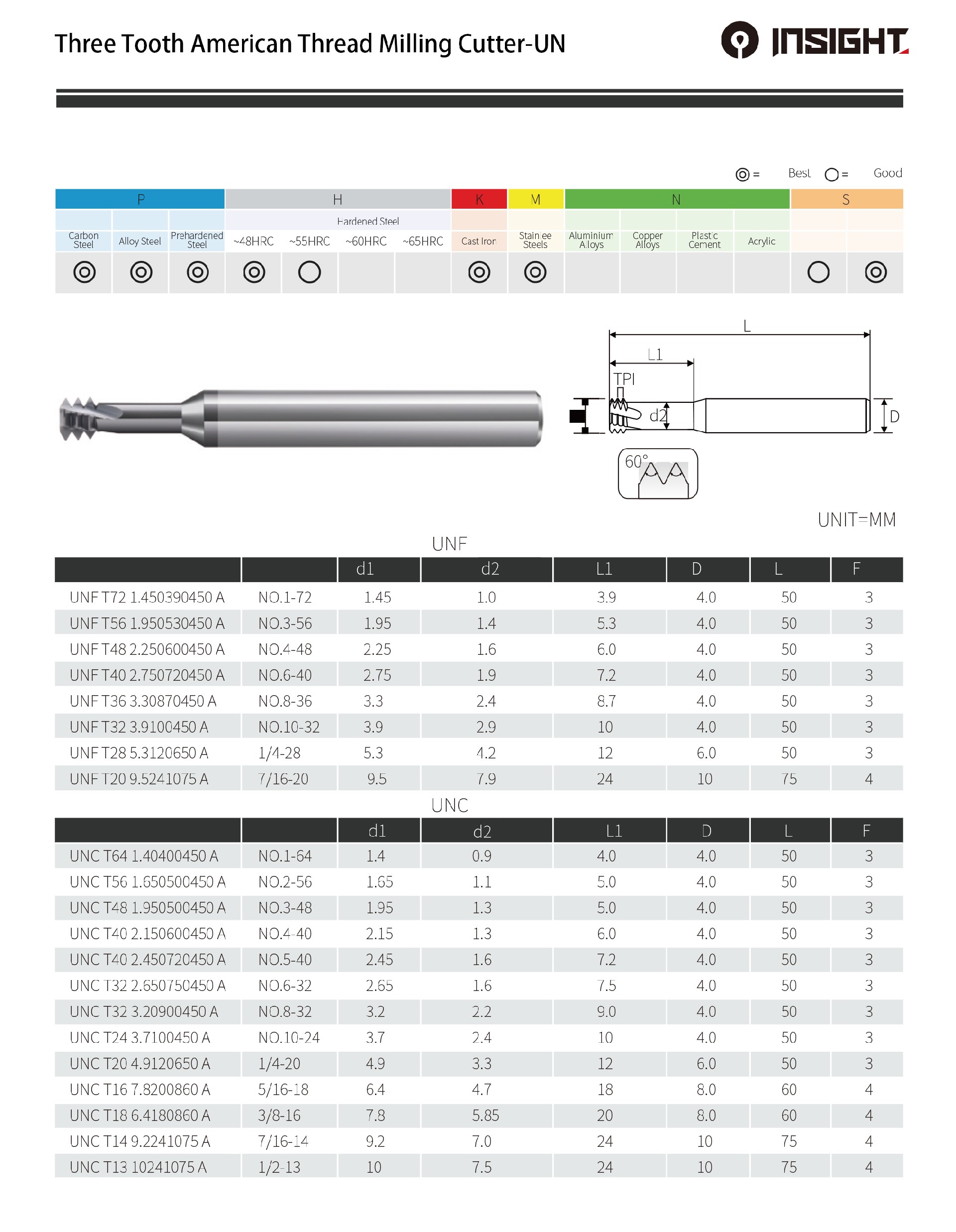

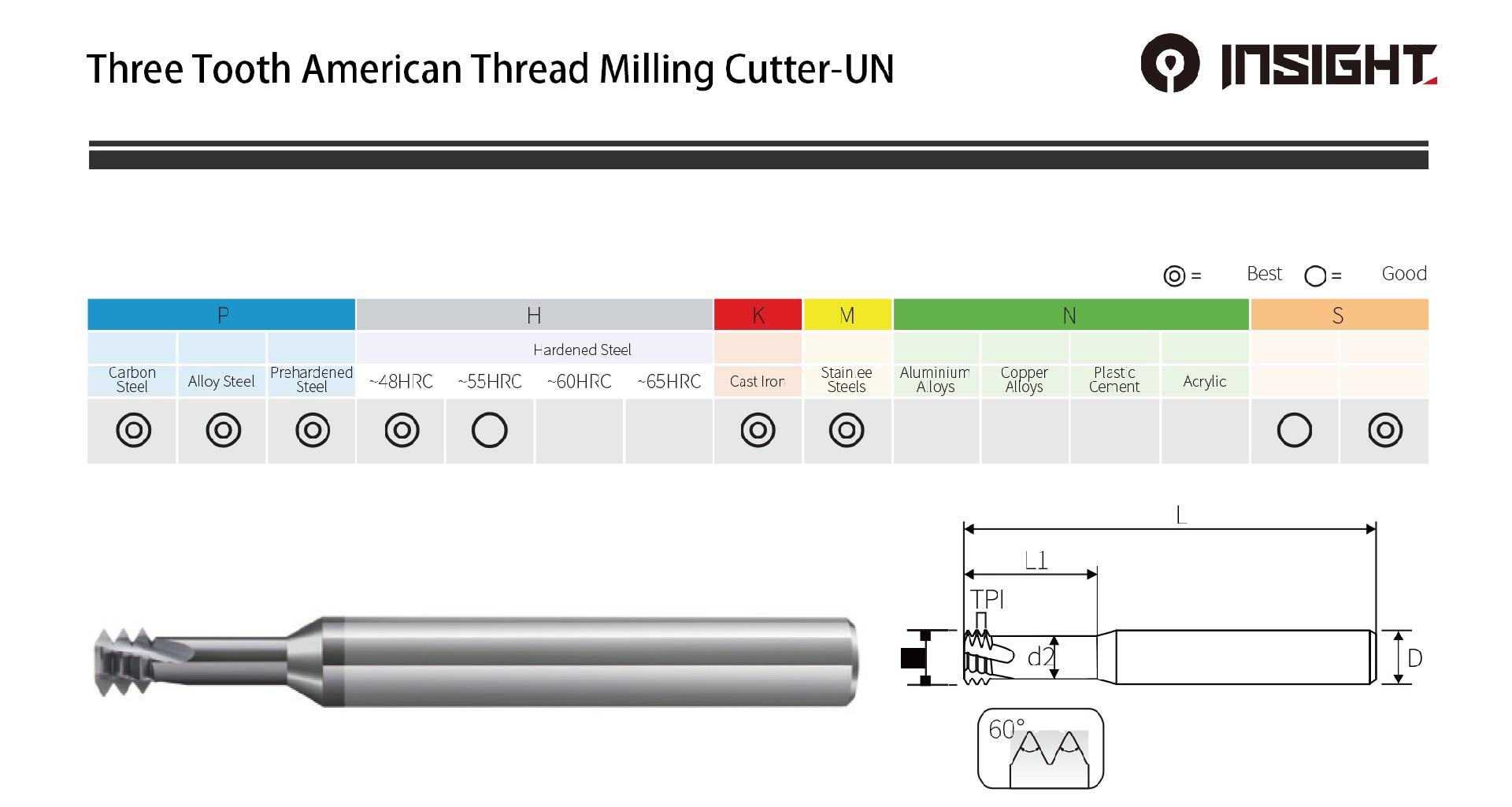

| UNF Swiss screw-thread | |||||||
| Order | Mode | d1 | d2 | L1 | D | L | F |
| UNF T72 1.450390450 A | NO.1-72 | 1.45 | 1.0 | 3.9 | 4.0 | 50 | 3 |
| UNF T56 1.950530450 A | NO.3-56 | 1.95 | 1.4 | 5.3 | 4.0 | 50 | 3 |
| UNF T48 2.250600450 A | NO.4-48 | 2.25 | 1.6 | 6.0 | 4.0 | 50 | 3 |
| UNF T40 2.750720450 A | NO.6-40 | 2.75 | 1.9 | 7.2 | 4.0 | 50 | 3 |
| UNF T36 3.30870450 A | NO.8-36 | 3.3 | 2.4 | 8.7 | 4.0 | 50 | 3 |
| UNF T32 3.9100450 A | NO.10-32 | 3.9 | 2.9 | 10 | 4.0 | 50 | 3 |
| UNF T28 5.3120650 A | 1/4-28 | 5.3 | 4.2 | 12 | 6.0 | 50 | 3 |
| UNF T20 9.5241075 A | 7/16-20 | 9.5 | 7.9 | 24 | 10 | 75 | 4 |
| UNF coarse-pitch thread | |||||||
| Order | Mode | d1 | d2 | L1 | D | L | F |
| UNC T64 1.40400450 A | NO.1-64 | 1.4 | 0.9 | 4.0 | 4.0 | 50 | 3 |
| UNC T56 1.650500450 A | NO.2-56 | 1.65 | 1.1 | 5.0 | 4.0 | 50 | 3 |
| UNC T48 1.950500450 A | NO.3-48 | 1.95 | 1.3 | 5.0 | 4.0 | 50 | 3 |
| UNC T40 2.150600450 A | NO.4-40 | 2.15 | 1.3 | 6.0 | 4.0 | 50 | 3 |
| UNC T40 2.450720450 A | NO.5-40 | 2.45 | 1.6 | 7.2 | 4.0 | 50 | 3 |
| UNC T32 2.650750450 A | NO.6-32 | 2.65 | 1.6 | 7.5 | 4.0 | 50 | 3 |
| UNC T32 3.20900450 A | NO.8-32 | 3.2 | 2.2 | 9.0 | 4.0 | 50 | 3 |
| UNC T24 3.7100450 A | NO.10-24 | 3.7 | 2.4 | 10 | 4.0 | 50 | 3 |
| UNC T20 4.9120650 A | 1/4-20 | 4.9 | 3.3 | 12 | 6.0 | 50 | 3 |
| UNC T16 7.8200860 A | 5/16-18 | 6.4 | 4.7 | 18 | 8.0 | 60 | 4 |
| UNC T18 6.4180860 A | 3/8-16 | 7.8 | 5.85 | 20 | 8.0 | 60 | 4 |
| UNC T14 9.2241075 A | 7/16-14 | 9.2 | 7.0 | 24 | 10 | 75 | 4 |
| UNC T13 10241075 A | 1/2-13 | 10 | 7.5 | 24 | 10 | 75 | 4 |
Using particulate tungsten steel base material，It has high wear resistance and strength.
Sharp without burr, tool wear resistance, high thread accuracy.
The use of nano coating technology, excellent wear resistance to ensure tool life.
Inclined multi-slot design, smooth chip removal, sharp edge, larger capacity.
| Parameter Configuration | information |
| Tool Type | Milling Cutter |
| material | Tungsten |
| coating | Nano-coating |
| Number of Flutes | 3-4 |
| Work Hardness | HRC≤60° |
| Machine | CNC，carving machine，high-speed robot... |
Work Material: Stainless steel, ductile iron, alloy steel, die steel, titanium alloy, etc...
