INSIGHT CNC Lathe STAR Collet Chuck

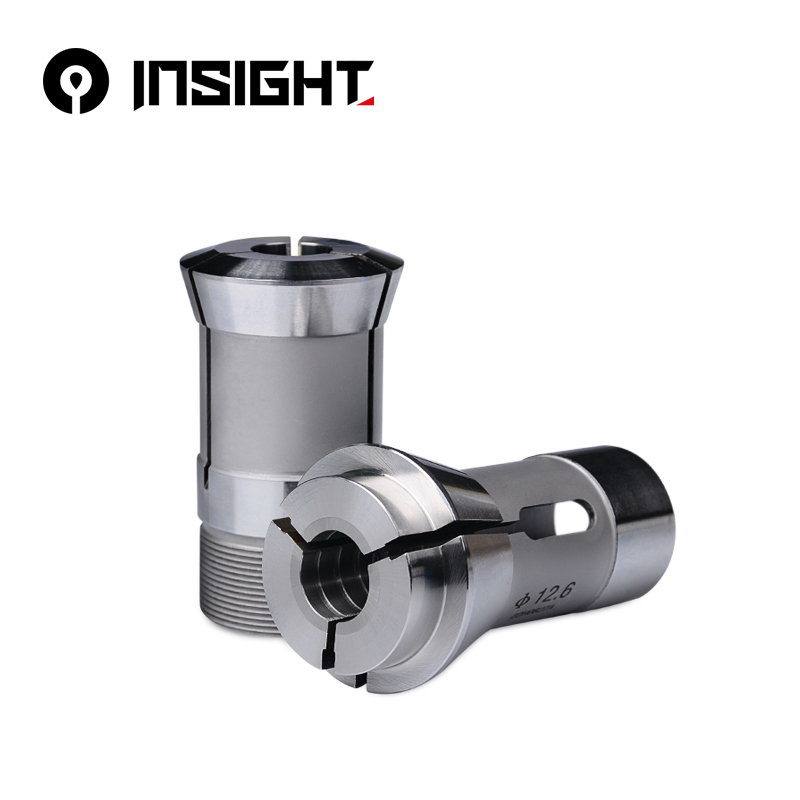

1. INSIGHT STAR SR20 Lathe Collet And Guide Bush


The collet is a critical component of STAR Swiss-type lathes (precision sliding-headstock lathes), enabling high-accuracy,

high-efficiency machining of complex small parts.

Below is a detailed breakdown of its functions, key benefits, and industrial applications.



STAR SR20 Collet Functions


1. High-Precision Clamping

   - Made from high-rigidity materials (alloy steel/ceramic) with precision grinding, ensuring repeatability within ±0.005mm.

   - Stable gripping of ultra-thin bar stock (Ø0.5–32mm) with minimal runout.


2. Multi-Tasking Synchronization

   - Works with multi-spindle and multi-turret systems for simultaneous machining (e.g., main collet turning while sub-spindle finishes the backside).


3. Rapid Material Change

   - Hydraulic/pneumatic actuation enables 1–2 sec bar feed changes, boosting productivity.


4. Anti-Collision Design

   - Compact structure avoids interference with rotating tools or guide bushings, ideal for complex contours (threads, eccentric holes).

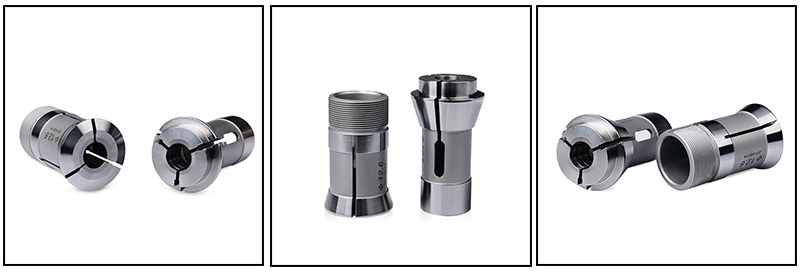

2.INSIGHT Lathe STAR SR20 Collet And Guide Bush Picture



STAR SR20 Collet Chuck Advantages


1.Reduced Cycle Time

   - Sub-spindle (counter collet) grips the workpiece for complete machining in one setup, eliminating secondary operations.


2. Complex Parts in Single Pass

   - With guide bushing support, processes slender parts (L/D ratio >20:1) like medical guidewires without repositioning.


3. Wide Material Compatibility

   - Options: spring collets (standard), hydraulic collets (high grip force), heat-shrink collets (for hard materials like Inconel).

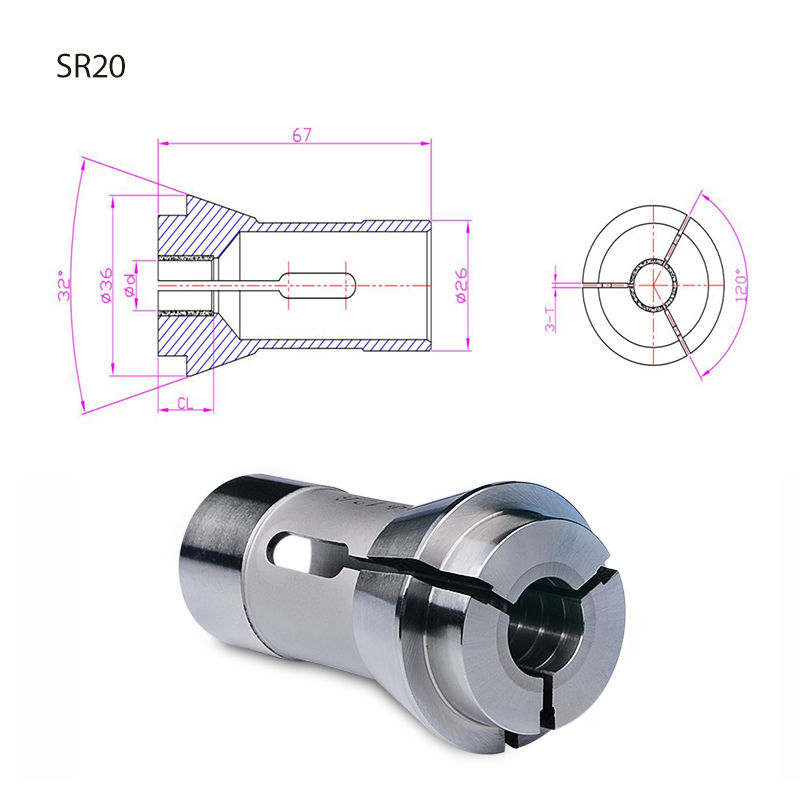

3.INSIGHT Lathe STAR SR20 Collet And Guide Bush Size



1. Medical Devices

   - Bone screws, endoscope components – surface finish Ra ≤0.4µm with vibration-free clamping.


2. Automotive Electronics

   - Fuel injector nozzles, sensor housings – high-volume production with unattended operation.


3. Aerospace

   - Turbine blade tenons, fuel valve parts – withstands high-temperature alloys (e.g., Ti-6Al-4V).


4. Watchmaking

   - Gear shafts, balance staffs – sub-micron tolerances for luxury timepieces.



* Our products cover a wide spectrum of metal cutting applications.

If you have any questions about machine collet and micro boring tool, please contact us.
