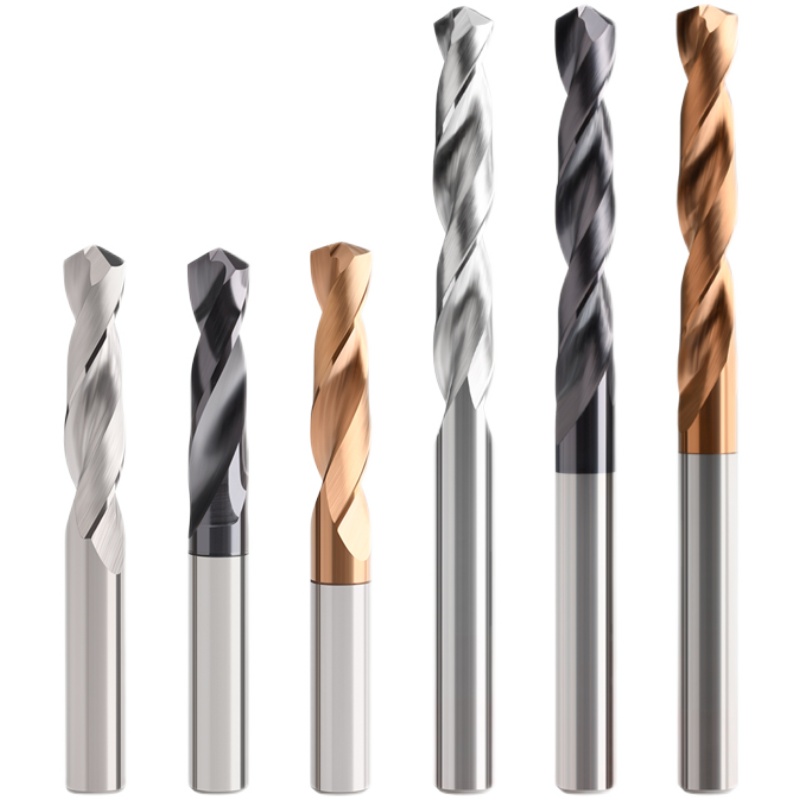

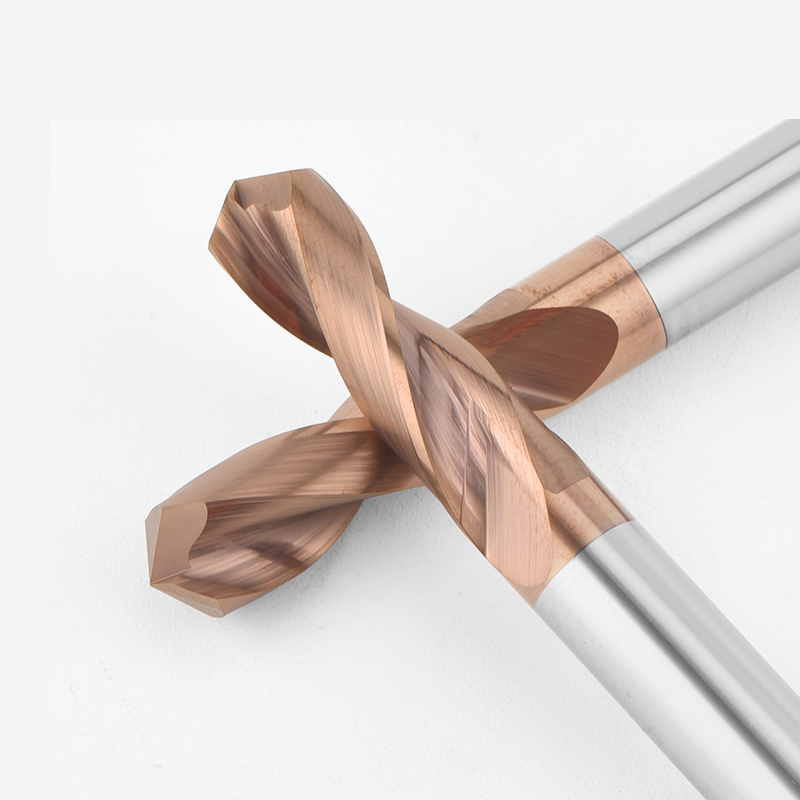

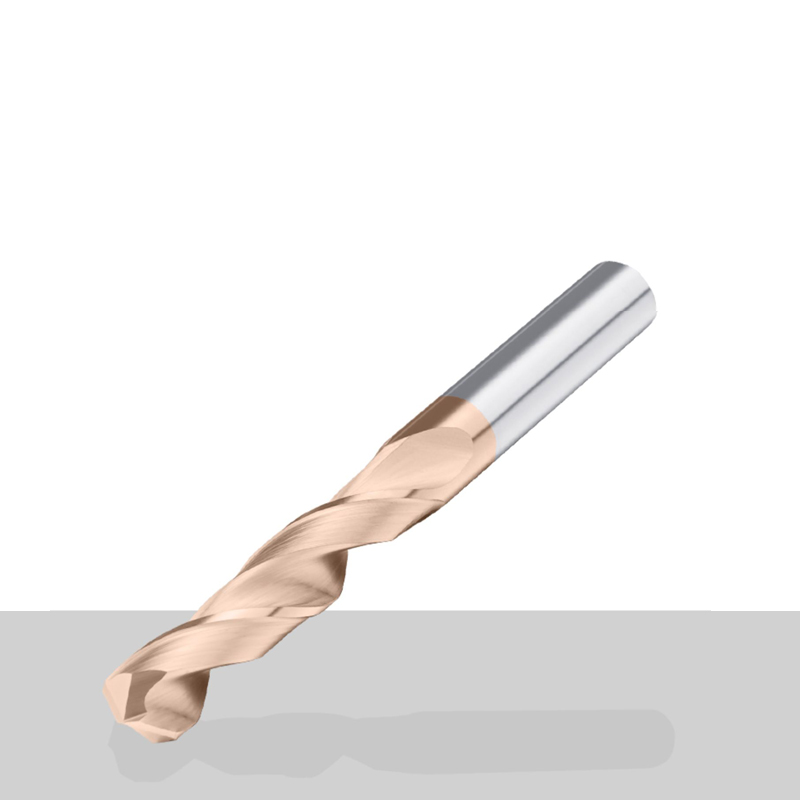

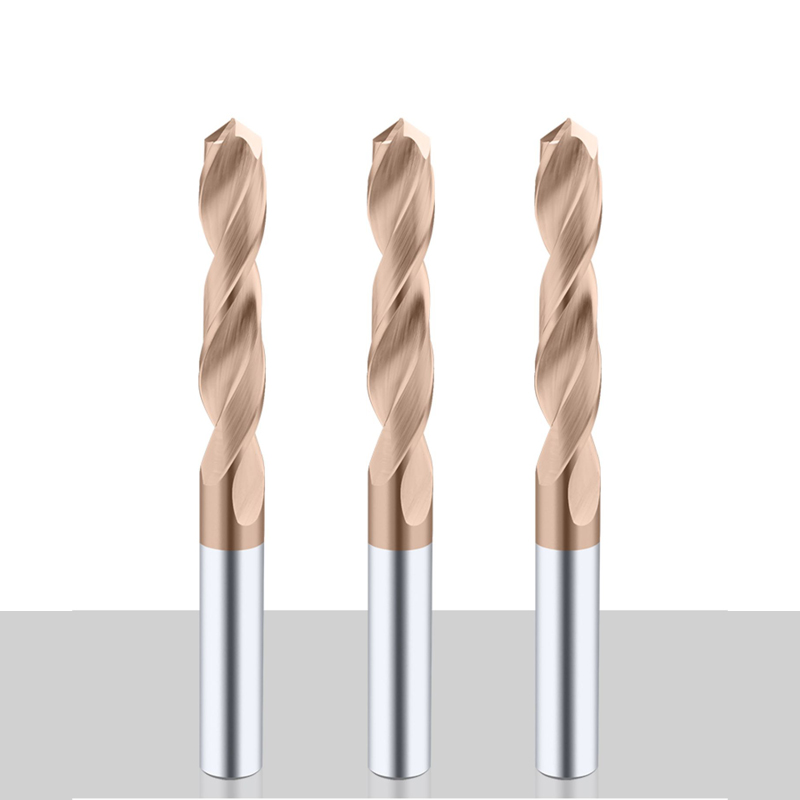

Tungsten Drill Bit

Model Number

Tungsten Carbide 3XD Drill Bit

Size

Shank Dia. 4.0, 6.0, 8.0, 10.0, 12.0

Customization

OEM/ODM

Quick Details

1. Special use for rough milling, realize efficiency processing, whole tungsten steel alloy nano coating, reinforced knife with wear resistance.
2. Adopt a suitable negative front angle design, taking into account edge strength and sharpness, simultaneous use large core diameter.
3. The sharp Angle adopts the special shape design, which improves the rigidity of the tip and is not easy to break the knife.
4. The cutting edge adopts passivation process, which is not easy to break the knife, and increases the durability and life of the tool.
5. Chamfer design, easy installation, smooth and bright chamfer, excellent technology, beautiful and comfortable.

Inquiry Download

DESCRIPTION

Specification

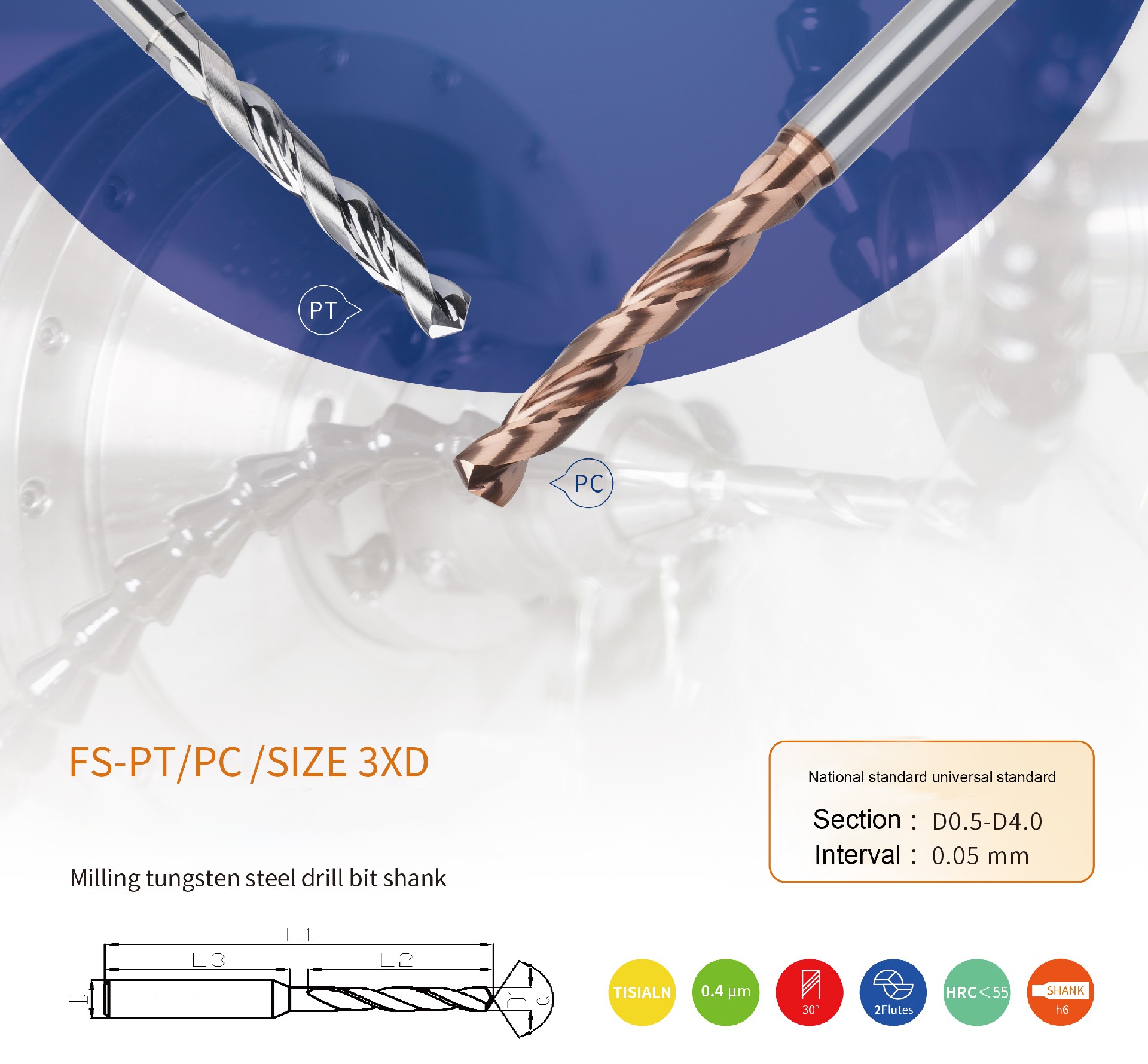

09-14.FS-PT-PC系列 3D通用-1.jpg

Order NO.	D1	L2	L1	D
FS-PT/PC-050	0.5	4	50	4
FS-PT/PC-060	0.6	5	50	4
FS-PT/PC-070	0.7	5	50	4
FS-PT/PC-080	0.8	5	50	4
FS-PT/PC-100	1	6	50	4
FS-PT/PC-150	1.5	8	50	4
FS-PT/PC-190	1.9	9	50	4
FS-PT/PC-200	2	10	50	4
FS-PT/PC-250	2.5	12	50	4
FS-PT/PC-280	2.8	14	50	4
FS-PT/PC-300	3	16	50	4
FS-PT/PC-350	3.5	16	50	4
FS-PT/PC-380	3.8	18	50	4
FS-PT/PC-400	4	18	50	4
FS-PT/PC-450	4.5	18	50	5
FS-PT/PC-480	4.8	20	50	5
FS-PT/PC-500	5	20	50	5
FS-PT/PC-550	5.5	25	50	6
FS-PT/PC-600	6	25	50	6
FS-PT/PC-625	6.25	30	60	8
FS-PT/PC-650	6.5	30	60	8
FS-PT/PC-700	7	30	60	8
FS-PT/PC-750	7.5	32	60	8
FS-PT/PC-780	7.8	32	60	8
FS-PT/PC-800	8	32	60	8
FS-PT/PC-825	8.25	40	75	10
FS-PT/PC-850	8.5	40	75	10
FS-PT/PC-875	8.75	40	75	10
FS-PT/PC-900	9	40	40	10
FS-PT/PC-930	9.3	40	75	10
FS-PT/PC-950	9.5	40	75	10
FS-PT/PC-985	9.85	40	75	10
FS-PT/PC-1000	10	40	75	10
FS-PT/PC-1025	10.25	42	75	12
FS-PT/PC-1085	10.85	42	75	12
FS-PT/PC-1100	11	42	75	12
FS-PT/PC-1110	11.1	48	80	12
FS-PT/PC-1130	11.3	48	80	12
FS-PT/PC-1160	11.6	48	80	12
FS-PT/PC-1185	11.85	48	80	12
FS-PT/PC-1200	12	48	80	12
For other models or OEM, please consult the supplier 》》
