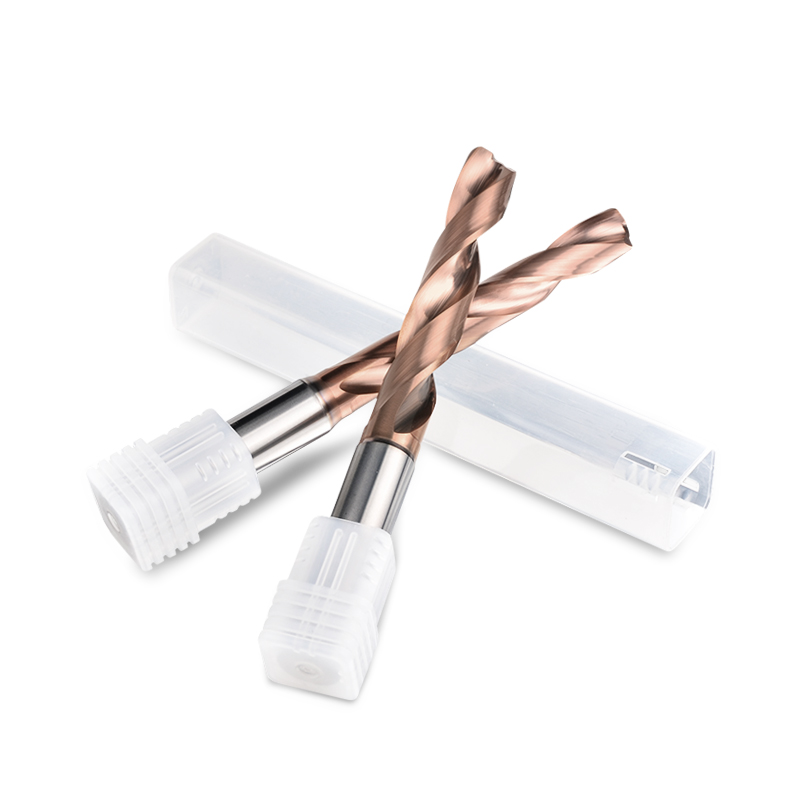

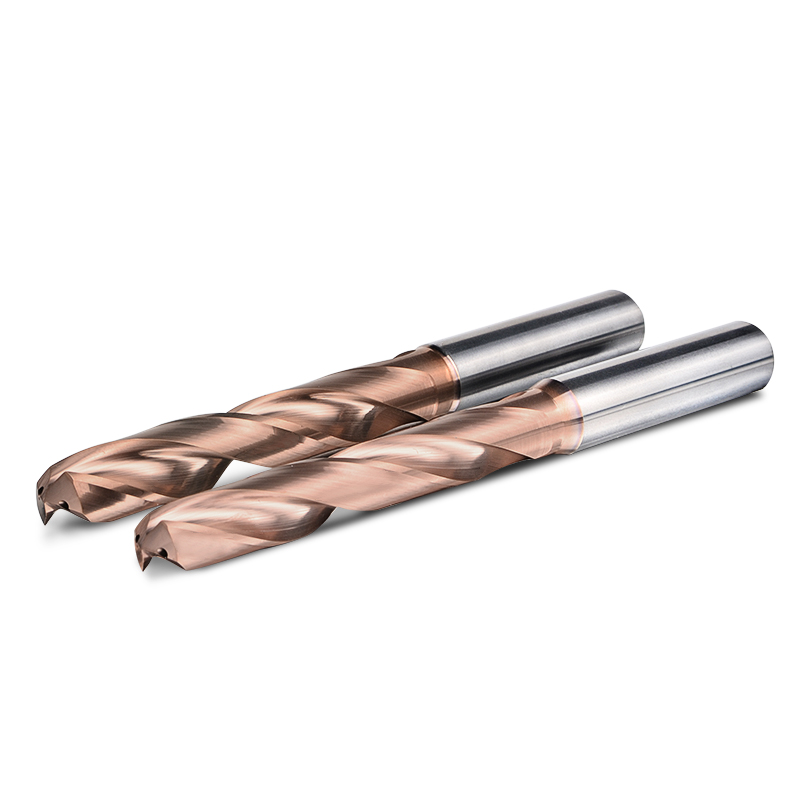

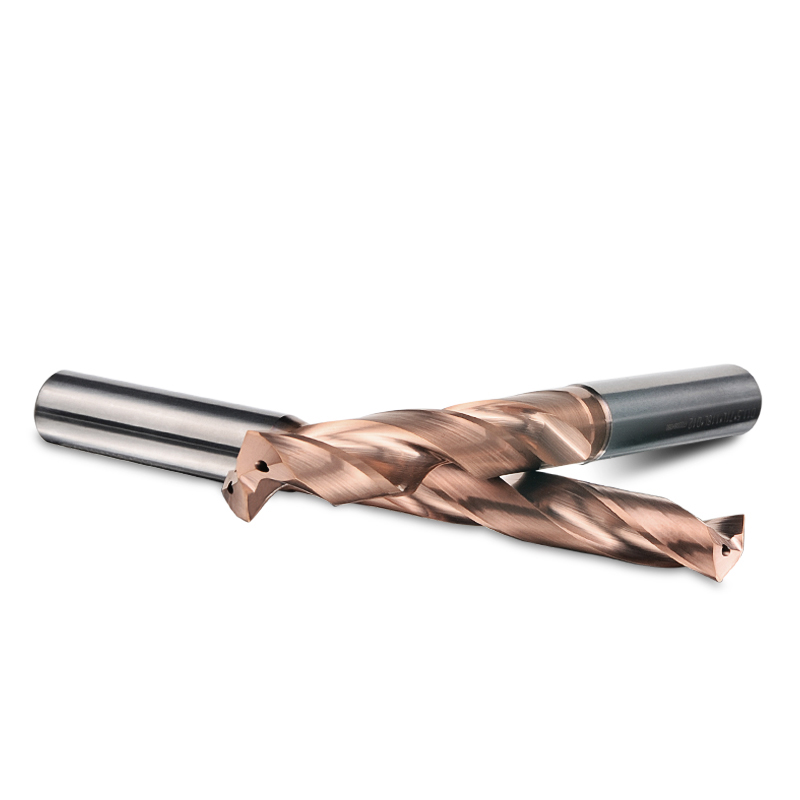

Tungsten 5XD Internal Cooling Drill

Model Number

FSC-XG/XA 5XD Series Step 0.1mm

Size

Shank Diameter 4.0 6.0 8.0 10.0 12.0 14.0 16.0 18.0 20.0 22.0 24.0 25.0

Customization

OEM/ODM

Quick Details

1. Use of high quality rods, with higher strength and wear resistance.
2. Excellent surface finish, wear oxidation resistance.
3. Spiral groove design for smoother chip removal in drilling

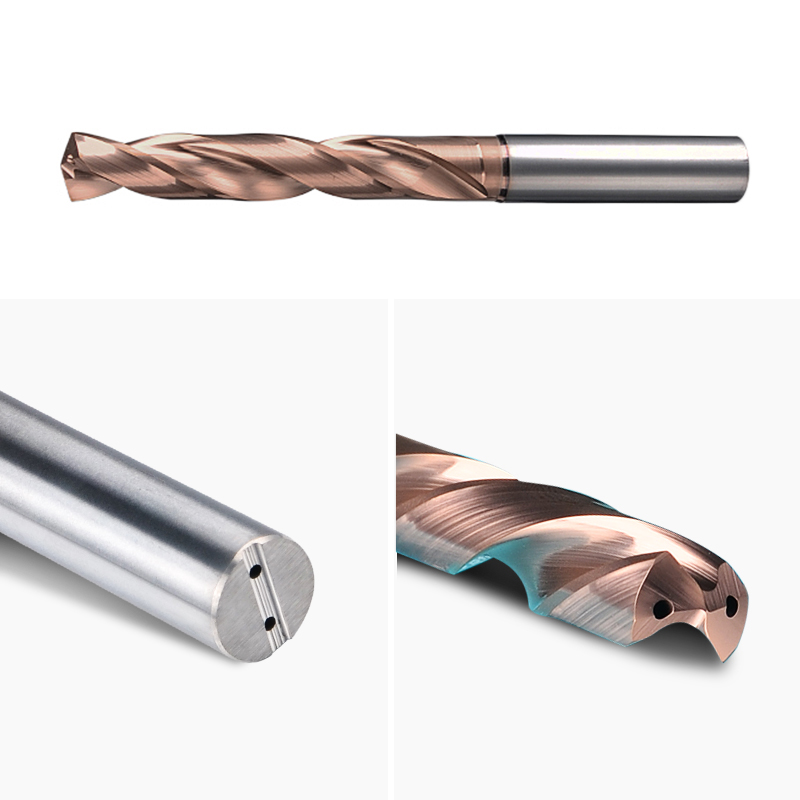

4. 2 central water outlet holes, improve drilling stability and efficiency, 30% longer life than external cooling under the same parameters.
5. For easy installation and efficiency.

Inquiry Download

DESCRIPTION

Specification

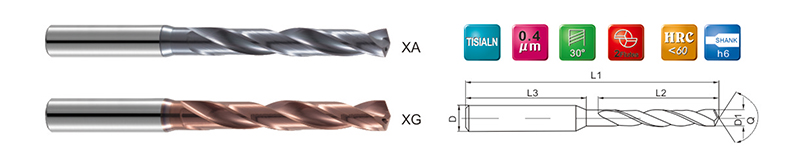

Model	D1	L2	L1	D
FSC-XA/XG-300	3.00	28.0	66.0	4.0
FSC-XA/XG-350	3.50	28.0	66.0	4.0
FSC-XA/XG-380	3.80	36.0	74.0	4.0
FSC-XA/XG-400	4.00	36.0	74.0	4.0
FSC-XA/XG-450	4.50	36.0	74.0	6.0
FSC-XA/XG-480	4.80	44.0	82.0	6.0
FSC-XA/XG-500	5.00	44.0	82.0	6.0
FSC-XA/XG-550	5.50	44.0	82.0	6.0
FSC-XA/XG-600	6.00	44.0	82.0	6.0
FSC-XA/XG-610	6.10	53.0	91.0	8.0
FSC-XA/XG-650	6.50	53.0	91.0	8.0
FSC-XA/XG-700	7.00	53.0	91.0	8.0
FSC-XA/XG-810	8.10	61.0	103.0	10.0
FSC-XA/XG-850	8.50	61.0	103.0	10.0
FSC-XA/XG-900	9.00	61.0	103.0	10.0
FSC-XA/XG-950	9.50	61.0	103.0	10.0
FSC-XA/XG-1000	10.00	10.00	103.0	10.0
FSC-XA/XG-1010	10.10	71.0	118.0	12.0
FSC-XA/XG-1050	10.50	71.0	118.0	12.0
FSC-XA/XG-1100	11.00	71.0	118.0	12.0
FSC-XA/XG-1150	11.50	71.0	118.0	12.0
FSC-XA/XG-1200	12.00	71.0	118.0	12.0
FSC-XA/XG-1210	12.10	77.0	124.0	14.0
FSC-XA/XG-1250	12.50	77.0	124.0	14.0
FSC-XA/XG-1300	13.00	77.0	124.0	14.0
FSC-XA/XG-1350	13.50	77.0	124.0	14.0
FSC-XA/XG-1400	14.00	77.0	124.0	14.0
FSC-XA/XG-1410	14.10	83.0	133.0	16.0
FSC-XA/XG-1450	14.50	83.0	133.0	16.0
FSC-XA/XG-1500	15.00	83.0	133.0	16.0
FSC-XA/XG-1650	16.50	101.0	153.0	18.0
FSC-XA/XG-1750	17.50	101.0	153.0	18.0
FSC-XA/XG-1800	18.00	101.0	153.0	18.0
FSC-XA/XG-1850	18.50	101.0	153.0	20.0
FSC-XA/XG-1950	19.50	101.0	153.0	20.0
FSC-XA/XG-2100	21.00	135.0	200.0	22.0
FSC-XA/XG-2250	22.50	140.0	200.0	24.0
FSC-XA/XG-2350	23.50	140.0	200.0	24.0
FSC-XA/XG-2450	24.50	140.0	200.0	25.0
FSC-XA/XG-2500	25.00	140.0	200.0	25.0
For other models or OEM, please contact the supplier>>
