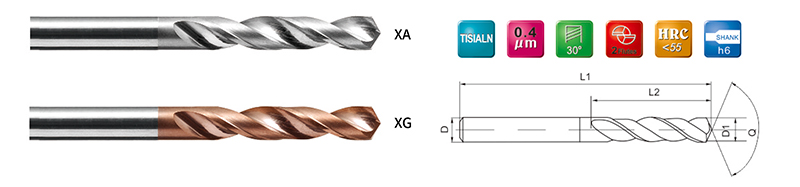

| Model | D1 | L2 | L1 | D |
| HB-XA/XG-050 | 0.5 | 5 | 50 | 4 |
| HB-XA/XG-080 | 0.8 | 6 | 50 | 4 |
| HB-XA/XG-095 | 0.95 | 6 | 50 | 4 |
| HB-XA/XG-100 | 1 | 8 | 50 | 4 |
| HB-XA/XG-130 | 1.3 | 8 | 50 | 4 |
| HB-XA/XG-150 | 1.5 | 9 | 50 | 4 |
| HB-XA/XG-160 | 1.6 | 10 | 50 | 4 |
| HB-XA/XG-175 | 1.75 | 10 | 50 | 4 |
| HB-XA/XG-180 | 1.8 | 12 | 50 | 4 |
| HB-XA/XG-200 | 2 | 12 | 50 | 4 |
| HB-XA/XG-215 | 2.15 | 12 | 50 | 4 |
| HB-XA/XG-220 | 2.2 | 13 | 50 | 4 |
| HB-XA/XG-235 | 2.35 | 13 | 50 | 4 |
| HB-XA/XG-240 | 2.4 | 14 | 50 | 4 |
| HB-XA/XG-265 | 2.65 | 14 | 50 | 4 |
| HB-XA/XG-270 | 2.7 | 16 | 50 | 4 |
| HB-XA/XG-295 | 2.95 | 16 | 50 | 4 |
| HB-XA/XG-300 | 3 | 20 | 50 | 4 |
| HB-XA/XG-350 | 3.5 | 20 | 55 | 4 |
| HB-XA/XG-355 | 3.55 | 20 | 55 | 4 |
| HB-XA/XG-360 | 3.6 | 23 | 55 | 4 |
| HB-XA/XG-380 | 3.8 | 23 | 55 | 4 |
| HB-XA/XG-400 | 4 | 23 | 55 | 4 |
| HB-XA/XG-405 | 4.05 | 26 | 60 | 5 |
| HB-XA/XG-455 | 4.55 | 26 | 60 | 5 |
| HB-XA/XG-460 | 4.6 | 28 | 60 | 5 |
| HB-XA/XG-500 | 5 | 28 | 60 | 5 |
| HB-XA/XG-505 | 5.05 | 30 | 65 | 6 |
| HB-XA/XG-555 | 5.55 | 30 | 65 | 6 |
| HB-XA/XG-560 | 5.6 | 32 | 65 | 6 |
| HB-XA/XG-600 | 6.0 | 32 | 65 | 6 |
| HB-XA/XG-610 | 6.1 | 38 | 75 | 7 |
| HB-XA/XG-650 | 6.5 | 38 | 75 | 7 |
| HB-XA/XG-660 | 6.6 | 42 | 80 | 7 |
| HB-XA/XG-700 | 7.0 | 42 | 80 | 7 |
| HB-XA/XG-710 | 7.1 | 53 | 91 | 8 |
| HB-XA/XG-800 | 8.0 | 53 | 91 | 8 |
| HB-XA/XG-810 | 8.1 | 61 | 103 | 9 |
| HB-XA/XG-910 | 9.1 | 61 | 103 | 10 |
| HB-XA/XG-1000 | 10 | 61 | 103 | 10 |
| HB-XA/XG-1010 | 10.1 | 71 | 118 | 11 |
| HB-XA/XG-1100 | 11 | 71 | 118 | 11 |
| HB-XA/XG-1110 | 11.1 | 71 | 118 | 12 |
| HB-XA/XG-1200 | 12 | 71 | 118 | 12 |
| HB-XG-1210 | 12.1 | 77 | 124 | 13 |
| HB-XG-1300 | 13 | 77 | 124 | 13 |
| For other detailed models or OEM, please consult the supplier>> | ||||

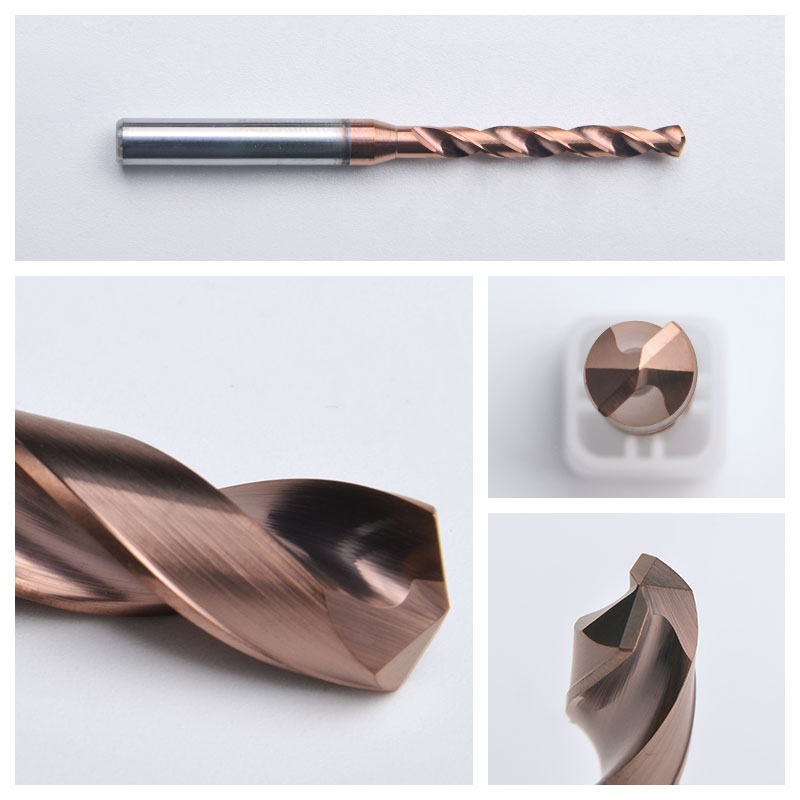

1. Using nanotechnology and advanced grinding technology, the cutting edge of the drill is sharper than before,
with less cutting force, reducing the probability of breaking the drill and improving the quality of the hole wall.
2. High-Speed feed, high precision, suitable for difficult machning conditions such as lathe machining that is easy to block.
3. Grinded with new fine particle tungsten steel bar, smooth and sharp, not easy to stick the knife, with high wear resistance and strength
4. The shank chamfering design makes it easier to install the chuck.
5. The ultra-fine alloy matrix is equipped with a nona-coating and the drill has excellent toughness and high temperture resisitance,
and has a small chemical affinity.

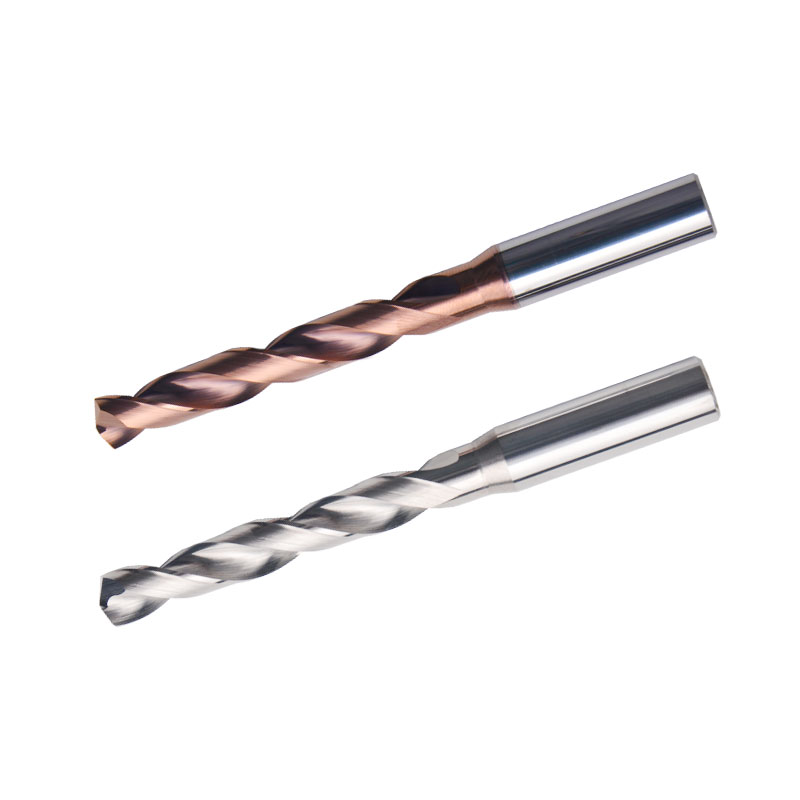

| Product Name | Tungsten 5XD Drill BIt |
| Tool Type | Drill Tool |
| Texture | Tungsten Carbide |
| Coating | Ultramicro Nano Coating |
| Diameter | 0.2-12mm |
| Shank Diameter | 4-12mm |
| Channel Lenght | 2-71mm |
| Full Lenght | 50-118mm |
| XG Applicable materials | carbon steei, alloy steel, quenchedandtempered steel,sus, mold steel, other steel, ductile iron |
| XA Applicable materials | aluminum, non-ferrous metals. non-metallic.(Uncoated tools) |
