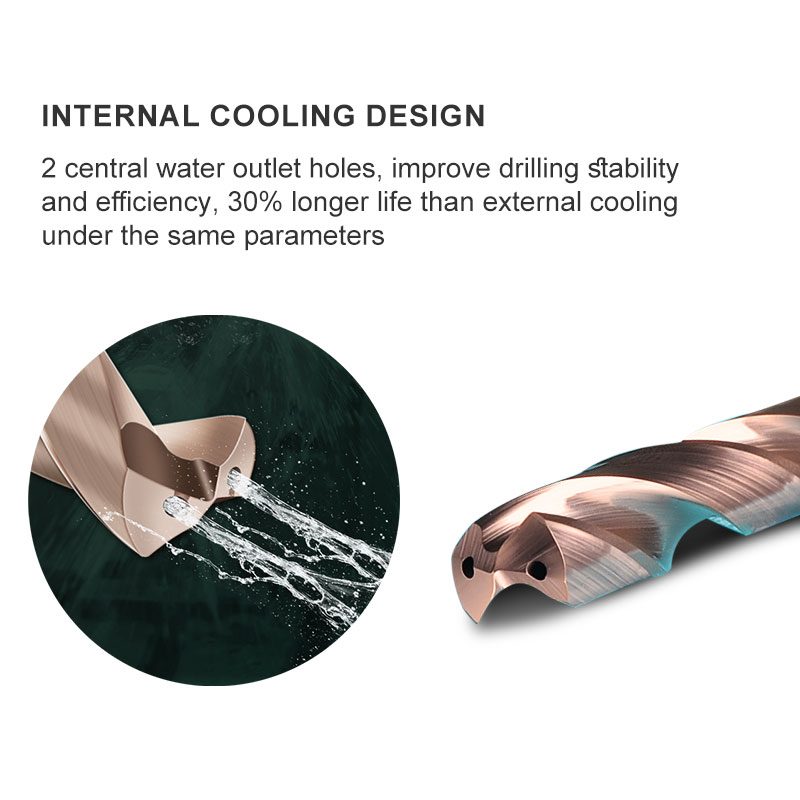

Inner Coolant Drill Tool

Model Number

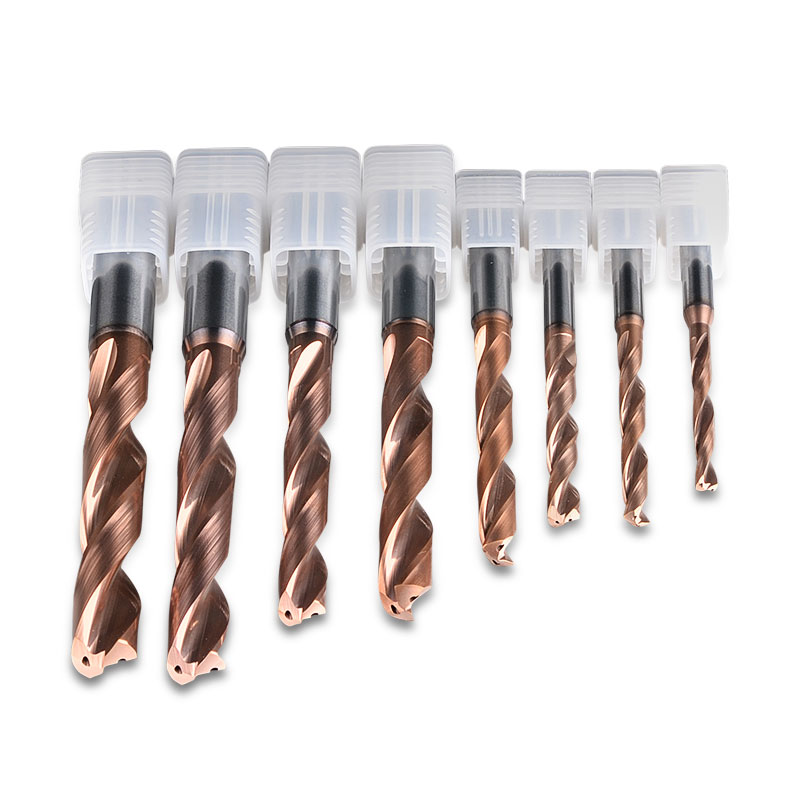

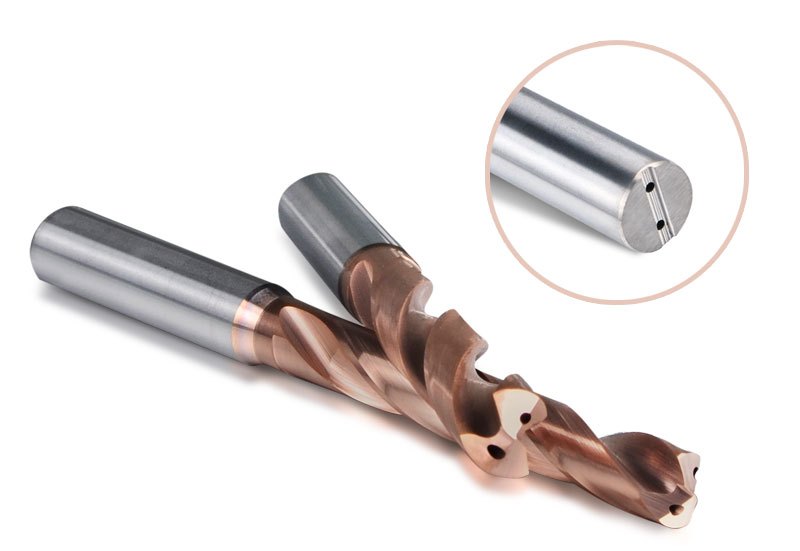

Carbide 5XD Inner Coolant Drill Tool

Size

3-12mm Step 0.1mm in stock

Customization

12-25mm(exclude 12mm), non-standard edge length,other whole length,special edge design,step drill bits

Quick Details

XA-Applicable materials:Special for stainless steel and titanium alloy ( Black Coated)
XG-Applicable materials:carbon steei,alloy steel,quenchedandtempered steel,sus,mold steel,other steel,ductile iron.
German carbide rod material,high precision tolerance.

Inquiry Download

DESCRIPTION

Specification

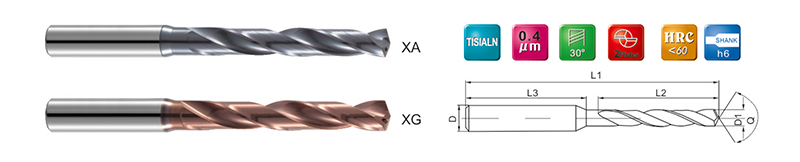

Model	D1	L2	L1	D
FSC-XA/XG-300	3.00	28.0	66.0	4.0
FSC-XA/XG-350	3.50	28.0	66.0	4.0
FSC-XA/XG-380	3.80	36.0	74.0	4.0
FSC-XA/XG-400	4.00	36.0	74.0	4.0
FSC-XA/XG-450	4.50	36.0	74.0	6.0
FSC-XA/XG-480	4.80	44.0	82.0	6.0
FSC-XA/XG-500	5.00	44.0	82.0	6.0
FSC-XA/XG-550	5.50	44.0	82.0	6.0
FSC-XA/XG-600	6.00	44.0	82.0	6.0
FSC-XA/XG-610	6.10	53.0	91.0	8.0
FSC-XA/XG-650	6.50	53.0	91.0	8.0
FSC-XA/XG-700	7.00	53.0	91.0	8.0
FSC-XA/XG-810	8.10	61.0	103.0	10.0
FSC-XA/XG-850	8.50	61.0	103.0	10.0
FSC-XA/XG-900	9.00	61.0	103.0	10.0
FSC-XA/XG-950	9.50	61.0	103.0	10.0
FSC-XA/XG-1000	10.00	10.00	103.0	10.0
FSC-XA/XG-1010	10.10	71.0	118.0	12.0
FSC-XA/XG-1050	10.50	71.0	118.0	12.0
FSC-XA/XG-1100	11.00	71.0	118.0	12.0
FSC-XA/XG-1150	11.50	71.0	118.0	12.0
FSC-XA/XG-1200	12.00	71.0	118.0	12.0
FSC-XA/XG-1210	12.10	77.0	124.0	14.0
FSC-XA/XG-1250	12.50	77.0	124.0	14.0
FSC-XA/XG-1300	13.00	77.0	124.0	14.0
FSC-XA/XG-1350	13.50	77.0	124.0	14.0
FSC-XA/XG-1400	14.00	77.0	124.0	14.0
FSC-XA/XG-1410	14.10	83.0	133.0	16.0
FSC-XA/XG-1450	14.50	83.0	133.0	16.0
FSC-XA/XG-1500	15.00	83.0	133.0	16.0
FSC-XA/XG-1650	16.50	101.0	153.0	18.0
FSC-XA/XG-1750	17.50	101.0	153.0	18.0
FSC-XA/XG-1800	18.00	101.0	153.0	18.0
FSC-XA/XG-1850	18.50	101.0	153.0	20.0
FSC-XA/XG-1950	19.50	101.0	153.0	20.0
FSC-XA/XG-2100	21.00	135.0	200.0	22.0
FSC-XA/XG-2250	22.50	140.0	200.0	24.0
FSC-XA/XG-2350	23.50	140.0	200.0	24.0
FSC-XA/XG-2450	24.50	140.0	200.0	25.0
FSC-XA/XG-2500	25.00	140.0	200.0	25.0
For other models or OEM, please contact the supplier>>
