4 Flute Long Neck Square End Mill

Model Number

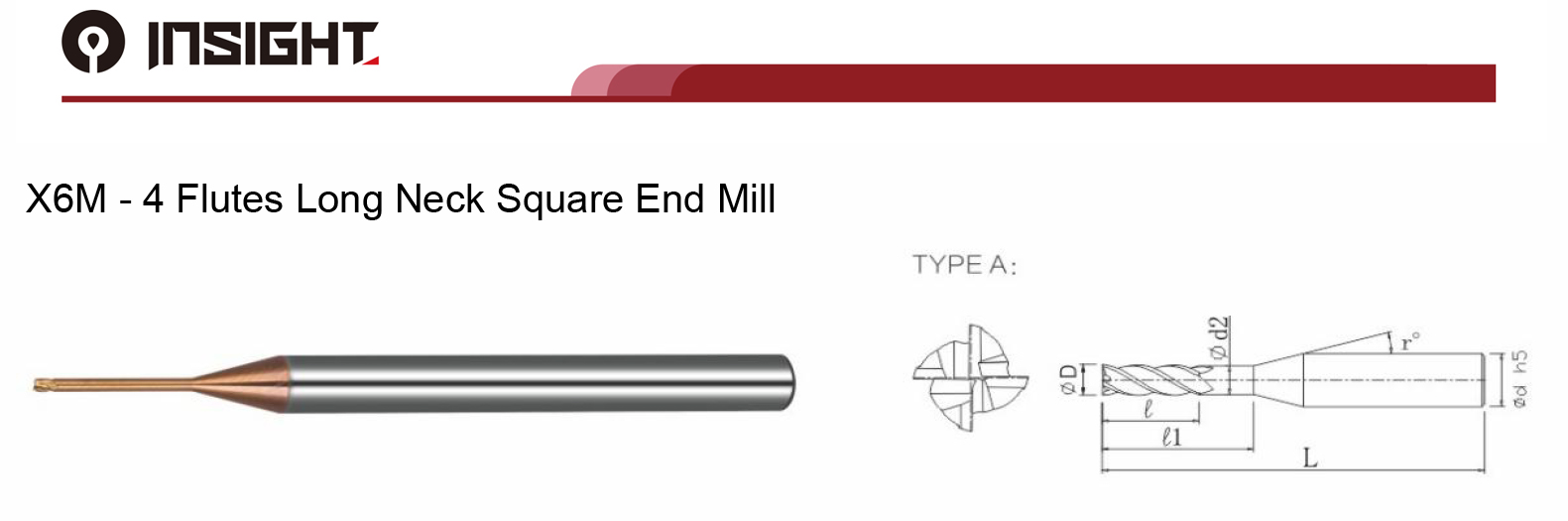

X6M - 4 Flutes Long Neck Square End Mill

Size

Shank Diameter 1.0, 1.5, 2, 3, 4

Customization

Sample Design

Quick Details

1. Square End Milling Cutter For High Hardness Materials. Most Suitable For Finishing.
2. Suitable For ~65HRC High Hardness Materials.
3. For machinning of high-hardness materials. Excellent chip removal performance enables high efficiency.
4. Support non-standard customization.

Inquiry Download

DESCRIPTION

Model No.	Specification	D	l1	l	d2	d	L
X6MNE1004	14L0.8L	1	4	0.8	0.95	4	50
X6MNE1006	16L0.8L	1	6	0.8	0.95	4	50
X6MNE1008	18L0.8L	1	8	0.8	0.95	4	50
X6MNE1010	110L0.8L	1	12	0.8	0.95	4	50
X6MNE1012	112L0.8L	1	16	0.8	0.95	4	50
X6MNE1016	116L0.8L	1	6	0.8	0.95	4	50
X6MNE1506	1.56L1.2L	1.5	8	1.2	1.45	4	50
X6MNE1508	1.58L1.2L	1.5	10	1.2	1.45	4	50
X6MNE1510	1.510L1.2L	1.5	12	1.2	1.45	4	50
