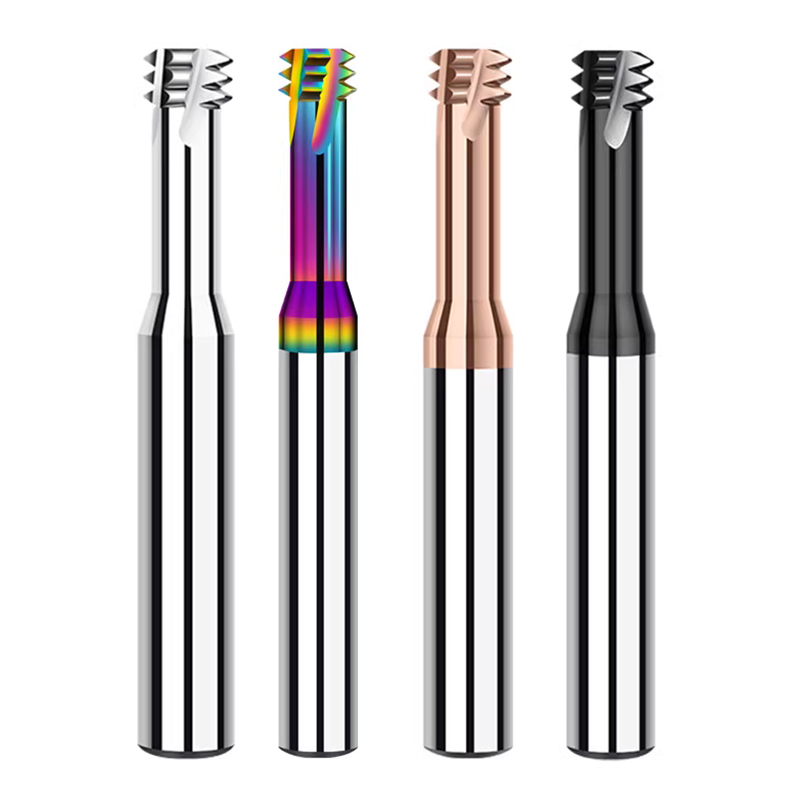

Three Tooth Metric Thread Milling

Model Number

Three Tooth Metric Thread End Mill-2D

Size

M1.0-M24

Customization

OEM/ODM

Quick Details

1. New ultra-fine particle bar is used Grinding high rigidity and wear resistance for cutting tool, service life make a strong guarantee.
2. Sharp edge, wear-resistance, with chip removal good, high processing efficiency, precision thread, durable higher usability.
3. Round grinding and segment differtence, 1μ rouandness 2μ straight, linearity to achieve minium bounce.
4. High density coating technology, excellent wear resistance and effective heat insulation to ensure, the tool has a long service life.

Inquiry Download

DESCRIPTION

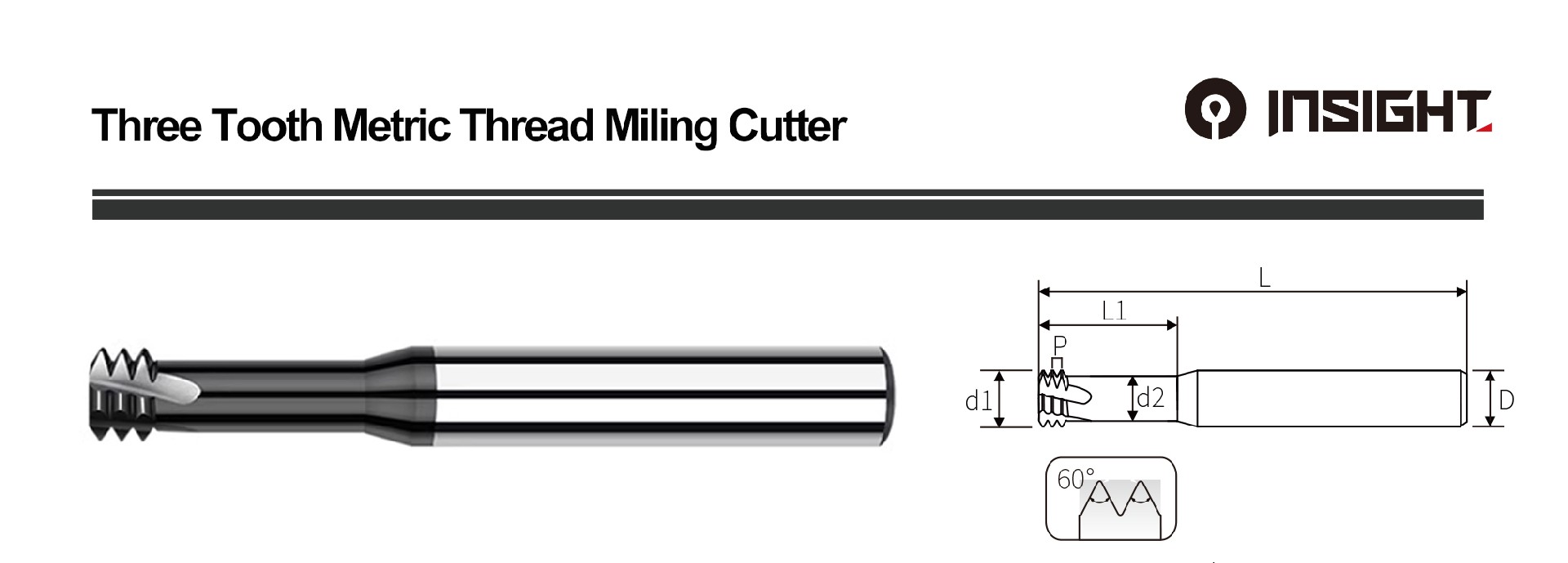

INSIGHT Threading Milling Catalog-12.jpg

Size	P	d1	d2	L1	D	L
M1.0	0.25	0.73	0.43	2.0	4.0	50
M1.2	0.25	0.92	0.62	2.4	4.0	50
M1.4	0.3	1.05	0.65	2.8	4.0	50
M1.6	0.35	1.2	0.78	3.2	4.0	50
M1.8	0.35	1.4	0.98	3.6	4.0	50
M2.0	0.4	1.55	1.05	4.0	4.0	50
M2.2	0.45	1.7	1.1	5.0	4.0	50
M2.5	0.45	2.0	1.45	5.0	4.0	50
M3.0	0.5	2.4	1.8	6.0	4.0	50
M3.5	0.6	2.75	2.0	8.0	4.0	50
M4.0	0.7	3.15	2.3	8.0	4.0	50
M4.5	0.75	3.5	2.55	9.0	4.0	50
M5.0	0.8	4.0	3.0	10	4.0	50
M6.0	1.0	4.8	3.6	12	6.0	50
M8.0	1.0	6.0	4.8	16	6.0	50
M8.0	1.25	6.0	4.5	16	6.0	50
M10.0	1.0	8.0	6.8	20	8.0	60
M10.0	1.5	8.0	6.2	20	8.0	60
M12.0	1.0	10	8.7	24	10	75
M12.0	1.5	10	8.1	24	10	75
M12.0	1.75	10	7.8	24	10	75
M14.0	1.5	12	10.1	28	12	75
M14.0	2.0	10	7.5	28	10	75
M16.0	2.0	12	9.5	32	12	75
M16.0	1.5	14	12.1	32	14	100
M16.0	2.0	13.5	11	32	14	100
M20.0	1.5	16	14.1	40	16	100
M20.0	2.5	16	12.6	40	16	100
M24.0	3.0	16	12	48	16	100
