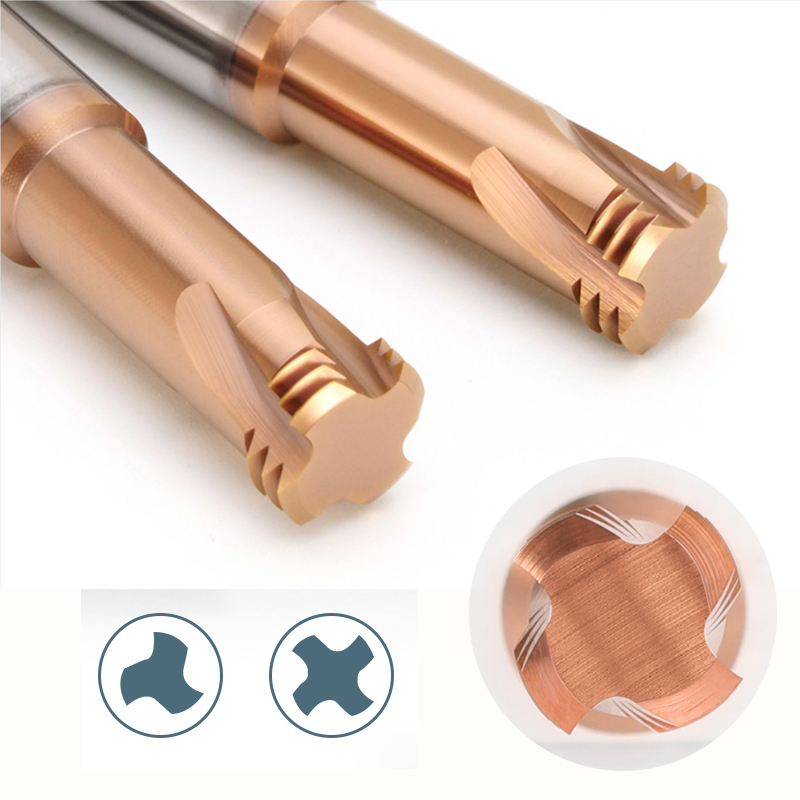

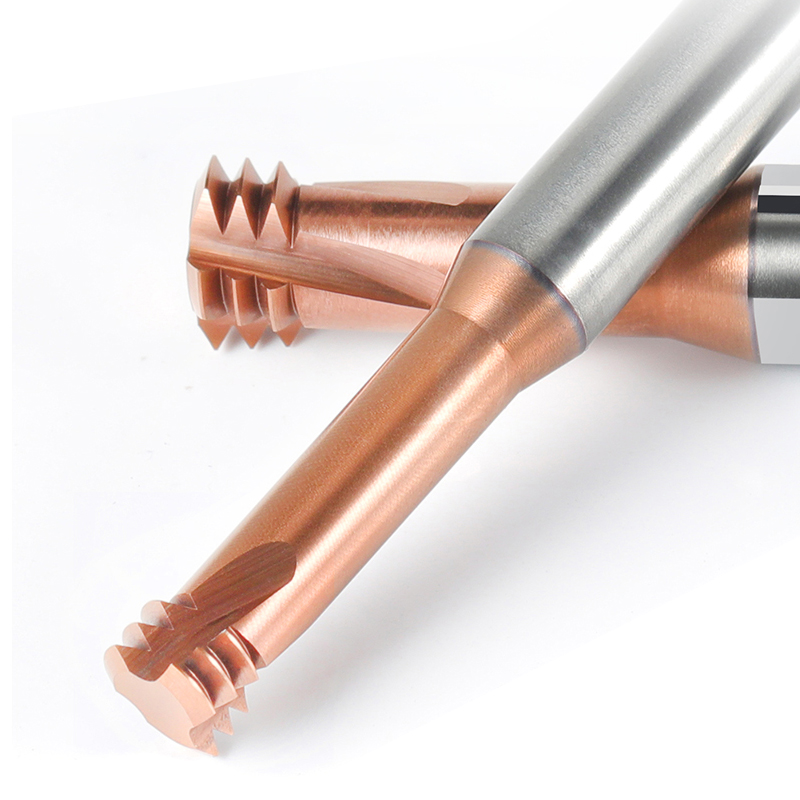

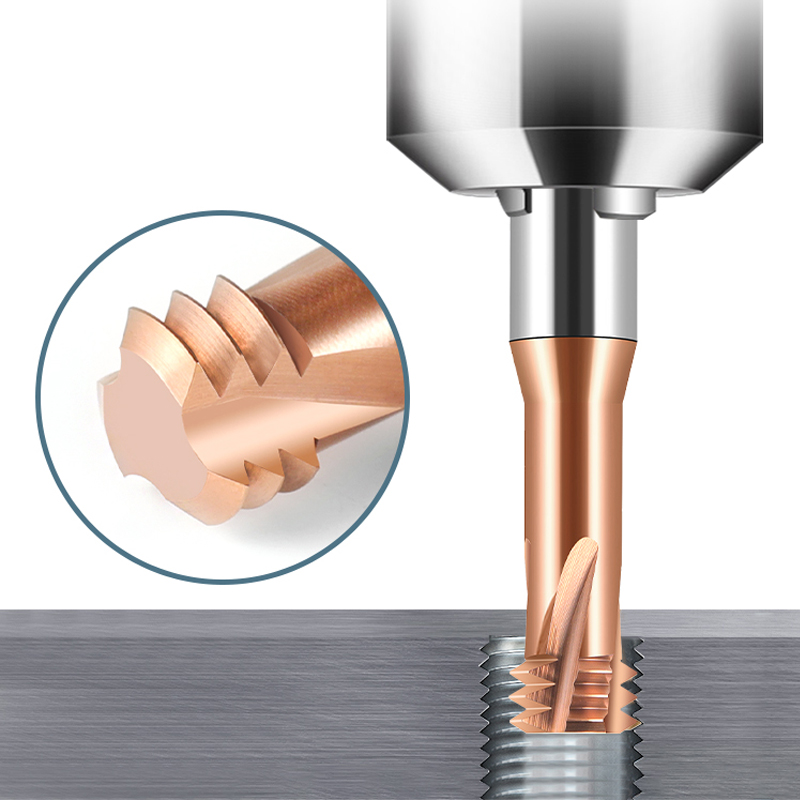

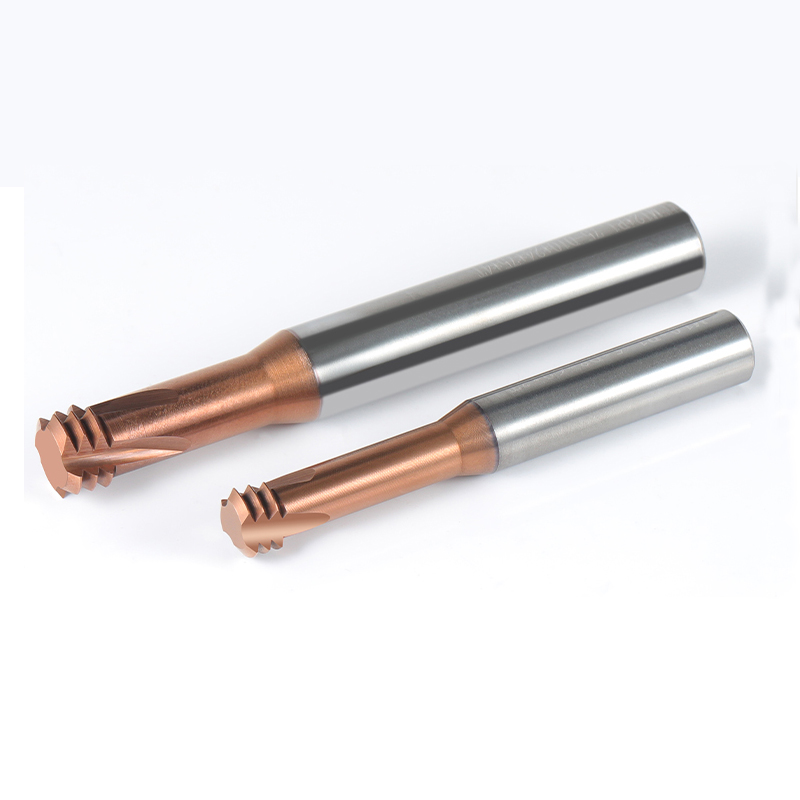

Three Tooth Thread Milling

Model Number

Three Tooth Thread Milling Tool

Size

Shank Diameter: 4.0, 6.0, 8.0, 10.0

Customization

OEM And ODM

Quick Details

1. New ultra-fine particle bar is used Grinding high rigidity and wear resistance for cutting tool, service life make a strong guarantee.
2. Sharp edge, wear-resistance, with chip removal good, high processing efficiency, precision thread, durable higher usability.
3. Excellent new blade shape, smooth surface, not easy to collapse angle, enhance the tool rigidity, take into account the tool rigidity and chip removal performance, make the cutting tool cutting and chip removal is more stable.
4. Round grinding and segment differtence, 1μ rouandness 2μ straight, linearity to achieve minium bounce.

Inquiry Download

DESCRIPTION

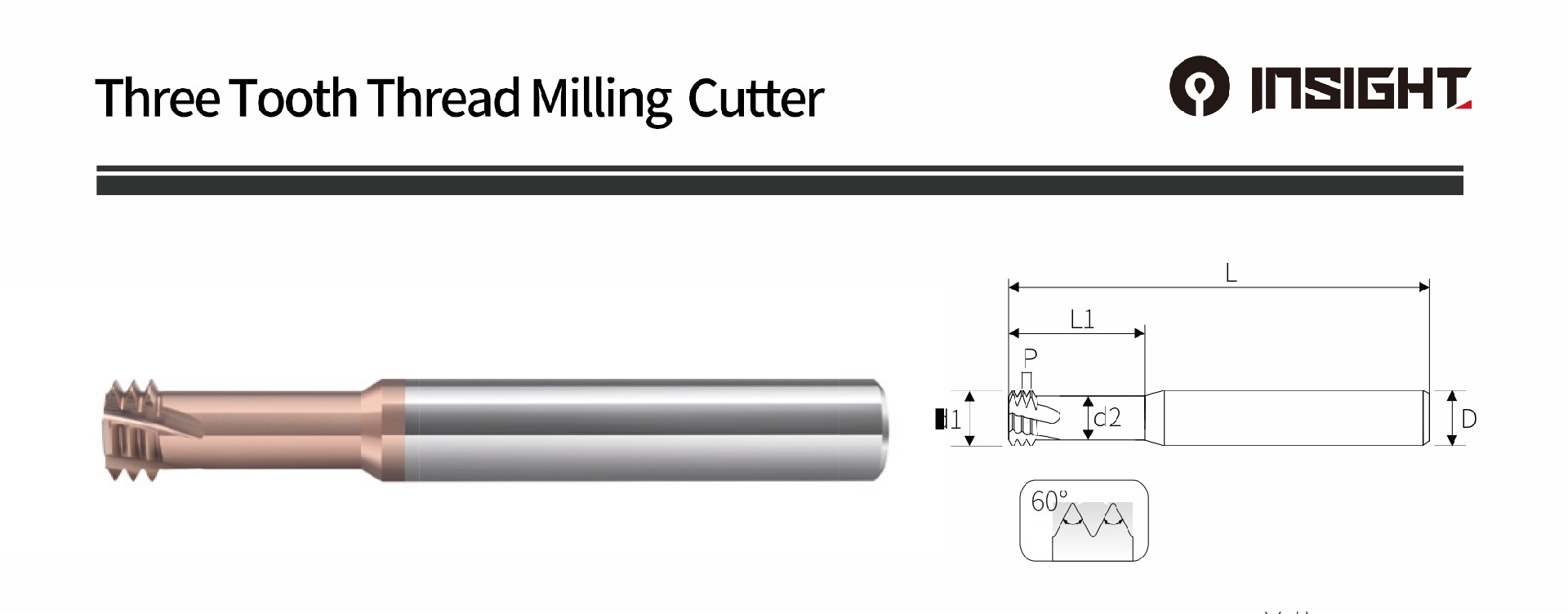

Size	P	d1	d2	L1	D	L
M1.0	0.25	0.73	2.0	3.0	4.0	50
M1.2	0.25	0.92	2.4	3.6	4.0	50
M1.4	0.3	1.05	2.8	4.2	4.0	50
M1.6	0.35	1.2	3.2	4.8	4.0	50
M2.0	0.4	1.55	4.0	6.0	4.0	50
M2.5	0.45	2.0	5.0	7.5	4.0	50
M3.0	0.5	2.4	6.0	9.0	4.0	50
M4.0	0.7	3.15	8.0	12	4.0	50
M5.0	0.8	4.0	10	15	4.0	50
M6.0	1.0	4.8	12	18	6.0	50
M8.0	1.25	6.0	16	24	6.0	50
M10	1.5	8.0	20	30	8.0	60
M12	1.75	10	24	36	10	75
M14	2.0	10	10.1	28	10	75
