FSUS End mill

Model Number

FSUS

Size

1.0,1.5,2.0,2.5,3.0,4.0,5.0,6.0,8.0,10.0,12.0,14.0,16.0,18.0,20.0

Customization

Accpet customized for analogues of other famous brand mills

Quick Details

1. Applicable materials:stainless steel SUS303, SUS304, SUS316L, etc. (<280HB).
2. The high coating hardness and excellent high-temperature oxidation resistance are more suitable for high hardness materials and high-speed machining fields.
3. Antique copper dot matrix heterogeneous coating, higher coating hardness and excellent high temperature oxidation resistance, more closely combined with the substrate.
4. Special surface post-treatment can effectively reduce friction, discharge chips more smoothly, and the quality of machined surface is better.

Inquiry Download

DESCRIPTION

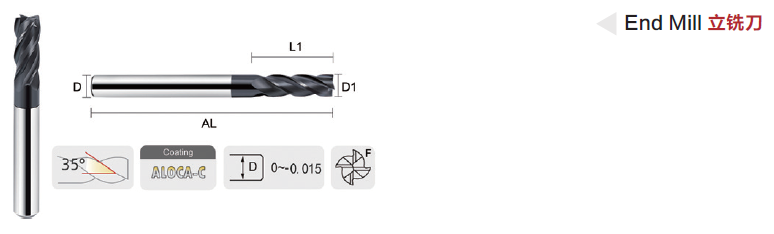

Specification


Order No.	Mode	Dimension
FSUS-EM-1.0	D1.0-50	4F / L1= D=4 AL=50
FSUS-EM-1.5	D1.5-50	4F / L1= D=4 AL=50
FSUS-EM-2.0	D2.0-50	4F / L1= D=4 AL=50
FSUS-EM-2.5	D2.5-50	4F / L1= D=4 AL=50
FSUS-EM-3.0	D3.0-50	4F / L1= D=4 AL=50
FSUS-EM-4.0	D4.0-50	4F / L1= D=4 AL=50
FSUS-EM-5.0	D5.0-50	4F / L1= D=5 AL=50
FSUS-EM-6.0	D6.0-50	4F / L1= D=6 AL=50
FSUS-EM-8.0	D8.0-60	4F / L1= D=8 AL=60
FSUS-EM-10.0	D10.-75	4F / L1= D=10 AL=75
FSUS-EM-12.0	D12.0-75	4F / L1= D=12 AL=75
FSUS-EM-14.0	D14.0-80	4F / L1= D=14 AL=80
FSUS-EM-16.0	D16.0-100	4F / L1= D=16 AL=100
FSUS-EM-18.0	D18.0-100	4F / L1= D=18 AL=100
FSUS-EM-20.0	D20.0-100	4F / L1= D=20 AL=100
* For other models or customizations, please consult the supplier>>

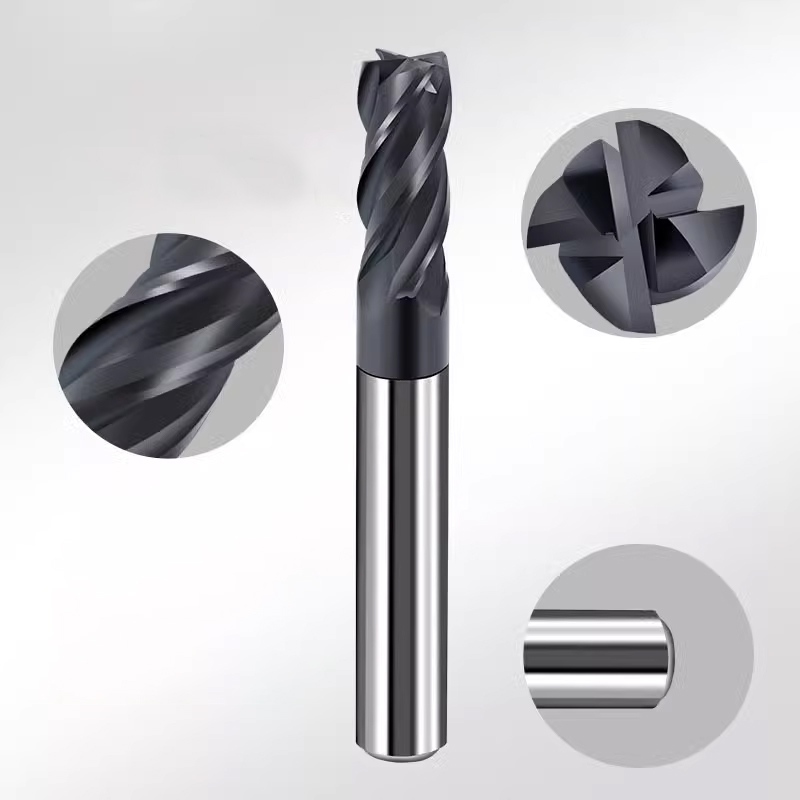

Feature

1. Solid tungsten steel milling cutter, Cutting edge passivation treatment.

2. Big Diameter core design, enhances seismic resistance, increases clamping precision, cutting tips are not easy to break.

3. Double cutting band, helix angle design increase wear-resisrance, reduce burrs and sticking under processing.

4. Unique fillet design of shank, install friendly, clamp safely, stability for milling.

Perameter

Product Name	Carbide Square End Mill
Tool Type	Milling Cutter
Texture	Tungsten Carbide
Flute	4F
Diameter	D1-D20
Shank Diameter	4D-20D
Blade Lenght	3-45mm
Full Lenght	50-100mm
Coating	ALOCA-C
Helical Angle	35°
