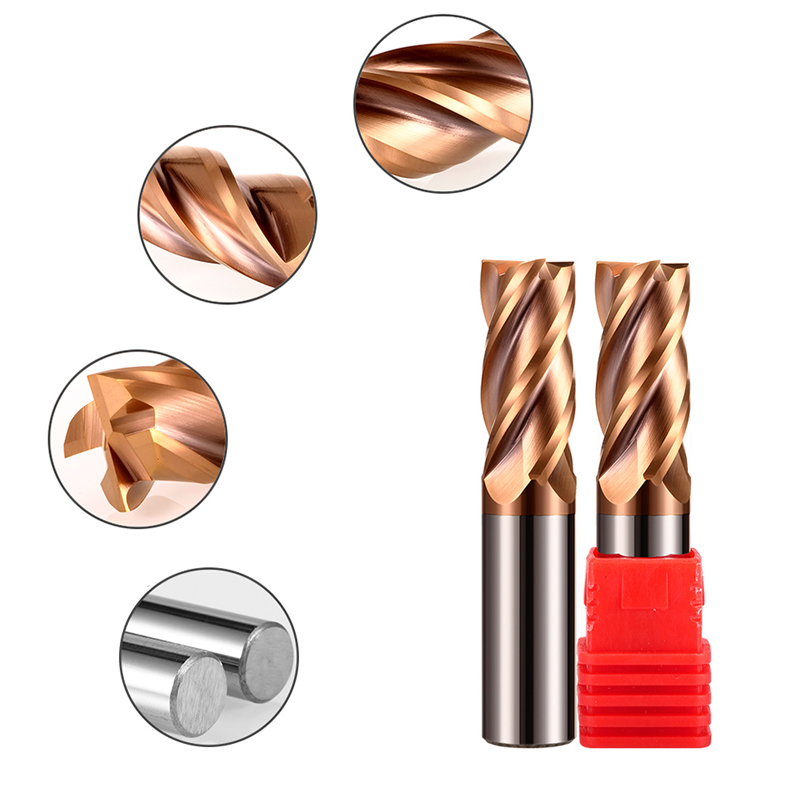

Solid Spiral End Mill Tool

Model Number

FSUS-EM-6.0

Size

4D 6D 8D 10D 12D 14D 16D 18D 20D

Customization

Available

Quick Details

Material: solid carbide
Coating: AlTiN
Shank Type: Straight Shank
Helix Angle: 30°
Type: Flat End Mill

Inquiry Download

DESCRIPTION

Specification

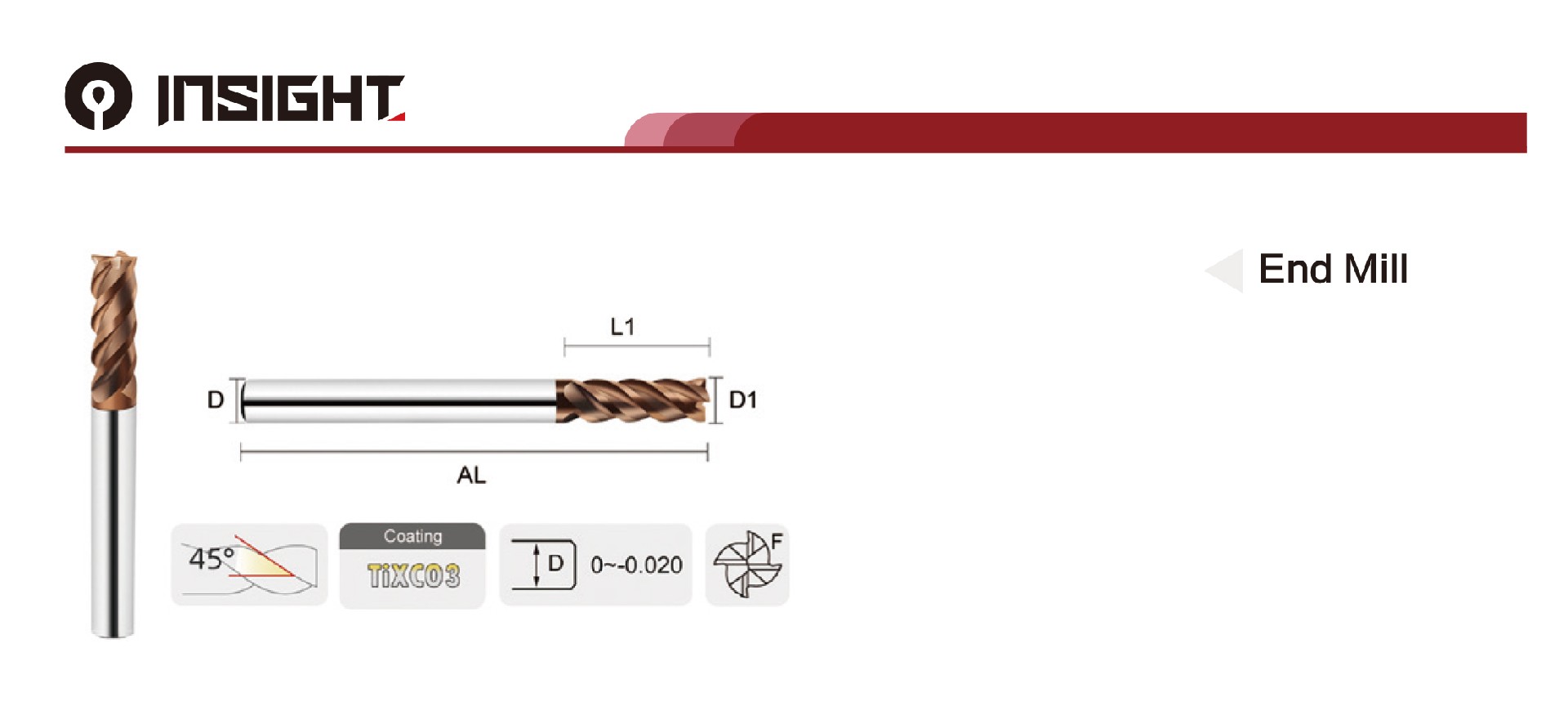

Order NO.	Mode	D1	L1	F	D	AL
H-EM-1.0	D1.0-50	D1.0	3	4F	4D	50
H-EM-1.5	D1.5-50	D1.5	4	4F	4D	50
H-EM-2.0	D2.0-50	D2.0	6	4F	4D	50
H-EM-2.5	D2.5-50	D2.5	8	4F	4D	50
H-EM-3.0	D3.0-50	D3.0	8	4F	4D	50
H-EM-4.0	D4.0-50	D4.0	11	4F	4D	50
H-EM-5.0	D5.0-50	D5.0	13	4F	6D	50
H-EM-6.0	D6.0-50	D6.0	16	4F	6D	50
H-EM-8.0	D8. 0-60	D8.0	20	4F	8D	60
H-EM-10.0	D10.0-75	D10.0	25	4F	10D	75
H-EM-12.0	D12.0-75	D12.0	30	4F	12D	75
H-EM-14.0	D14.0- 80	D14.0	35	4F	14D	80
H-EM-16.0	D16.0-100	D16.0	36	4F	16D	100
H-EM-18.0	D16.0-100	D18.0	38	4F	18D	100
H-EM-20.0	D20.0-100	D20.0	45	4F	20D	100
* For other models or customizations, please consult the supplier>>

Feature

The high coating hardness and excellent high-temperature oxidation resistance are more suitable for high hardness materials and high-speed machining fields.

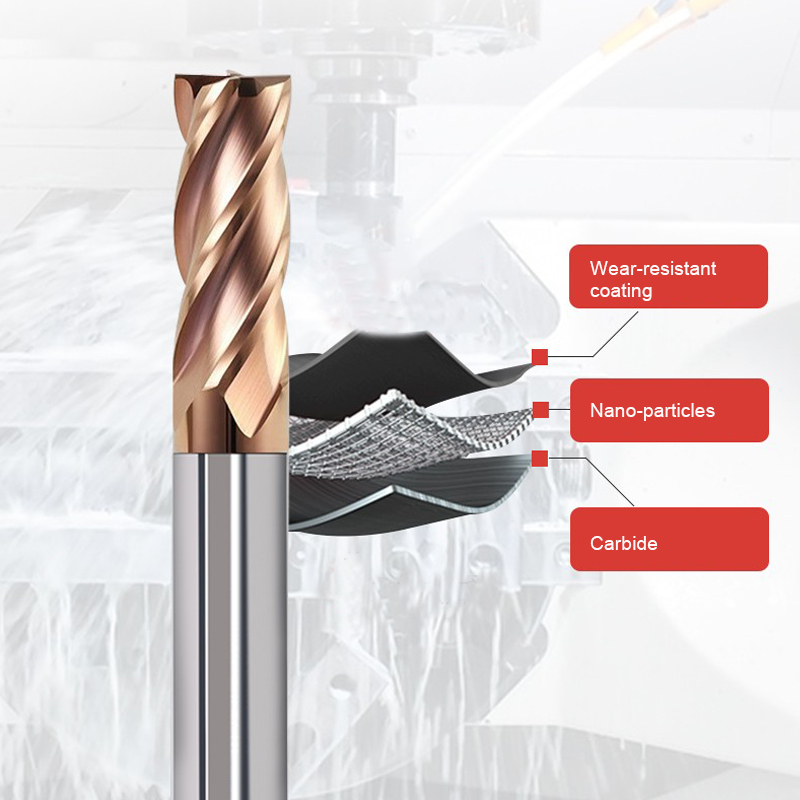

Antique copper dot matrix heterogeneous coating, higher coating hardness and excellent high temperature oxidation resistance, more closely combined with the substrate.
Special surface post-treatment can effectively reduce friction, discharge chips more smoothly, and the quality of machined surface is better.
Applicable materials:HRC50-68,pre hardened steel, hardened steel, cast iron, ductile iron, etc.
