HANWHA SL35 Guide Bushes

Model Number

SL-35, SL-38

Size

d45*L82*D52, Thread M42*1.0

Customization

Sample

Quick Details

1. The overall precision grinding is more guaranteed.
2. Using imported CNC grinding machine precision grinding accuracy is more guaranteed.
3. Choose high quality tungsten steel material, ensure the good quality of the collet.
4. Heat treatment and cold drawing herdening.
5. Hardening and wear-resistant durable longer service life.

Inquiry Download

DESCRIPTION

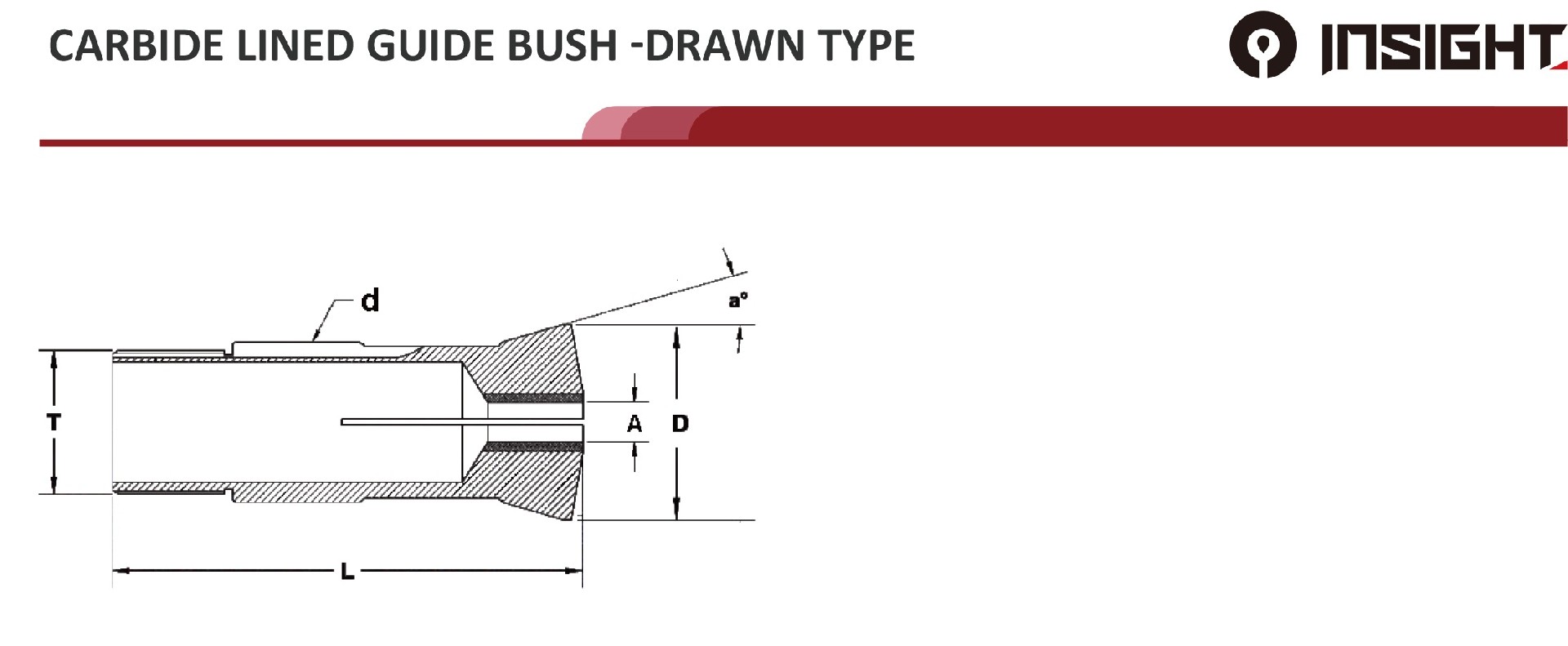

guide bush.jpg

Model	d	L	D	Thread	α
HANEX11，SL12	ø 18.0	60	ø 22.0	M18X1.0	15°
HANEX17，ML18-G	ø 22.0	68	ø 29.0	M22X1.0	16°
HANEX20	ø 28.0	82	ø 34.0	M25X1.0	16°
HANEX25	ø 34.0	87.5	ø 41.0	M34X1.0	10°
SL-32	ø 42.0	82	ø 49.0	M40X1.0	16°
SL-35,SL-38	ø 45.0	82	ø 52.0	M42X1.0
SL-38HP-II	ø 46.0	82	ø 53.0	M45X1.0
