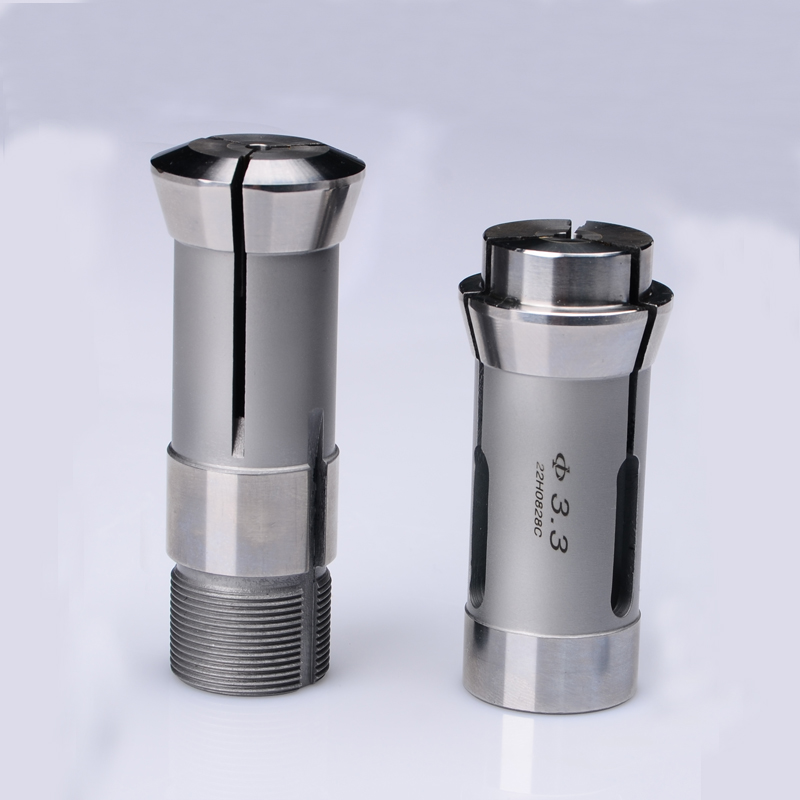

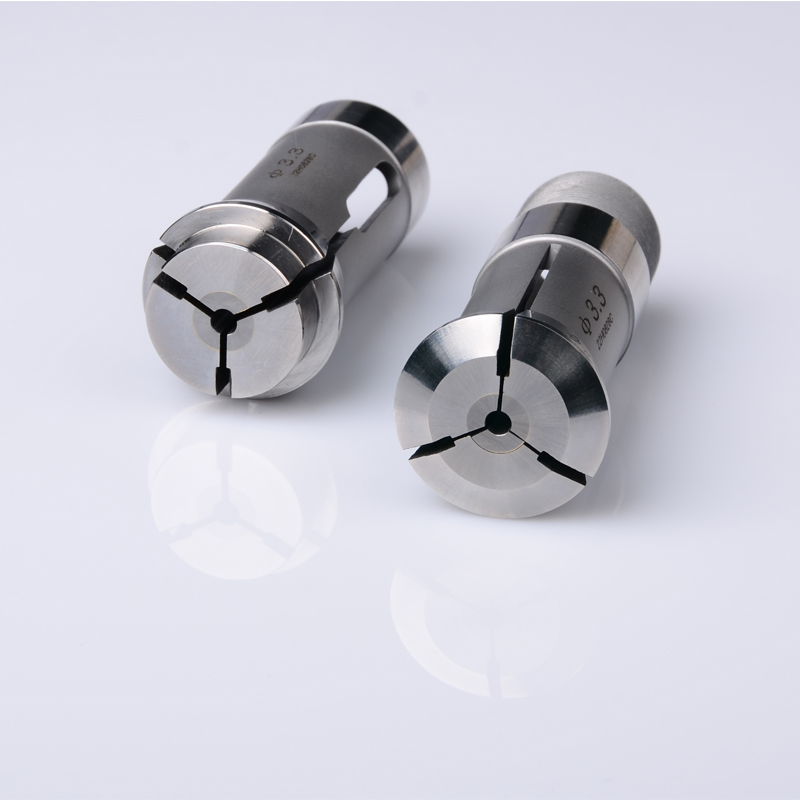

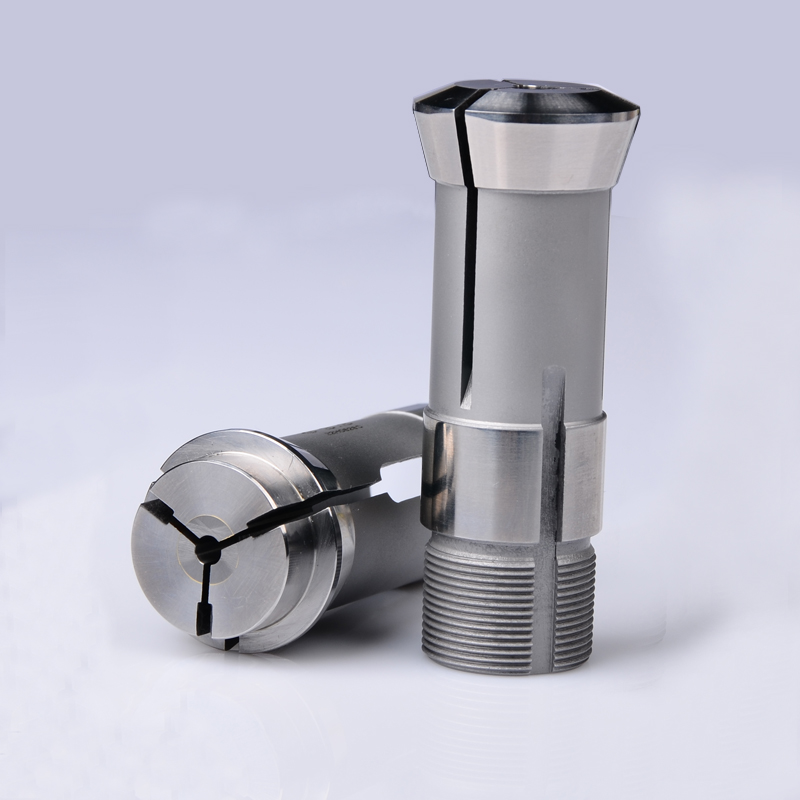

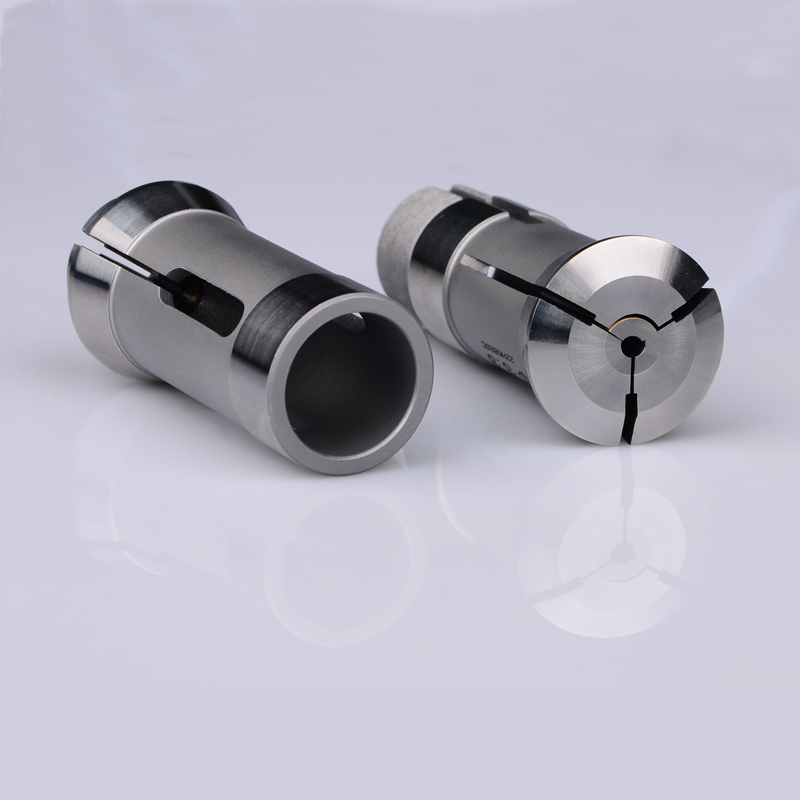

MANURHIN K-MX 26 Guide Bush

Model Number

3733E, 451.001, T34/B227, CD25

Size

d34*L87.5*D41, Thread M34*1.0

Customization

<ul style="box-sizing: border-box; padding: 0px; color: rgb(42, 43, 46); font-family: "PingFang SC", "Segoe UI", Arial, "Microsoft

Quick Details

1. High frequency quenching treatment.
2. Effectively avoiding deformation and cracking through horse body heat treatment.
3. Support non-standard customization.
4. Tungsten Steel is made of extend the service life of the guide bush.

Inquiry Download

DESCRIPTION

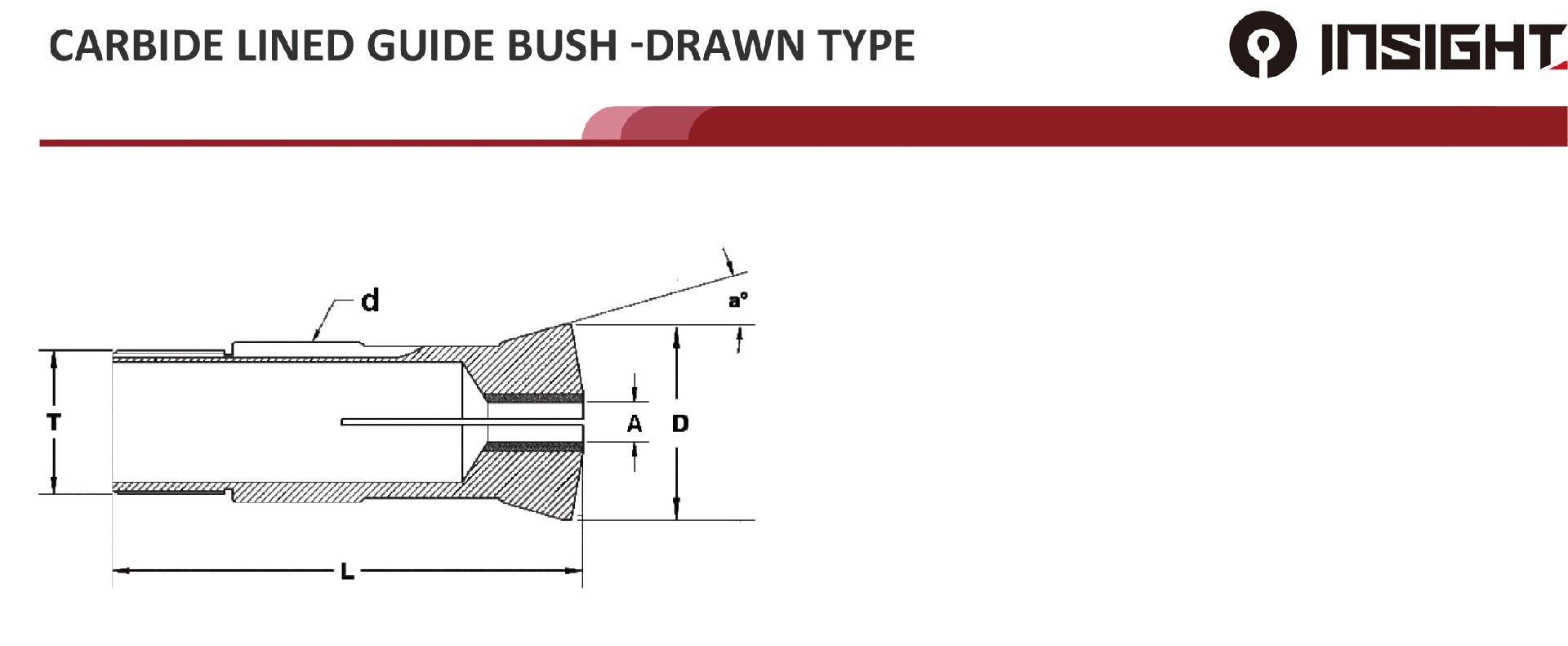

guide bush.jpg

Model	d	L	D	Thread	α
Swing 13,Traminer 13	ø 18.0	60	ø 22.0	M16X1.0	30°
Twin 13,Decotum 16	ø 22.0	68	ø 29.0	M22X1.0	16°
Traminer 16	ø 22.0	68	ø 29.0	M19X1.0	16°
K-MX,Swing,Traminer,Twin 20	ø 28.0	82	ø 38.0	M25X1.0	30°
K-MX 26	ø 34.0	87.5	ø 41.0	M34X1.0	10°
Mirabel PM 32	ø 42.0	82	ø 49.0	M40X1.0	16°
