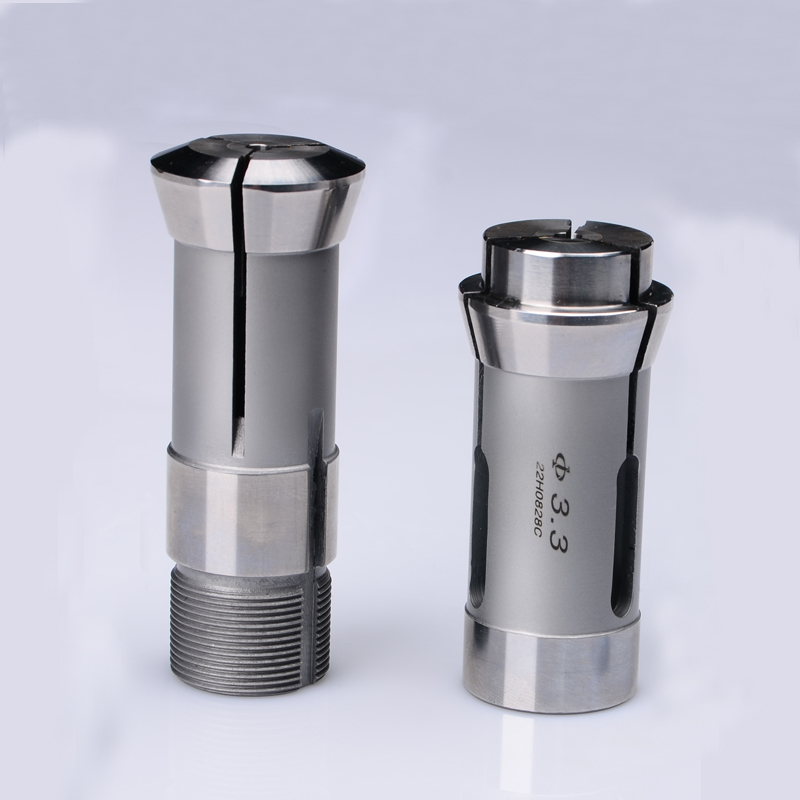

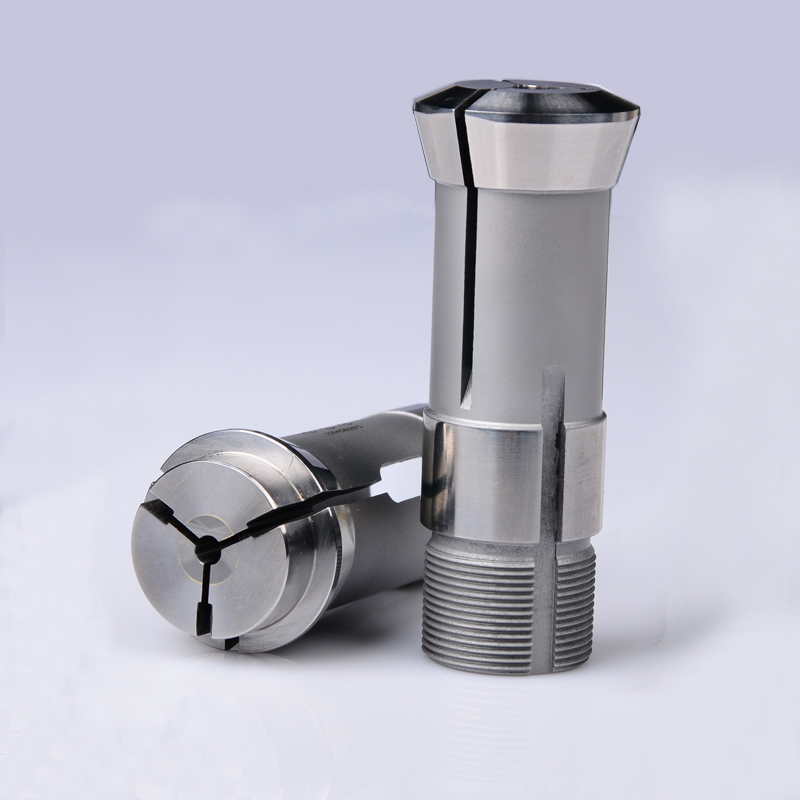

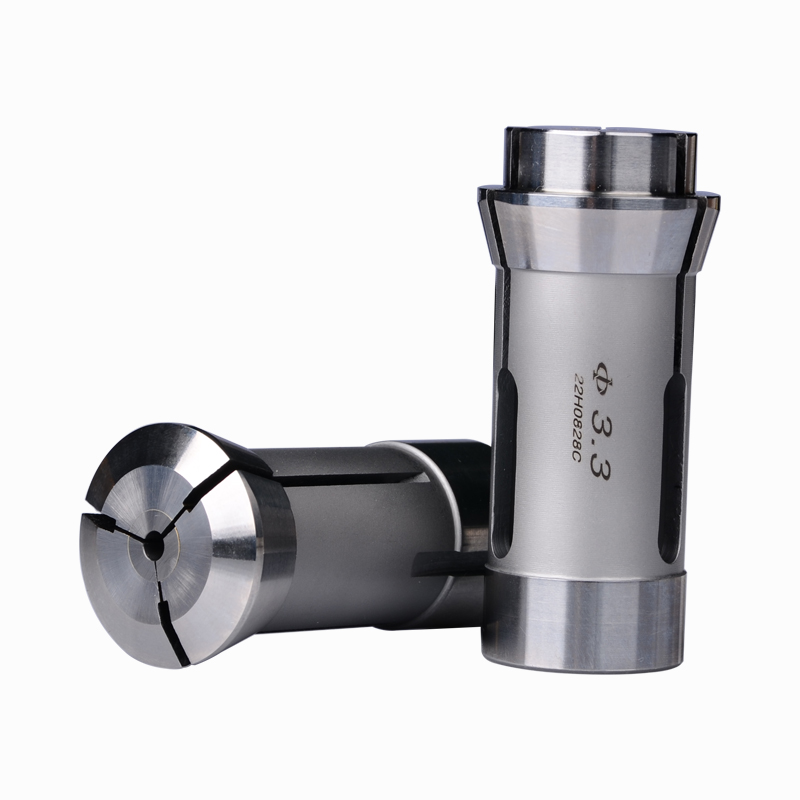

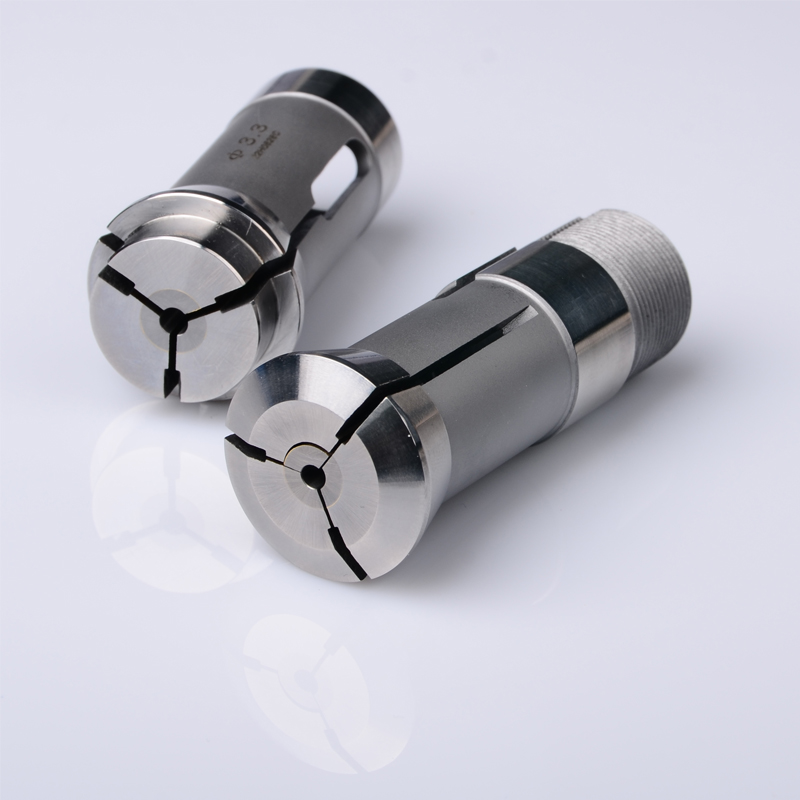

TSUGAMI B012 Guide bush

Model Number

487.001, P1653D

Size

d22*L70.5*D26, Thread M20*1.0

Customization

Non-standard

Quick Details

1. Effectively avoiding deformation and cracking through horse body heat treatment.
2. Stable clamping high elasticity, and stable processing.
3. Based on Proven Taiwanese technology, We also use the imported CNC griner which make sure of the stable precision product.
4. Guide bush hardness rigidity≥92HRC.
5. Support non-standard customization.

Inquiry Download

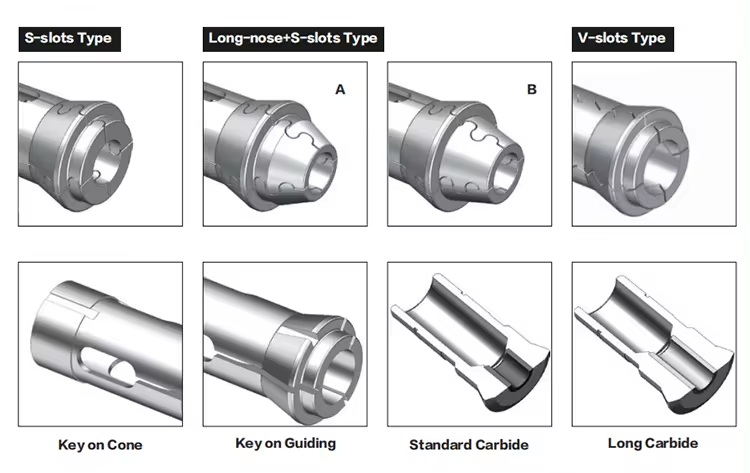

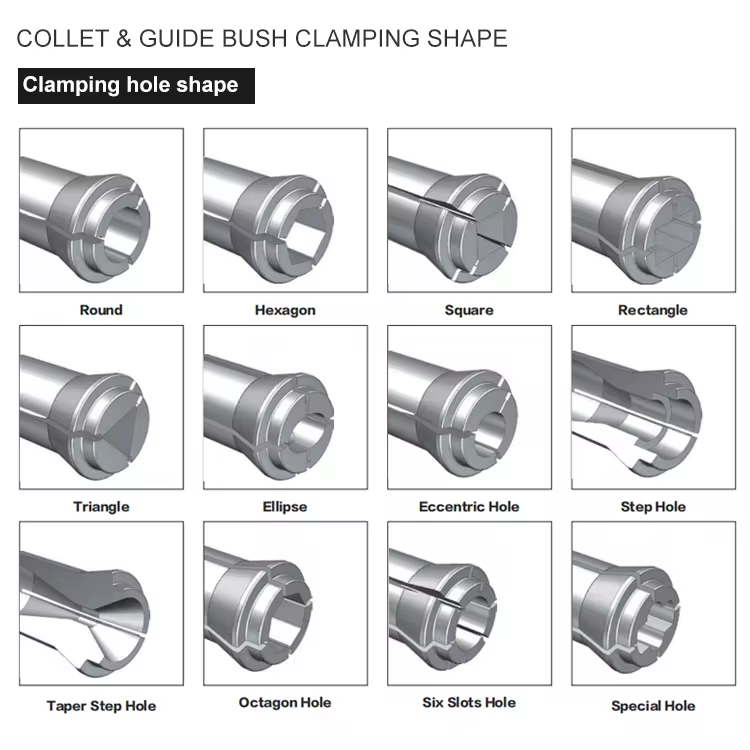

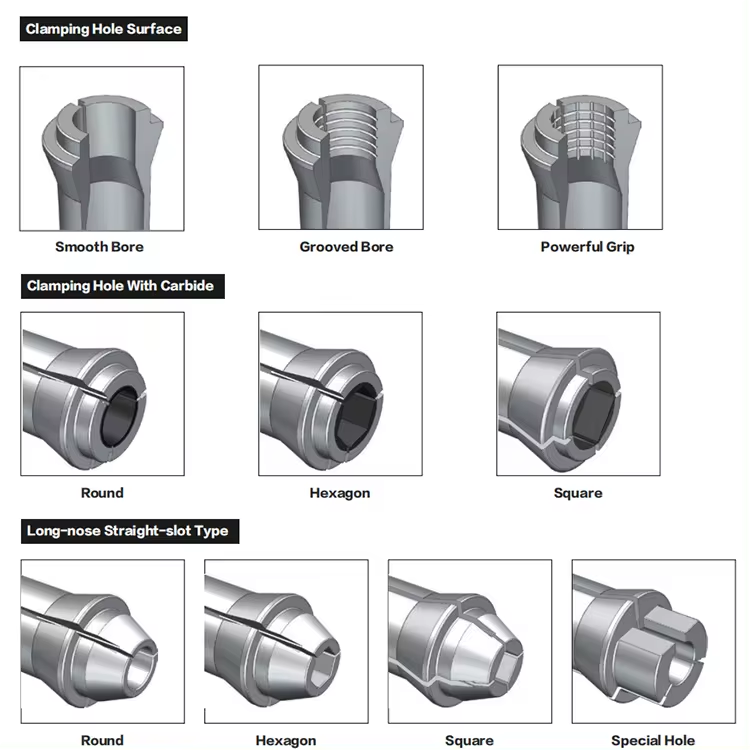

DESCRIPTION

INSIGHT Collet Catalogue-13.jpg

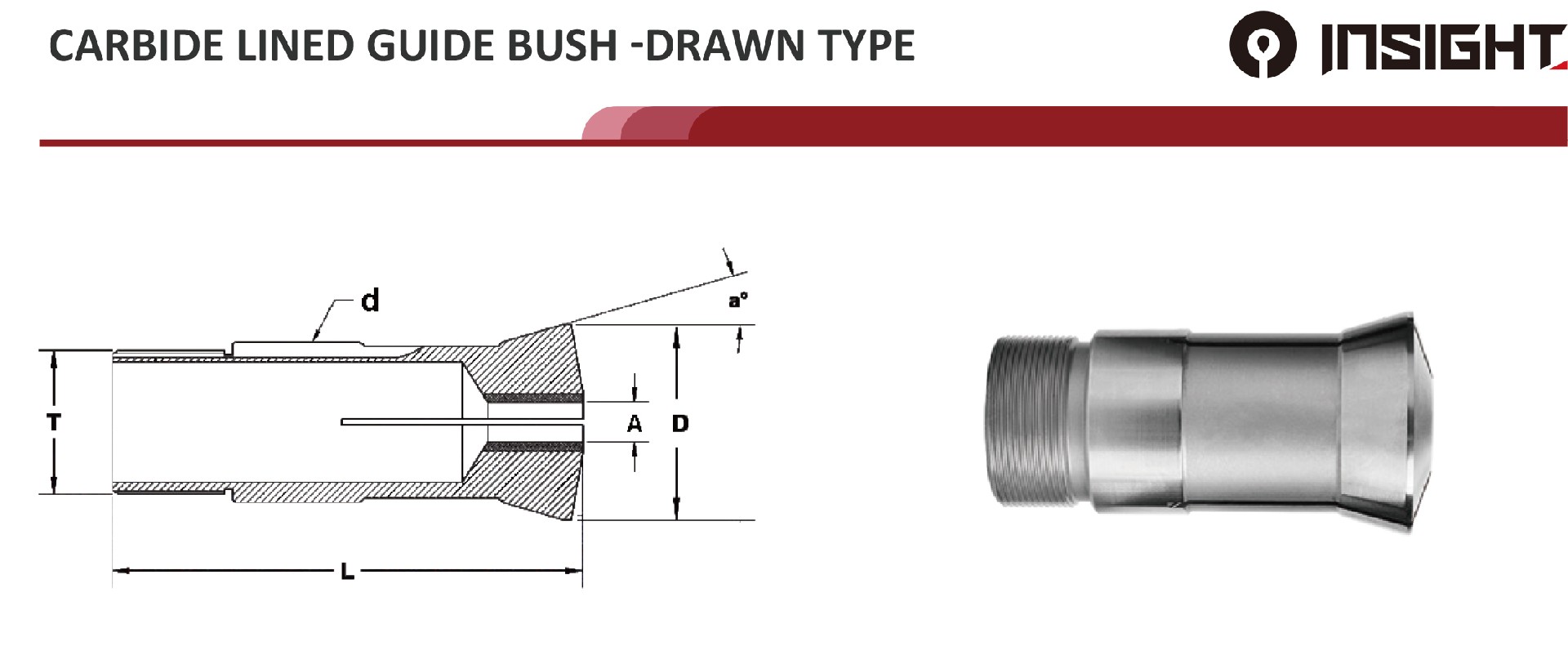

Model	d	L	D	Thread	α
NP-4W	ø 11.0	52	ø 14.5	M10X0.75	16°
T7，BOO7，BM07	ø 12.0	50	ø 15	M12X1.0	15°
L10	ø 15.0	54	ø 19.0	M14X1.0	16°
NT-11,NP-11	ø 18.0	60	ø 22.0	M18X1.0	15°
BO12	ø 22.0	70.5	ø 26.0	M20X1.0	15°
NP-17，NP-16，NT-17/BS12	ø 23	72	ø 28.0	M22X1.0	16°
NP-20,BS20，BO18，BS18	ø 30.0	70	ø 36.0	M28X1.0	16°
BO20-CV	ø 26.0	77	ø 29.0	M25X1.0	16°
BA-26	ø 33.0	70	ø 38.0	M30X1.0
BA-26L	ø 32.0	70	ø 38.0	M30X1.0
S-25,BS-26	ø 34.0	87.5	ø 41.0	M34X1.0	10°
B032	ø 41	82	ø 46	M38X1.0	10°
NP-32	ø 42.0	82	ø 49.0	M40X1.0	16°
BH38	ø 48.0	81	ø 54.0	M46X1.0	10°
