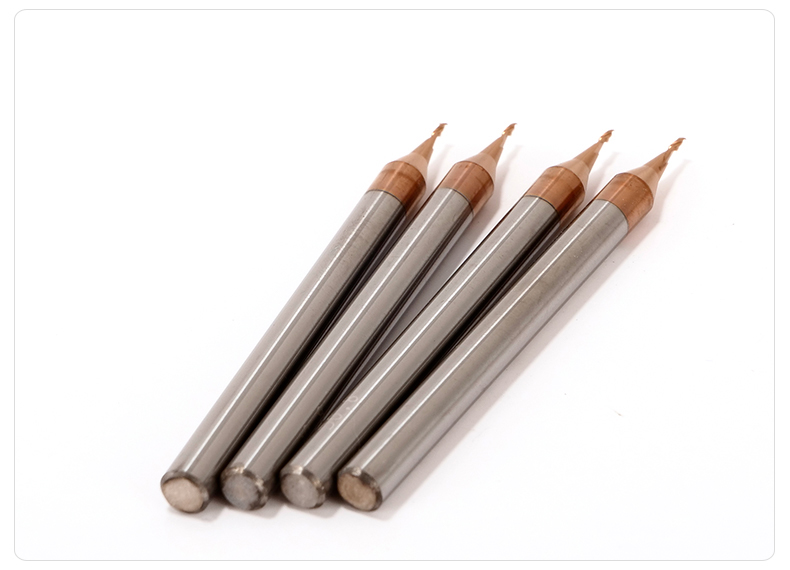

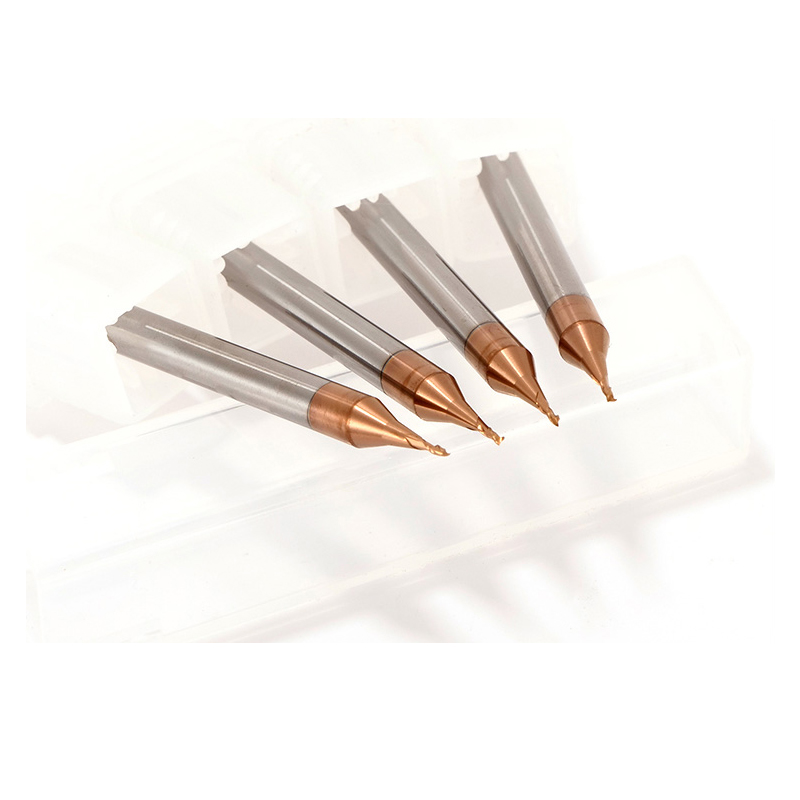

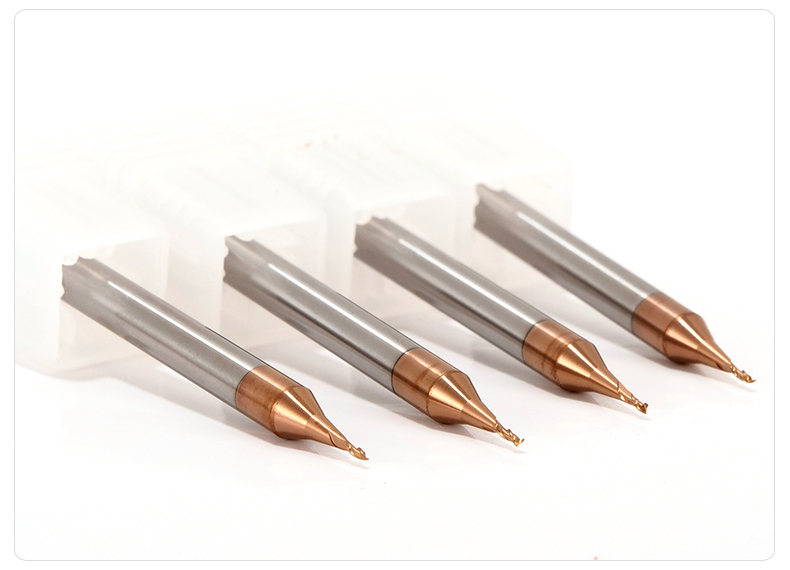

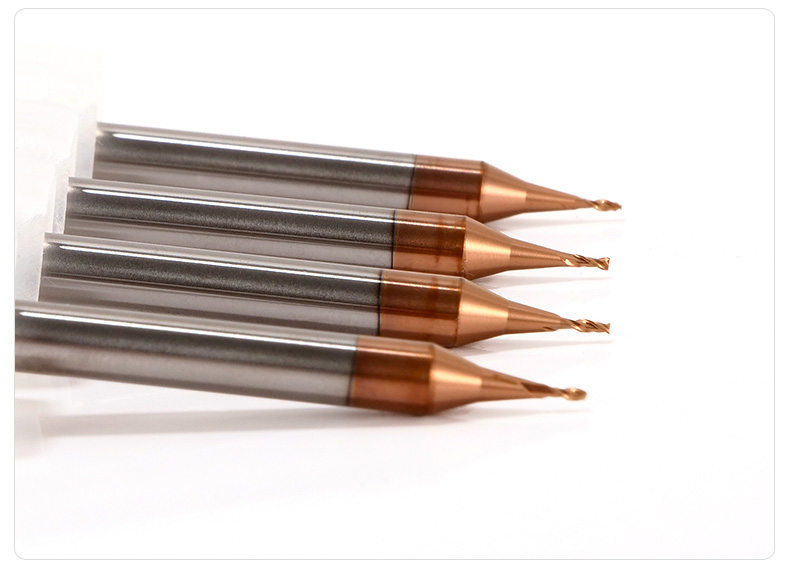

2 Flute Micro Diamter Square End Mill

Model Number

Micro Diamter Square End Mill

Size

All sizes

Customization

OEM/ODM

Quick Details

1. Realized long tool life against high hardened steels (48~65 HRC).
2. Improved milling deflection and accuracy by advanced flute design.
3. For machining of high-hardness materials.
4. Excellent chip removal performance enables high efficiency.
5. High Sharpness, sharp land, smooth cutting, high precision grinding technology.
6. Mirror polishing, smooth cutting without blackening, no hair, low wear rate.

Inquiry Download

DESCRIPTION

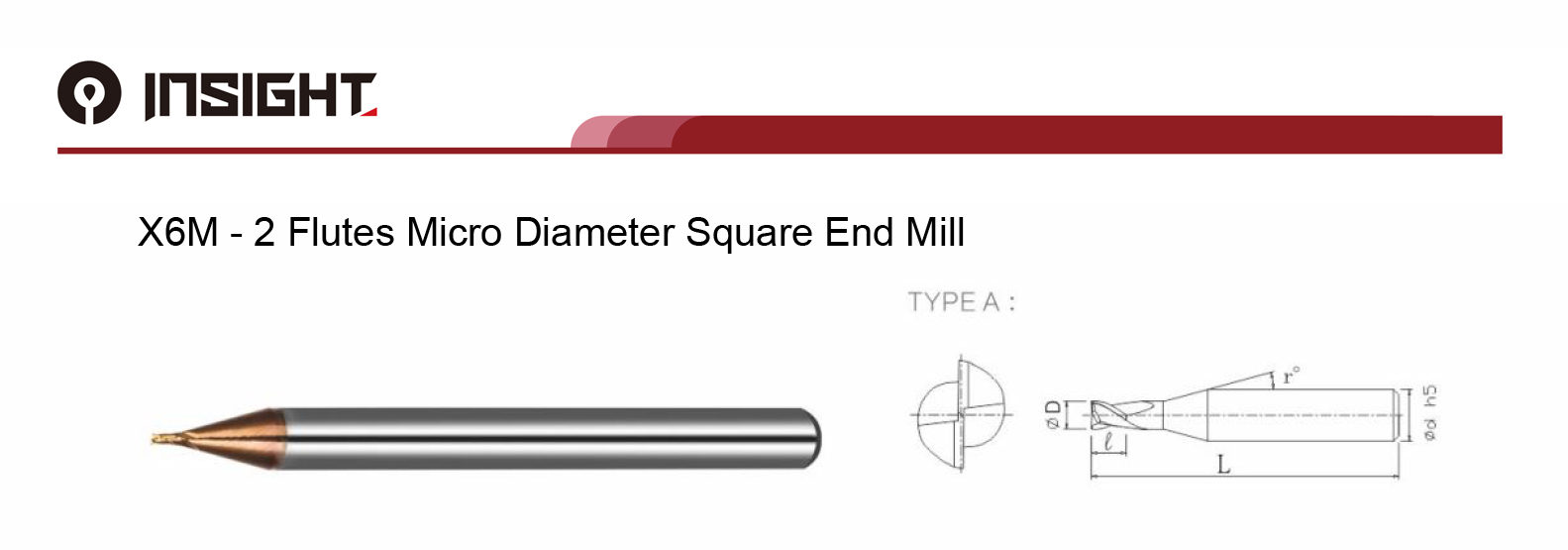

Model No. Specification Cutting Dia Cutting Length Shank Dia Full Length Neck Taper Shape
X6MSE0012 0.10.15L 0.1 0.15 4 45 15° A
X6MSE00152 0.150.2L 0.15 0.2 4 45 15° A
X6MSE0022 0.20.4L 0.2 0.4 4 45 15° A
X6MSE00252 0.250.5L 0.25 0.5 4 45 15° A
X6MSE0032 0.30.6L 0.3 0.6 4 45 15° A
X6MSE00352 0.350.7L 0.35 0.7 4 45 15° A
X6MSE0042 0.40.8L 0.4 0.8 4 45 15° A
X6MSE00452 0.450.9L 0.45 0.9 4 45 15° A
X6MSE0052 0.51L 0.5 1 4 45 15° A
X6MSE0062 0.61.2L 0.6 1 4 45 15° A
X6MSE0072 0.71.4L 0.7 1.4 4 45 15° A
X6MSE0082 0.81.6L 0.8 1.6 4 45 15° A

Model No.	Specification	Cutting Dia	Cutting Length	Shank Dia	Full Length	Neck Taper	Shape
X6MSE0012	0.1*0.15L	0.1	0.15	4	45	15°	A
X6MSE00152	0.15*0.2L	0.15	0.2	4	45	15°	A
X6MSE0022	0.2*0.4L	0.2	0.4	4	45	15°	A
X6MSE00252	0.25*0.5L	0.25	0.5	4	45	15°	A
X6MSE0032	0.3*0.6L	0.3	0.6	4	45	15°	A
X6MSE00352	0.35*0.7L	0.35	0.7	4	45	15°	A
X6MSE0042	0.4*0.8L	0.4	0.8	4	45	15°	A
X6MSE00452	0.45*0.9L	0.45	0.9	4	45	15°	A
X6MSE0052	0.5*1L	0.5	1	4	45	15°	A
X6MSE0062	0.6*1.2L	0.6	1	4	45	15°	A
X6MSE0072	0.7*1.4L	0.7	1.4	4	45	15°	A
X6MSE0082	0.8*1.6L	0.8	1.6	4	45	15°	A
