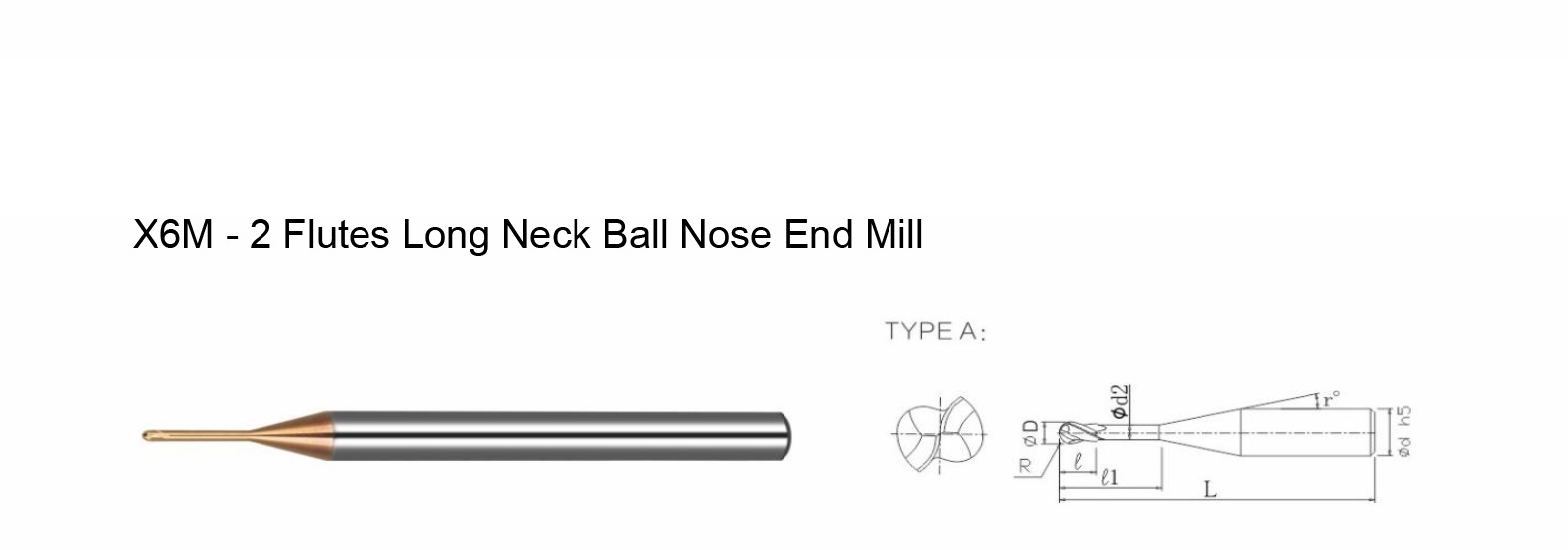

Model No.	Radius	Neck Length	Cutting Length	Cutting Dia	Neck Dia	Shank Dia	Full Length
X6MNB0201	0.1	1	0.16	0.2	0.18	4	45
X6MNB02015	0.1	1.5	0.16	0.2	0.18	4	45
X6MNB0202	0.1	2	0.16	0.2	0.18	4	45
X6MNB0301	0.15	1	0.24	0.3	0.27	4	45
X6MNB03015	0.15	1.5	0.24	0.3	0.27	4	45
X6MNB0302	0.15	2	0.24	0.3	0.27	4	45
X6MNB0303	0.15	3	0.24	0.3	0.27	4	45
X6MNB0304	0.15	4	0.24	0.3	0.27	4	45
X6MNB0305	0.15	5	0.24	0.3	0.27	4	45
X6MNB0401	0.2	1	0.32	0.4	0.37	4	45
X6MNB04015	0.2	1.5	0.32	0.4	0.37	4	45
X6MNB0402	0.2	2	0.32	0.4	0.37	4	45
X6MNB0403	0.2	3	0.32	0.4	0.37	4	45
X6MNB0404	0.2	4	0.32	0.4	0.37	4	45
X6MNB0406	0.2	6	0.32	0.4	0.37	4	45
X6MNB1504	0.75	4	1.2	1.5	1.45	4	50
X6MNB1506	0.75	6	1.2	1.5	1.45	4	50
X6MNB1508	0.75	8	1.2	1.5	1.45	4	50
X6MNB1510	0.75	10	1.2	1.5	1.45	4	50
X6MNB1512	0.75	12	1.2	1.5	1.45	4	50
X6MNB1516	0.75	16	1.2	1.5	1.45	4	50
X6MNB2006	1	6	1.6	2	1.94	4	50
X6MNB2008	1	8	1.6	2	1.94	4	50
X6MNB2010	1	10	1.6	2	1.94	4	50
X6MNB2012	1	12	1.6	2	1.94	4	50
X6MNB2016	1	16	1.6	2	1.94	4	50
X6MNB3008L	1.5	8	2.4	3	2.85	6	60
X6MNB3012L	1.5	12	2.4	3	2.85	6	60
X6MNB3016L	1.5	16	2.4	3	2.85	6	60
X6MNB3020L	1.5	20	2.4	3	2.85	6	60
X6MNB3025L	1.5	25	2.4	3	2.85	6	75
X6MNB3030L	1.5	30	2.4	3	2.85	6	75
X6MNB4012L	2	12	3.2	4	3.8	6	60
X6MNB4016L	2	16	3.2	4	3.8	6	60
X6MNB4020L	2	20	3.2	4	3.8	6	60
X6MNB4025L	2	25	3.2	4	3.8	6	75
X6MNB4030L	2	30	3.2	4	3.8	6	75

Turning

Boring Tool

Quick Change Boring Tool

Turning Insert

Knurling Tool

Milling

Carbide End Mill

Diamond End Mill

Carbide Thread Mill

Drilling

Carbide Drill

Diamond Drill

Threading

Machine Tap

Collets

Lathe Collet

Guide Bushes

Barfeed Collet

ER Collet

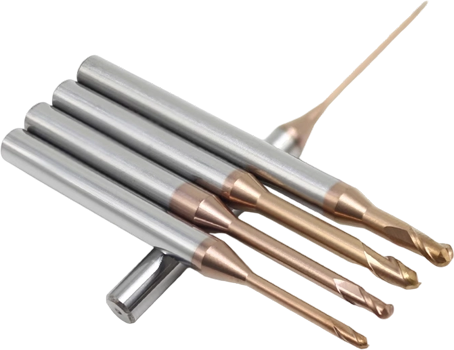

Long neck ball carbide end mill cutter
