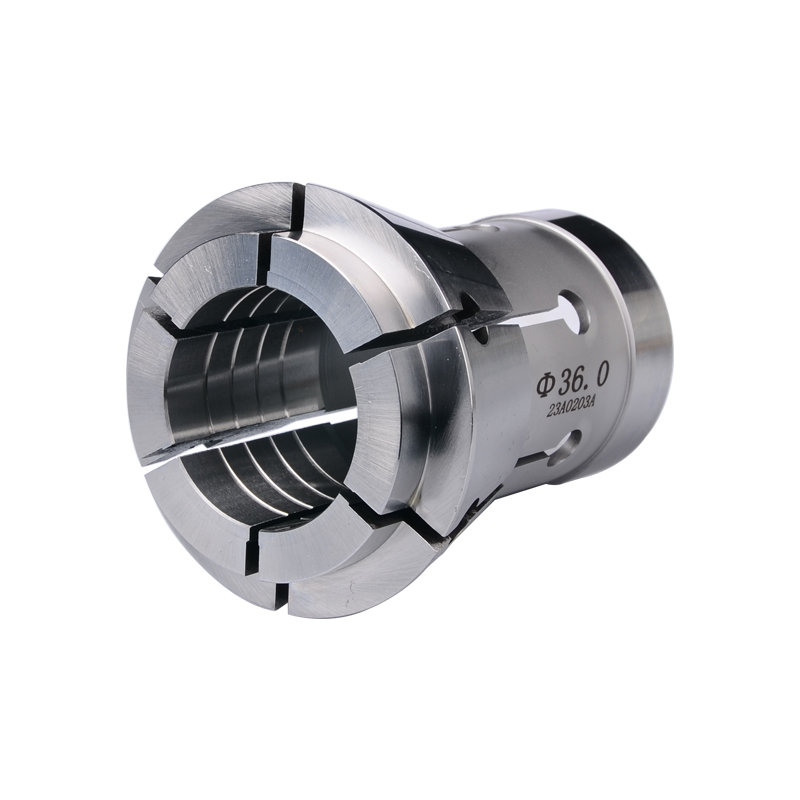

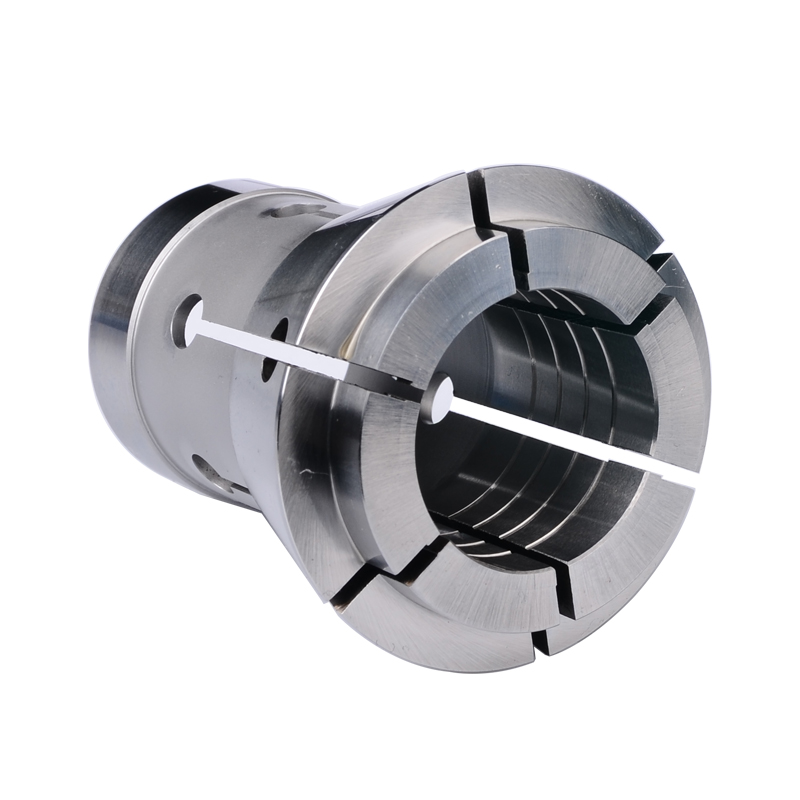

RIKEN PULL-40 Pull Type Collets

Model Number

RIKEN PULL 40 Pull Type Collet

Size

d55*L110*D66, Thread M50*1.5

Customization

OEM and ODM

Quick Details

1. Alloy spring steel has high elasticity high strength good clamping and fastening and stable cutting.
2. After high-frequency quenching treatment good low-temperature impact toughness and good clamping performance make clamping more stable.
3. Based on Proven Taiwanese technology, We also use the imported CNC griner which make sure of the stable precision product.
4. Guide Bush of Main & Sub Collet (Hardness Rigidity≥92HRC)
5. Our products are good for imported CNC machine tools like TONORS, SECO, CITIZEN, TSUGAMI, STAR, NOMURA and so on.

Inquiry Download

DESCRIPTION

INSIGHT Collet Catalogue-13.jpg

Model	d	L	D	α	Thread M
PULL-25	ø 36.0	88	ø 44.0	10°	32X1.5
PULL-40	ø 55.0	110	ø 66.0	10°	50X1.5
PULL-40	ø 83.0	132	ø 97.0	10°	78x2.0
