SENDAY SD-25 Pull Type Collets

Model Number

SENDAY SD-25, SD-32, SD-34, SD-45, SD-52 Pull Type Collet Chuck

Size

SENDAY SD-25: d34.0*L84*D41.5, Thread M 29X20f”

Customization

OEM, Drawing

Quick Details

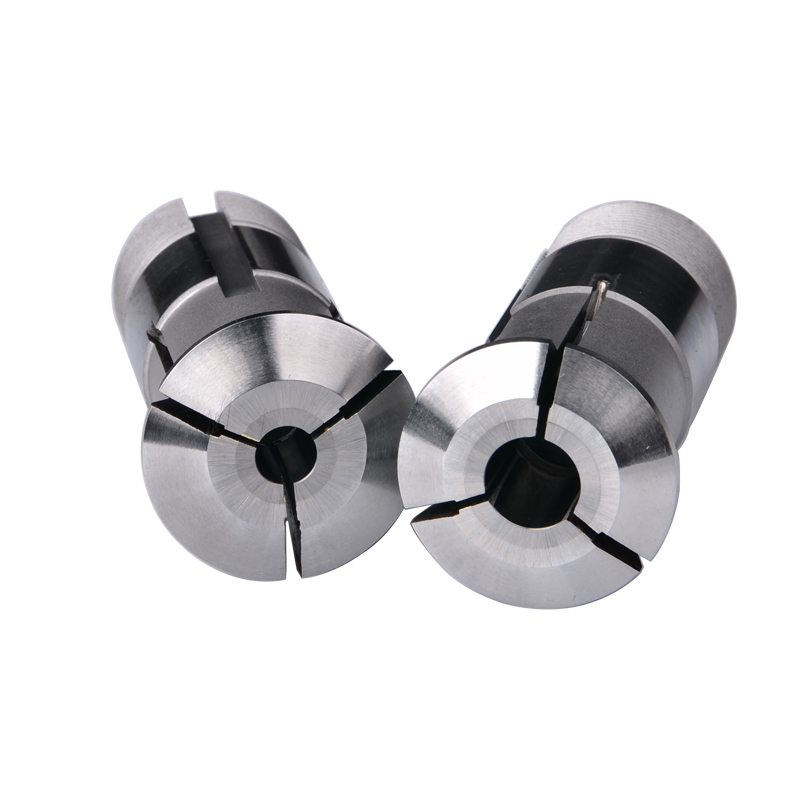

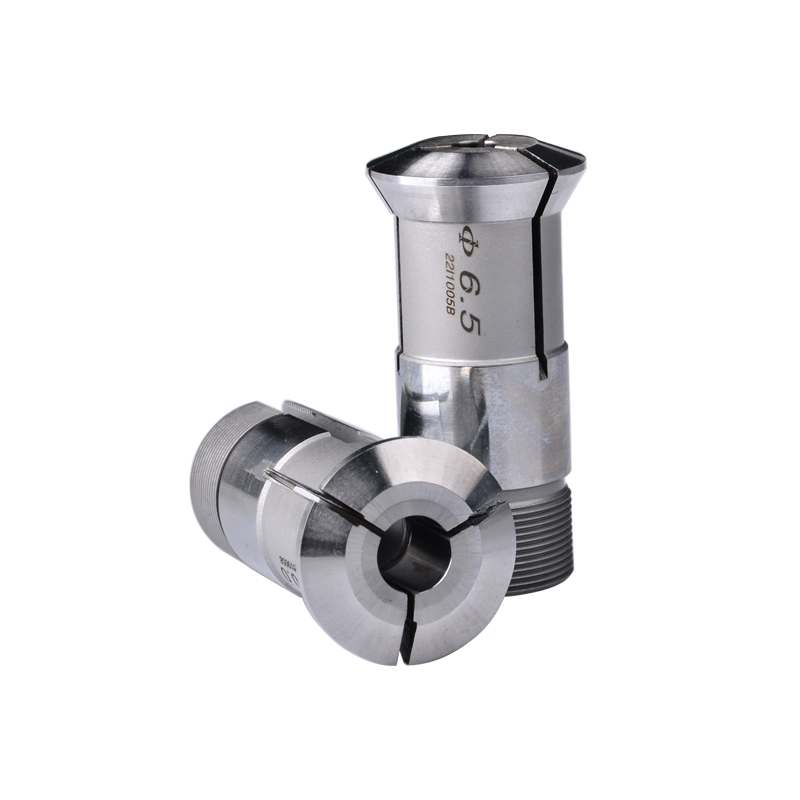

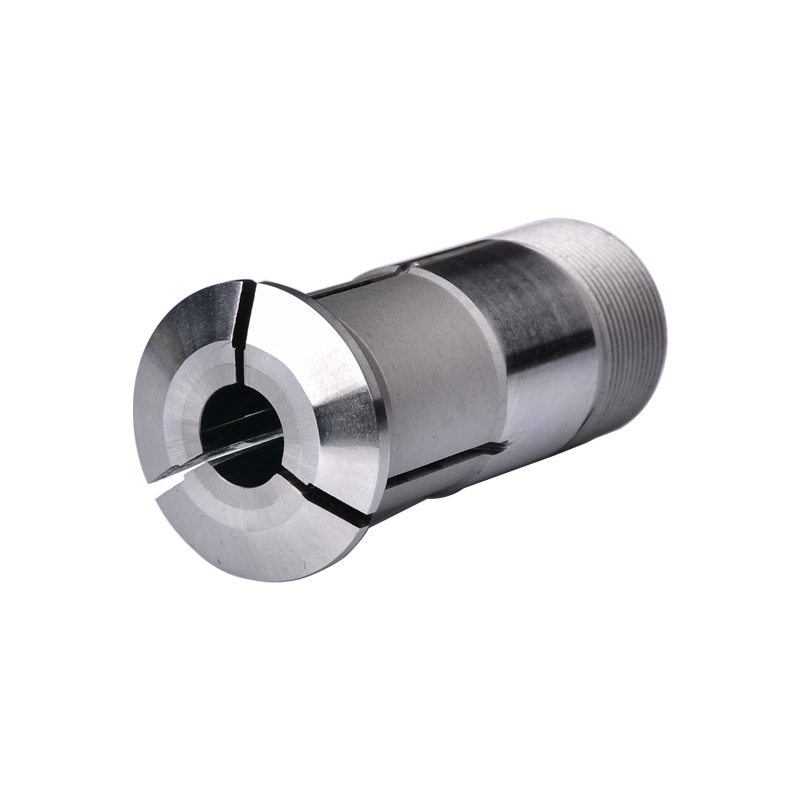

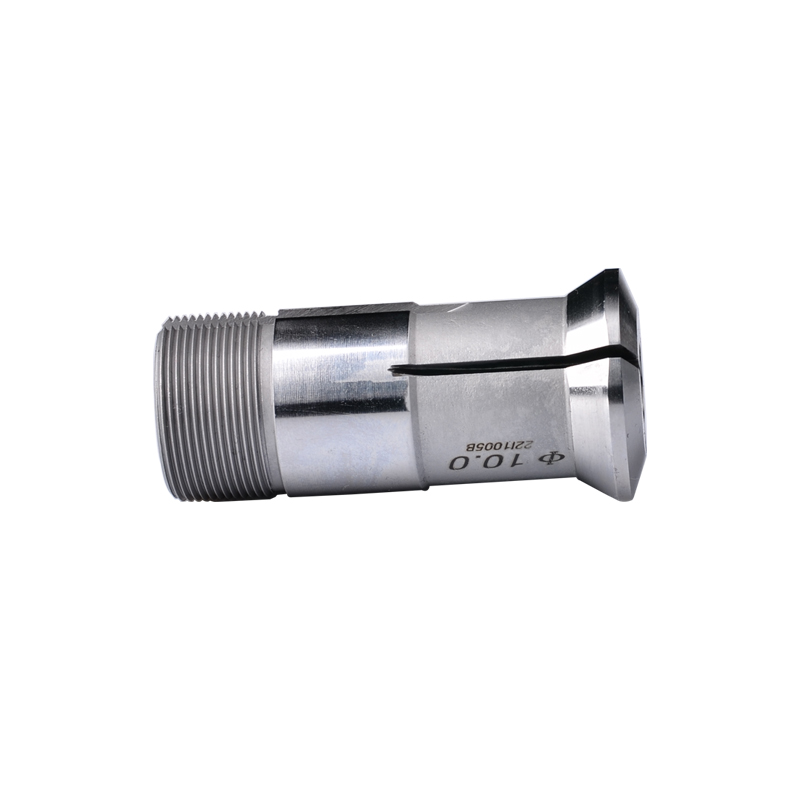

1. High Precision SENDAY SD-25 Tungsten Carbide Pull Type Collets.
2. Pull Type Collet With Compact Designs And Pull-back Actions for Secure And Precise Clamping.
3. Support Non-standard Customization.
4. Davenport Burring, Davenport Serro B Provides Samples.

Inquiry Download

DESCRIPTION

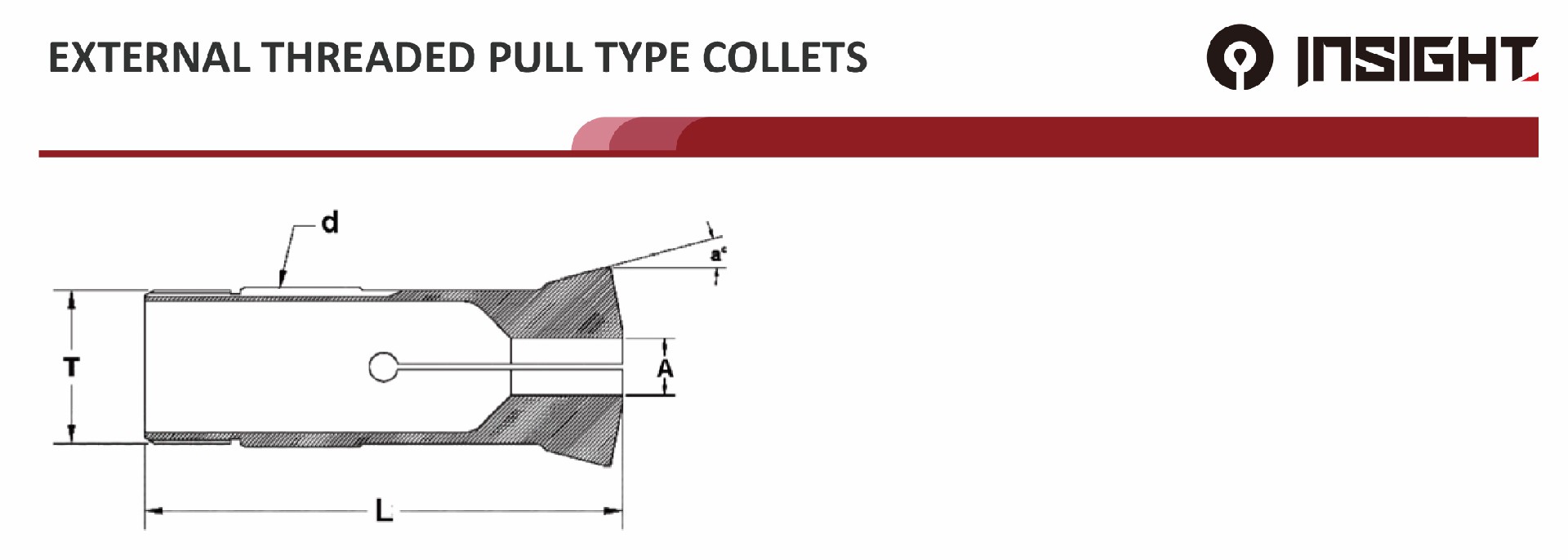

Pull Type Collet.jpg

Model	d	L	D	Thread M
SD-25	ø 34.0	84	ø 41.5	29X20f”
SD-32	ø 42.0	95	ø 49.0	38X20f”
SD-34	ø 42.0	95.5	ø 51.0	36X1.5
SD-45	ø 56.0	120	ø 68.0	51X20f”
SD-52	ø 61.0	120	ø 68.0	56X20f”
