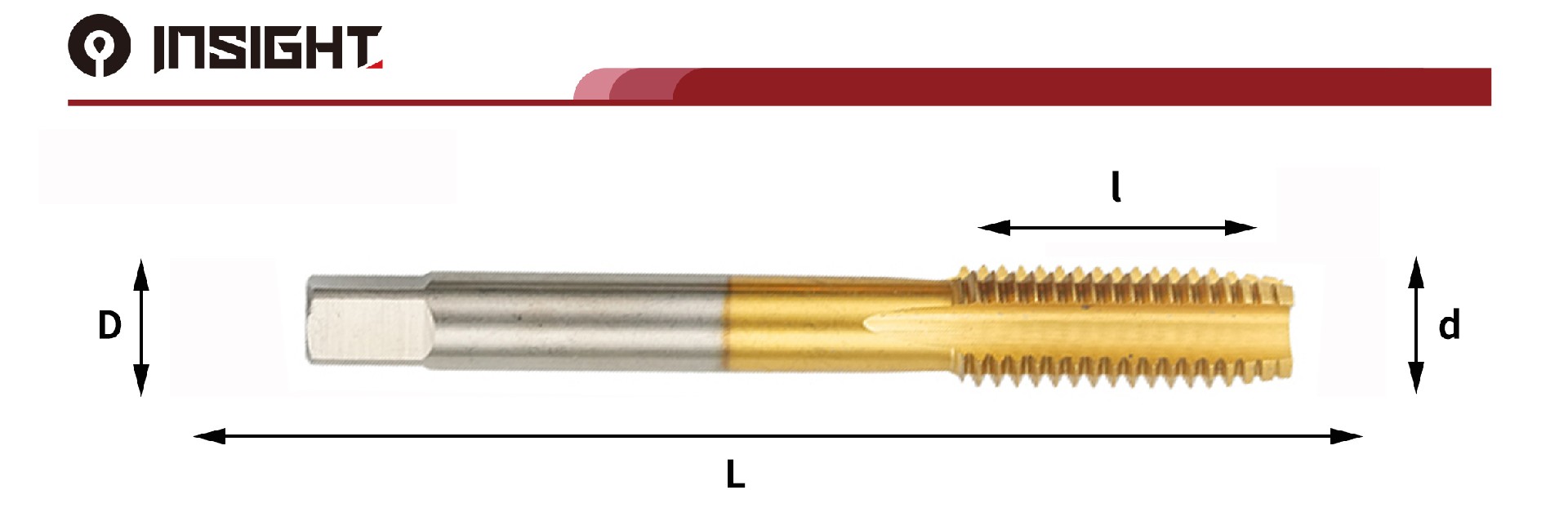

Model | l | D | L |
M2*0.4 | 11 | 3 | 43 |
M2.5*0.45 | 12 | 3 | 46 |
M3*0.5 | 13 | 4 | 49 |
M4*0.7 | 15 | 5 | 55 |
M5*0.8 | 19 | 5.5 | 62 |
M6*1.0 | 22 | 6 | 67 |
M8*1.25 | 22 | 6.3 | 71 |
M10*1.5 | 24 | 7 | 74 |
M12*1.75 | 32 | 8.5 | 83 |
M14*2.0 | 30 | 11.2 | 95 |
M16*2.0 | 33 | 12.3 | 102 |
M18*2.5 | 38 | 14 | 112 |
M20*2.5 | 40 | 14 | 112 |
M24*3.0 | 38 | 18 | 130 |
