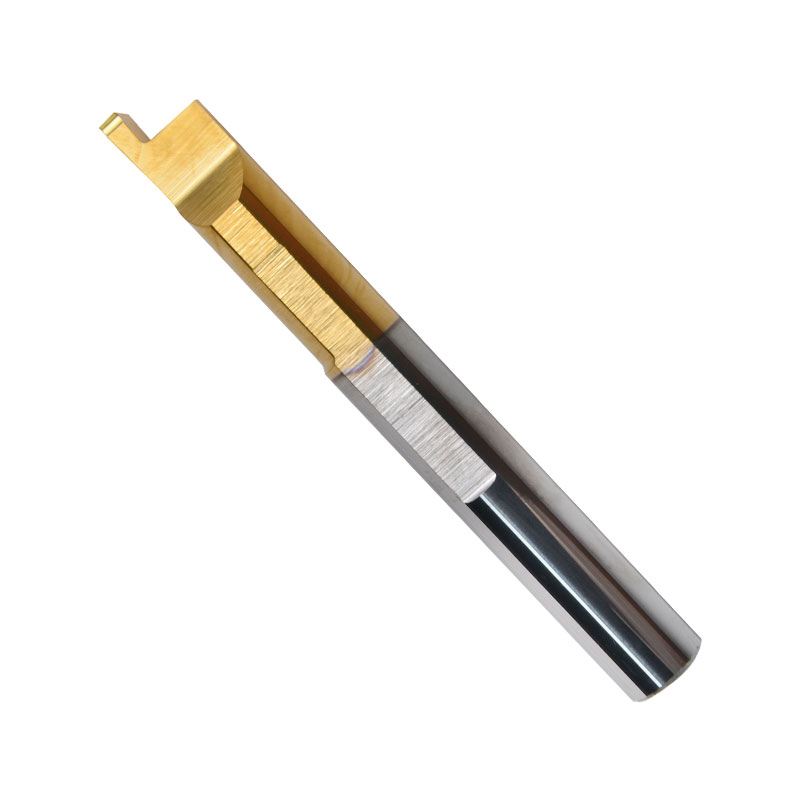

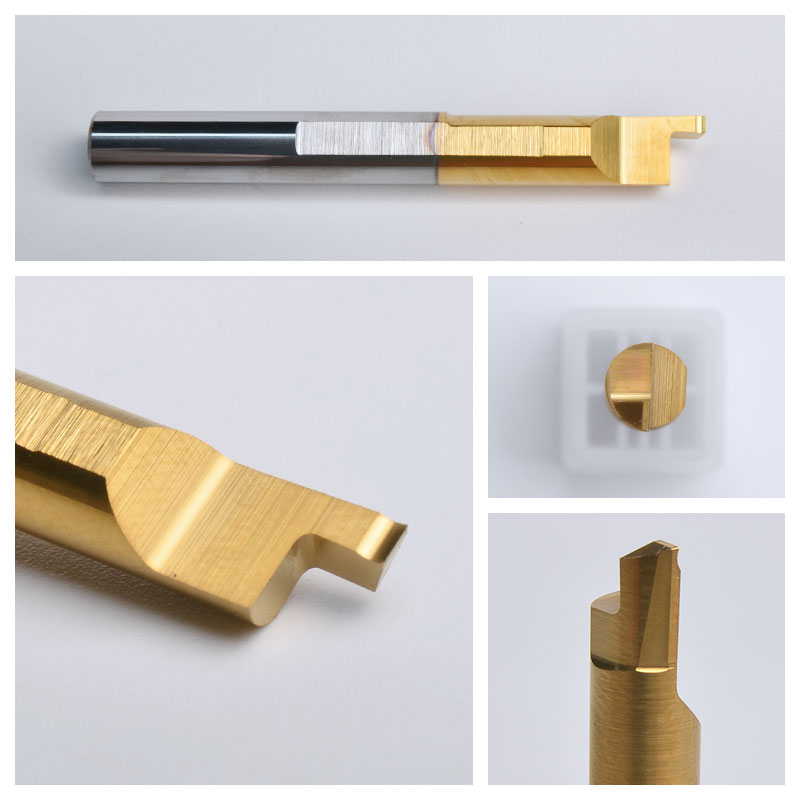

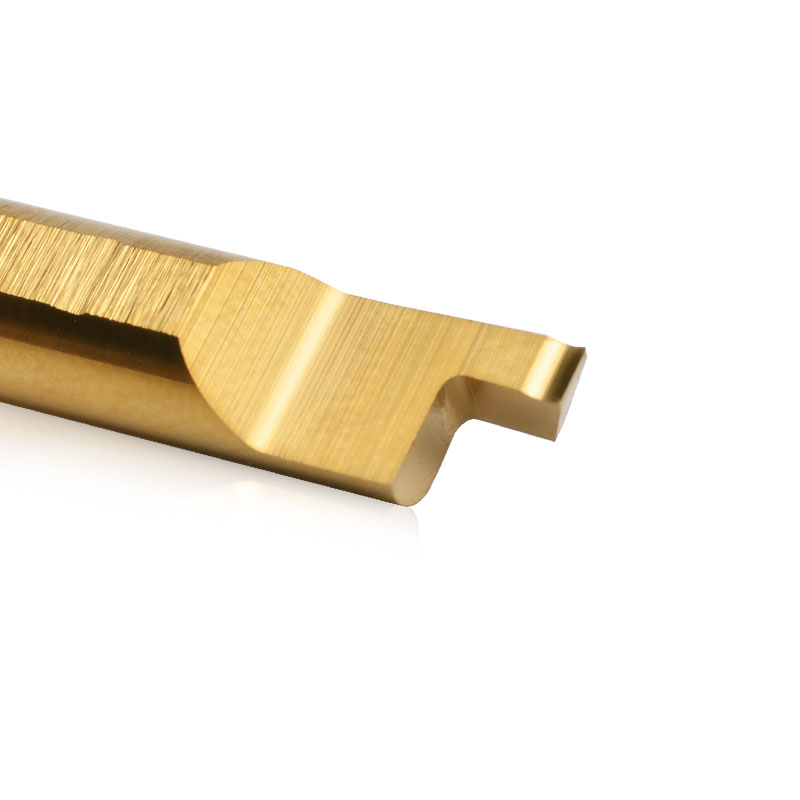

MFR Face Grooving Boring

Model Number

Srandard MFR

Size

Min.Dia 5 6 8 10

Customization

OEM/ODM

Quick Details

1. Face Grooving Boring Tool
2. Imported equipment grind
3. High precision R-angle
4. Round shank design
5. Non-standard customization
6. Fast delivery

Inquiry Download

DESCRIPTION

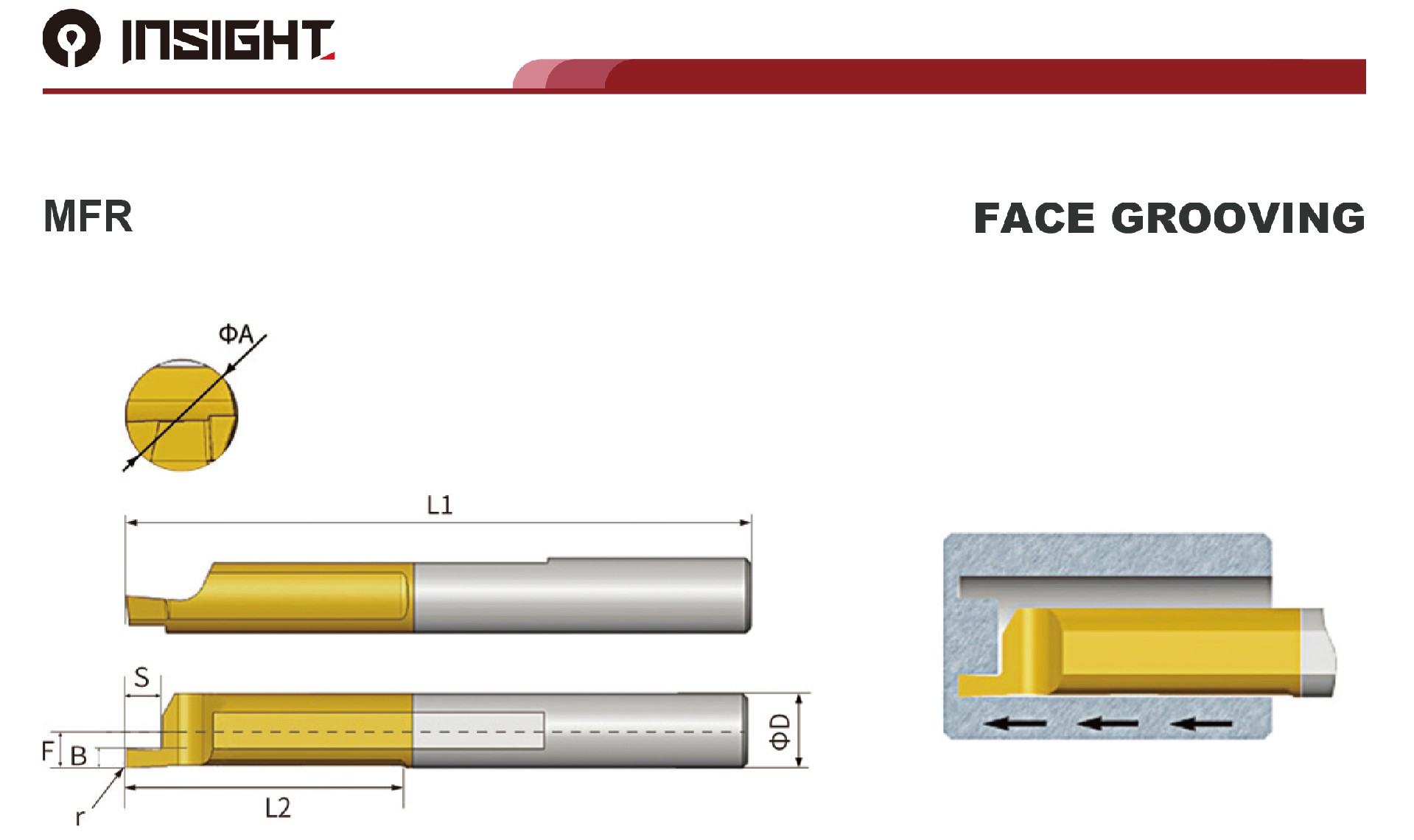

Product Type	Min.Dia （mm）ΦA	ΦD	r	L1	L2	F	S	B
MFR4B0.5L12	5	4	0.05	40	12	1.9	1.0	0.50
MFR4B0.5L12	5	4	0.05	40	12	1.9	1.5	1.00
MFR4B1.5L12	5	4	0.05	40	12	1.9	2.0	1.50
MFR5B1.0L15	6	5	0.10	50	15	2.4	1.5	1.00
MFR5B1.5L15	6	5	0.10	50	15	2.4	2.5	1.50
MFR5B2.0L15	6	5	0.10	50	15	2.4	3.0	2.00
MFR6B1.0L20	8	6	0.10	50	20	2.9	2.0	1.00
MFR6B1.5L20	8	6	0.10	50	20	2.9	2.5	1.50
MFR6B2.0L20	8	6	0.10	50	20	2.9	3.0	2.00
MFR6B3.0L20	8	6	0.10	50	20	2.9	4.5	3.00
MFR8B2.5L22	10	8	0.10	60	22	3.9	3.5	2.50

Coating

Coated Item

Color

Application

Performance parameter

AT12

Gold

Universal use for ≤HRC45 material;

Stainless(austenitic&Martensite,303,304,316F...);

Steel(Bearing steel，quenched steel，Cr-Mo stee， Mn steel...);

Koveralloy; Superalloy;Copper; Iron castingPig iron；Nickel alloy,PMMA...

Nano Hardness :HV3500

Friction Coefficient: 0.3

Max.Temp：900°

JS25

Bronze

Universal use for ≤HRC60 material;

Stainless(austenitic&Martensite,316L 303,304,321,316F,High Nickel Stainless...);

Steel(Bearing steel,quenched steel,Cr-Mo stee,Mn steel...);

Koveralloy; Superalloy;Copper; Iron castingPig iron；Nickel alloy..

Nano Hardness :HV4500,

Friction Coefficient: 0.4

Max.Temp：1100°

AL25

Blue Grey

Special use for mild material ;

Especial for Pure iron ,

special for mild steel & mild stainless,like 304.

Nano Hardness :HV3500,

Friction Coefficient: 0.25

Max.Temp：800°

AD12

Black

Special use for viscous Material:;

Aluminium，PMMA，Polyethylene.CFRP.

Nano Hardness :HV2200,

Friction Coefficient: 0.2

Max.Temp：400°

TZ25

Champagne Gold

Special use for titanium alloy.

Nano Hardness :HV4000

Friction Coefficient: 0.55

Max.Temp：900°

AT25

Black

Carbon Steel,alloy steel,Bearing steel,

quenched steel,Cr-Mo stee,Mn steel...；

Nano Hardness :HV3500,

Friction Coefficient: 0.6

Max.Temp：900°

LC25

Rainbow

Special use for viscous Material:;

Aluminium，PMMA，Polyethylene.CFRP.

Nano Hardness :HV5000

Friction Coefficient: 0.05

Max.Temp：450°
