Provides precise machining accuracy and good surface finish.

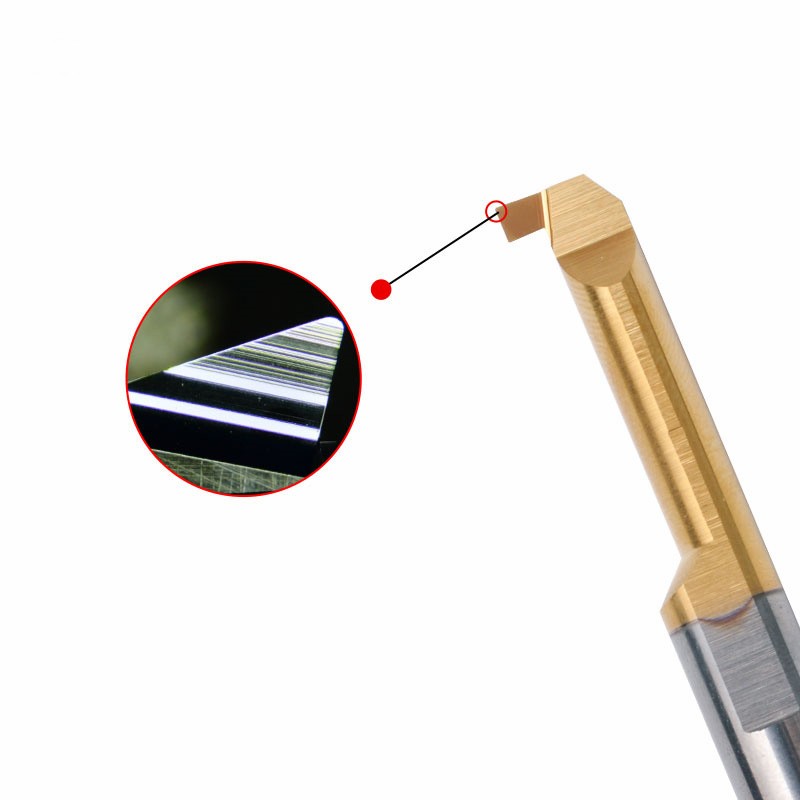

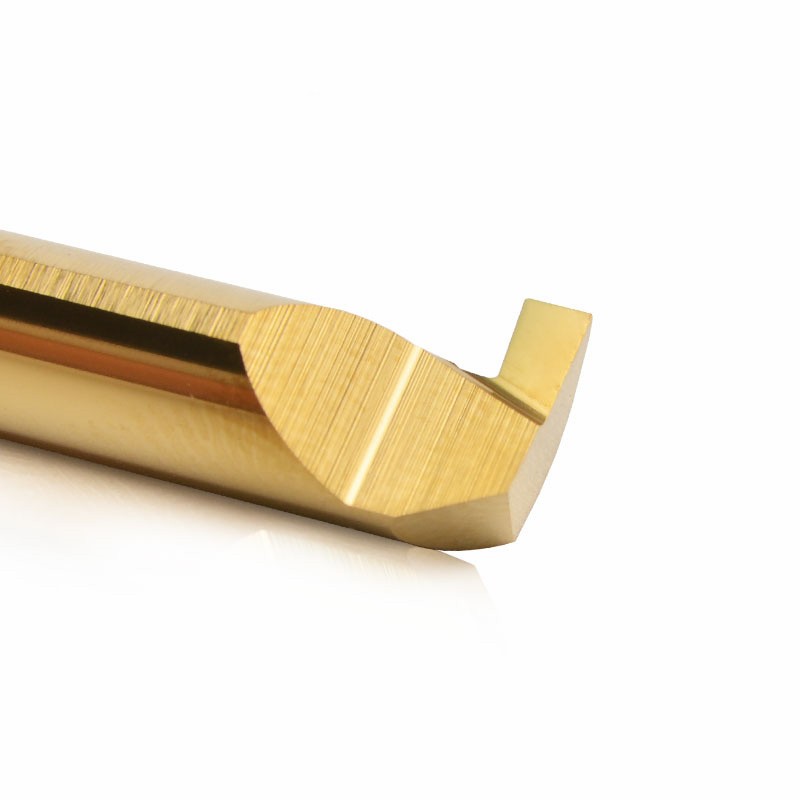

The tiny carbide boring bar adopts a full carbide cutter body to effectively suppress the processing vibration
Ultra-fine particle cemented carbide AlTiN coating for increased tool wearability.

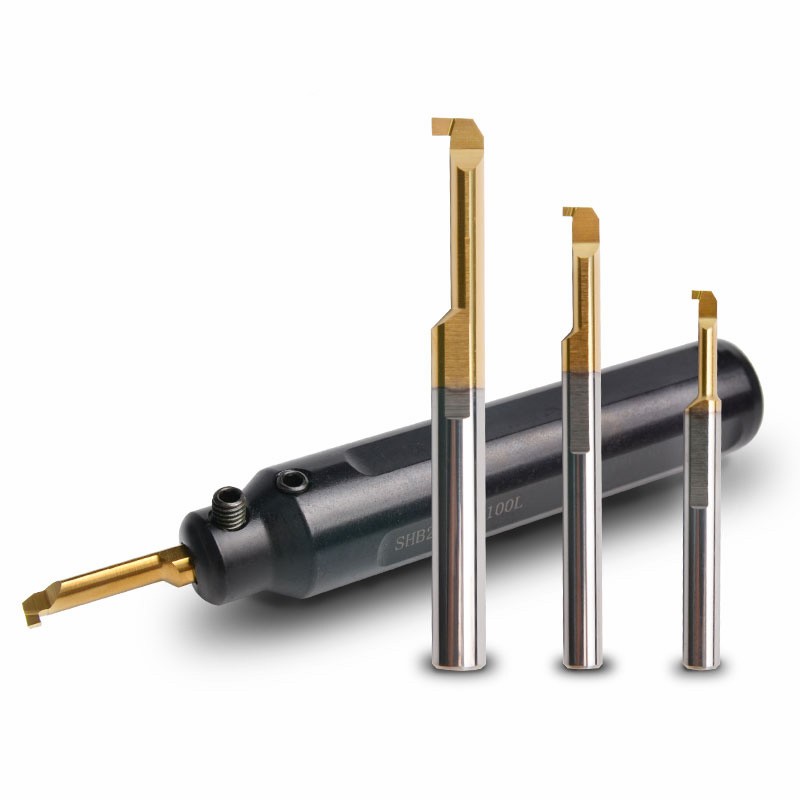

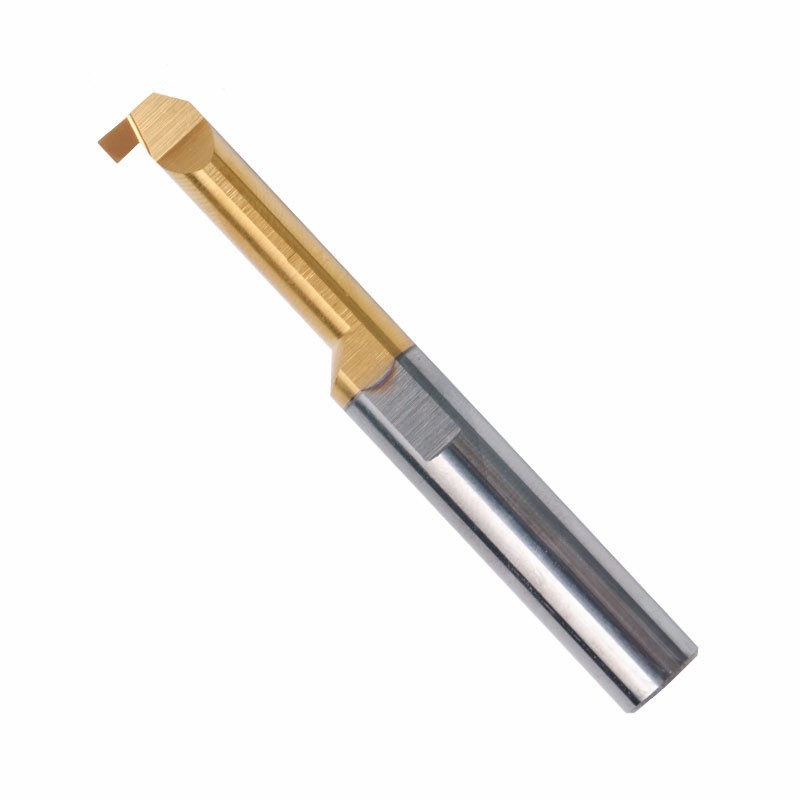

Tooling system for machining of small diameter bores.

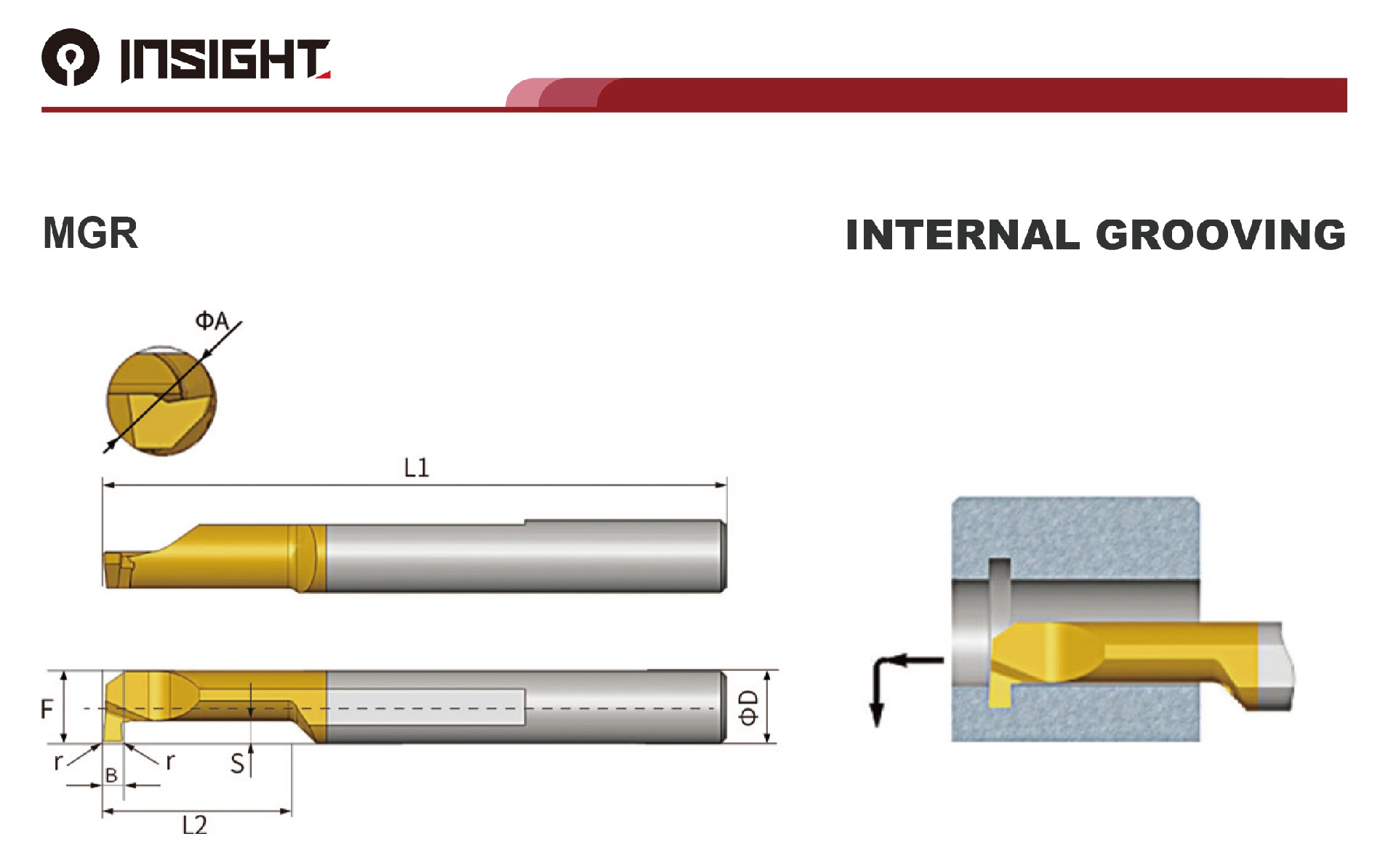

Product Type | Min. Dia (mm) ΦA | ΦD | r | L1 | L2 | F | S | B |
MGR2.5B0.5L5 | 2.5 | 4 | 0.05 | 40 | 5 | 2.35 | 0.65 | 0.50 |
MGR2.5B0.75L5 | 2.5 | 4 | 0.05 | 40 | 5 | 2.35 | 0.65 | 0.75 |
MGR3B0.5L5 | 3.0 | 4 | 0.05 | 40 | 5 | 2.8 | 0.80 | 0.50 |
MGR3B0.75L5 | 3.0 | 4 | 0.05 | 40 | 5 | 2.8 | 0.80 | 0.75 |
MGR3B1.0L5 | 3.0 | 4 | 0.05 | 40 | 5 | 2.8 | 0.80 | 1.00 |
MGR3B0.5L10 | 3.0 | 4 | 0.05 | 40 | 10 | 2.8 | 0.80 | 0.50 |
MGR3B0.75L10 | 3.0 | 4 | 0.05 | 40 | 10 | 2.8 | 0.80 | 0.75 |
MGR3B1.0L10 | 3.0 | 4 | 0.05 | 40 | 10 | 2.8 | 0.80 | 1.00 |
MGR4B0.5L6 | 4.0 | 4 | 0.05 | 40 | 6 | 3.8 | 1.00 | 0.50 |
MGR4B0.75L6 | 4.0 | 4 | 0.05 | 40 | 6 | 3.8 | 1.00 | 0.75 |
MGR4B1.0L6 | 4.0 | 4 | 0.05 | 40 | 6 | 3.8 | 1.00 | 1.00 |
MGR4B1.5L6 | 4.0 | 4 | 0.05 | 40 | 6 | 3.8 | 1.00 | 1.50 |
MGR4B0.5L12 | 4.0 | 4 | 0.05 | 46 | 12 | 3.8 | 1.00 | 0.50 |
MGR4B0.75L12 | 4.0 | 4 | 0.05 | 46 | 12 | 3.8 | 1.00 | 0.75 |
MGR4B1.0L12 | 4.0 | 4 | 0.05 | 46 | 12 | 3.8 | 1.00 | 1.00 |
MGR4B1.5L12 | 4.0 | 4 | 0.05 | 46 | 12 | 3.8 | 1.00 | 1.50 |
MGR5B1.0L8 | 5.0 | 5 | 0.10 | 45 | 8 | 4.8 | 1.50 | 1.00 |
MGR5B1.5L8 | 5.0 | 5 | 0.10 | 45 | 8 | 4.8 | 1.50 | 1.50 |
MGR5B2.0L8 | 5.0 | 5 | 0.10 | 45 | 8 | 4.8 | 1.50 | 2.00 |
MGR5B1.0L15 | 5.0 | 5 | 0.10 | 50 | 15 | 4.8 | 1.50 | 1.00 |
MGR5B1.5L15 | 5.0 | 5 | 0.10 | 50 | 15 | 4.8 | 1.50 | 1.50 |
MGR5B2.0L15 | 5.0 | 5 | 0.10 | 50 | 15 | 4.8 | 1.50 | 2.00 |
MGR6B1.0L10 | 6.0 | 6 | 0.10 | 50 | 10 | 5.8 | 2.00 | 1.00 |
MGR6B1.5L10 | 6.0 | 6 | 0.10 | 50 | 10 | 5.8 | 2.00 | 1.50 |
MGR6B2.0L10 | 6.0 | 6 | 0.10 | 50 | 10 | 5.8 | 2.00 | 2.00 |
MGR6B1.0L20 | 6.0 | 6 | 0.10 | 60 | 20 | 5.8 | 2.00 | 1.00 |
MGR6B1.5L20 | 6.0 | 6 | 0.10 | 60 | 20 | 5.8 | 2.00 | 1.50 |
MGR6B2.0L20 | 6.0 | 6 | 0.10 | 60 | 20 | 5.8 | 2.00 | 2.00 |
MGR7B1.0L22 | 7.0 | 7 | 0.10 | 62 | 22 | 6.8 | 2.00 | 1.00 |
MGR7B1.5L22 | 7.0 | 7 | 0.10 | 62 | 22 | 6.8 | 2.50 | 1.50 |
MGR7B2.0L22 | 7.0 | 7 | 0.10 | 62 | 22 | 6.8 | 2.50 | 2.00 |
MGR8B1.0L22 | 8.0 | 8 | 0.10 | 64 | 22 | 7.8 | 1.80 | 1.00 |
MGR8B1.5L25 | 8.0 | 8 | 0.10 | 65 | 25 | 7.8 | 2.50 | 1.50 |
MGR8B2.0L25 | 8.0 | 8 | 0.10 | 65 | 25 | 7.8 | 2.50 | 2.00 |
MGR8B2.5L25 | 8.0 | 8 | 0.10 | 65 | 25 | 7.8 | 2.50 | 2.50 |
Coated Item | Color | Application | Performance parameter |
AT12 | Gold | Universal use for ≤HRC45 material; Stainless(austenitic&Martensite,303,304,316F...); Steel(Bearing steel,quenched steel,Cr-Mo stee, Mn steel...); Koveralloy; Superalloy;Copper; Iron castingPig iron;Nickel alloy,PMMA... | Nano Hardness :HV3500 Friction Coefficient: 0.3 Max.Temp:900° |
JS25 | Bronze | Universal use for ≤HRC60 material; Stainless(austenitic&Martensite,316L 303,304,321,316F,High Nickel Stainless...); Steel(Bearing steel,quenched steel,Cr-Mo stee,Mn steel...); Koveralloy; Superalloy;Copper; Iron castingPig iron;Nickel alloy.. | Nano Hardness :HV4500, Friction Coefficient: 0.4 Max.Temp:1100° |
AL25 | Blue Grey | Special use for mild material ; Especial for Pure iron , special for mild steel & mild stainless,like 304. | Nano Hardness :HV3500, Friction Coefficient: 0.25 Max.Temp:800° |
AD12 | Black | Special use for viscous Material:; Aluminium,PMMA,Polyethylene.CFRP. | Nano Hardness :HV2200, Friction Coefficient: 0.2 Max.Temp:400° |
TZ25 | Champagne Gold | Special use for titanium alloy. | Nano Hardness :HV4000 Friction Coefficient: 0.55 Max.Temp:900° |
AT25 | Black | Carbon Steel,alloy steel,Bearing steel, quenched steel,Cr-Mo stee,Mn steel...; | Nano Hardness :HV3500, Friction Coefficient: 0.6 Max.Temp:900° |
LC25 | Rainbow | Special use for viscous Material:; Aluminium,PMMA,Polyethylene.CFRP. | Nano Hardness :HV5000 Friction Coefficient: 0.05 Max.Temp:450° |
