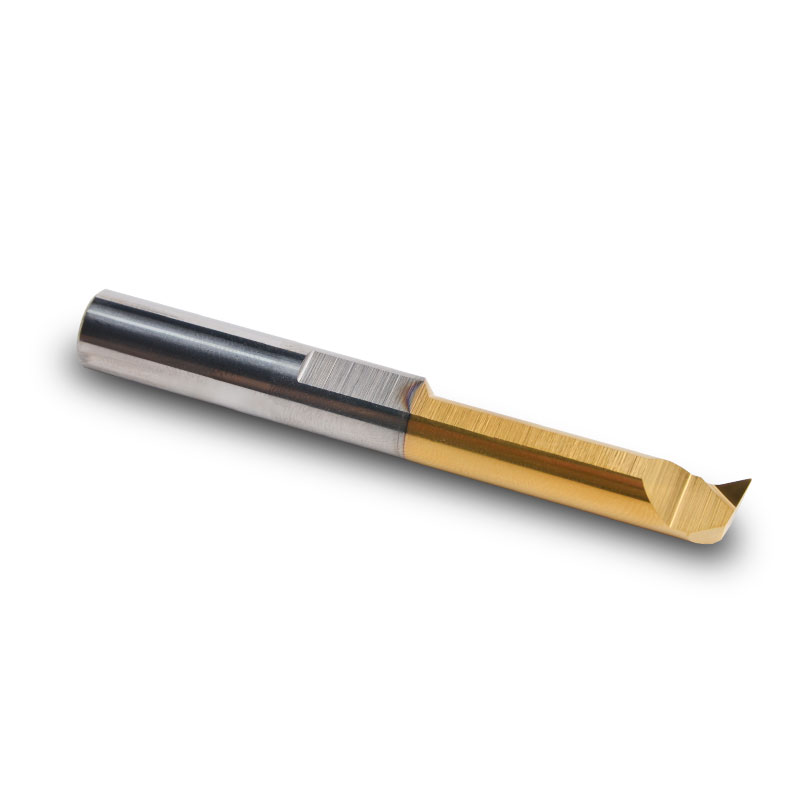

Apply to CNC Machine Center, Egraving Machine, CNC Lathe

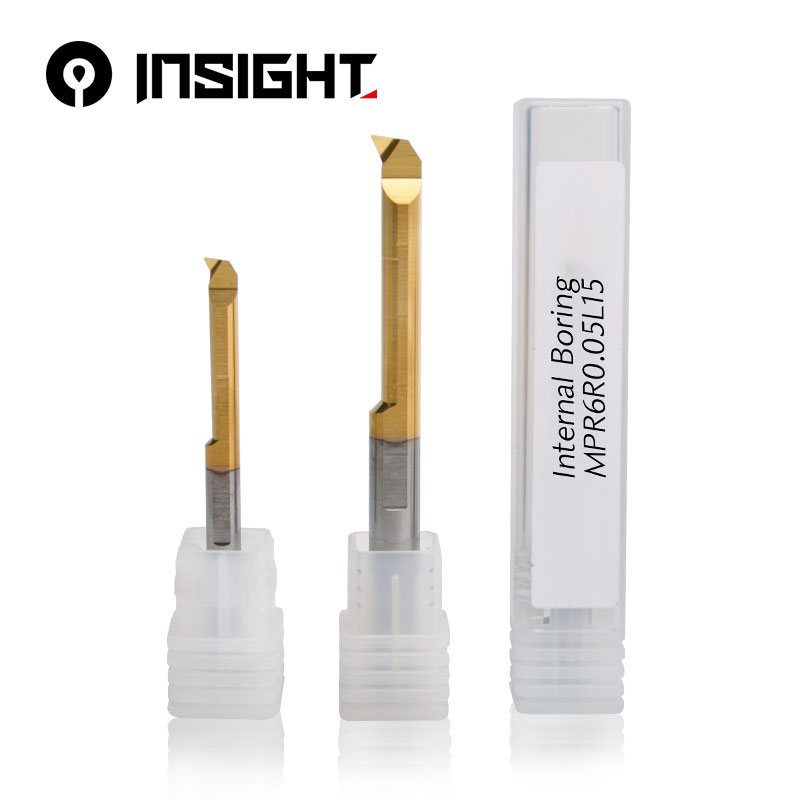

Large tooling line-up for a wide application range
Selection of different chipbreakers for different purposes

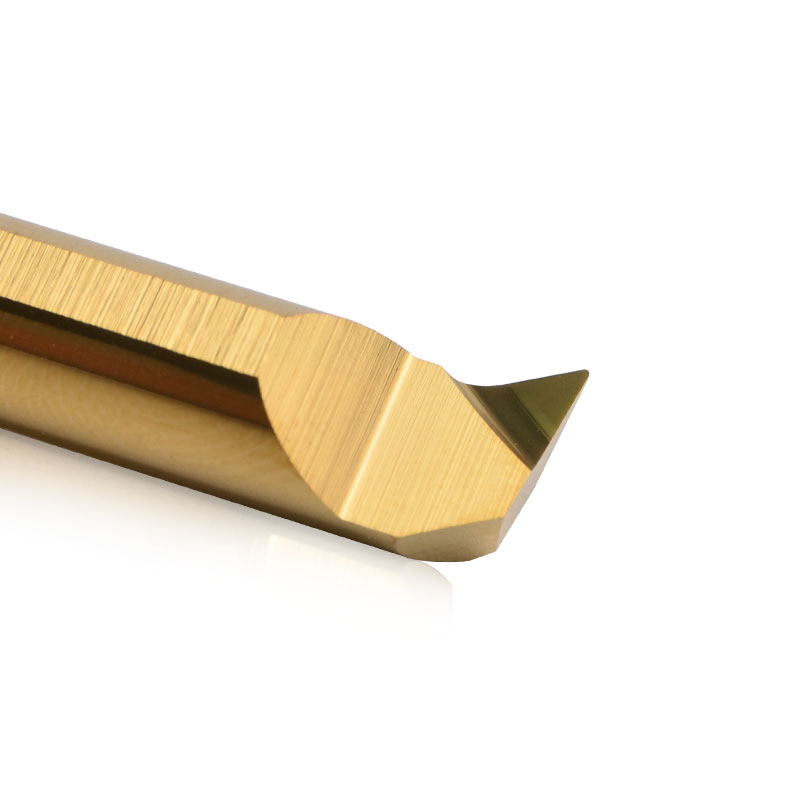

Provides precise machining accuracy and good surface finish.
Ultra-fine particle cemented carbide AlTiN coating for increased tool wearability.

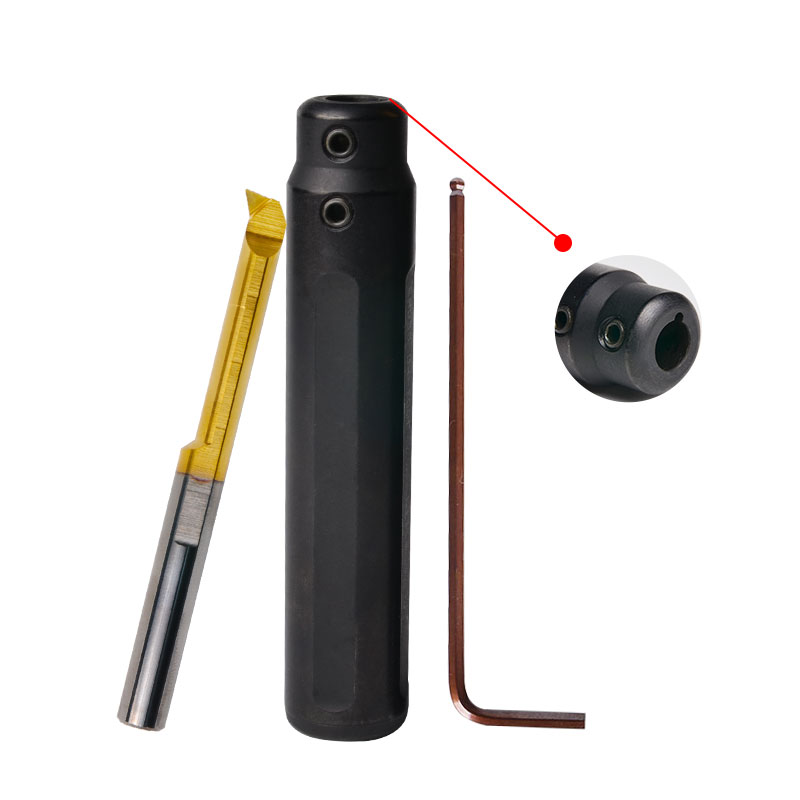

Tooling system for machining of small diameter bores.

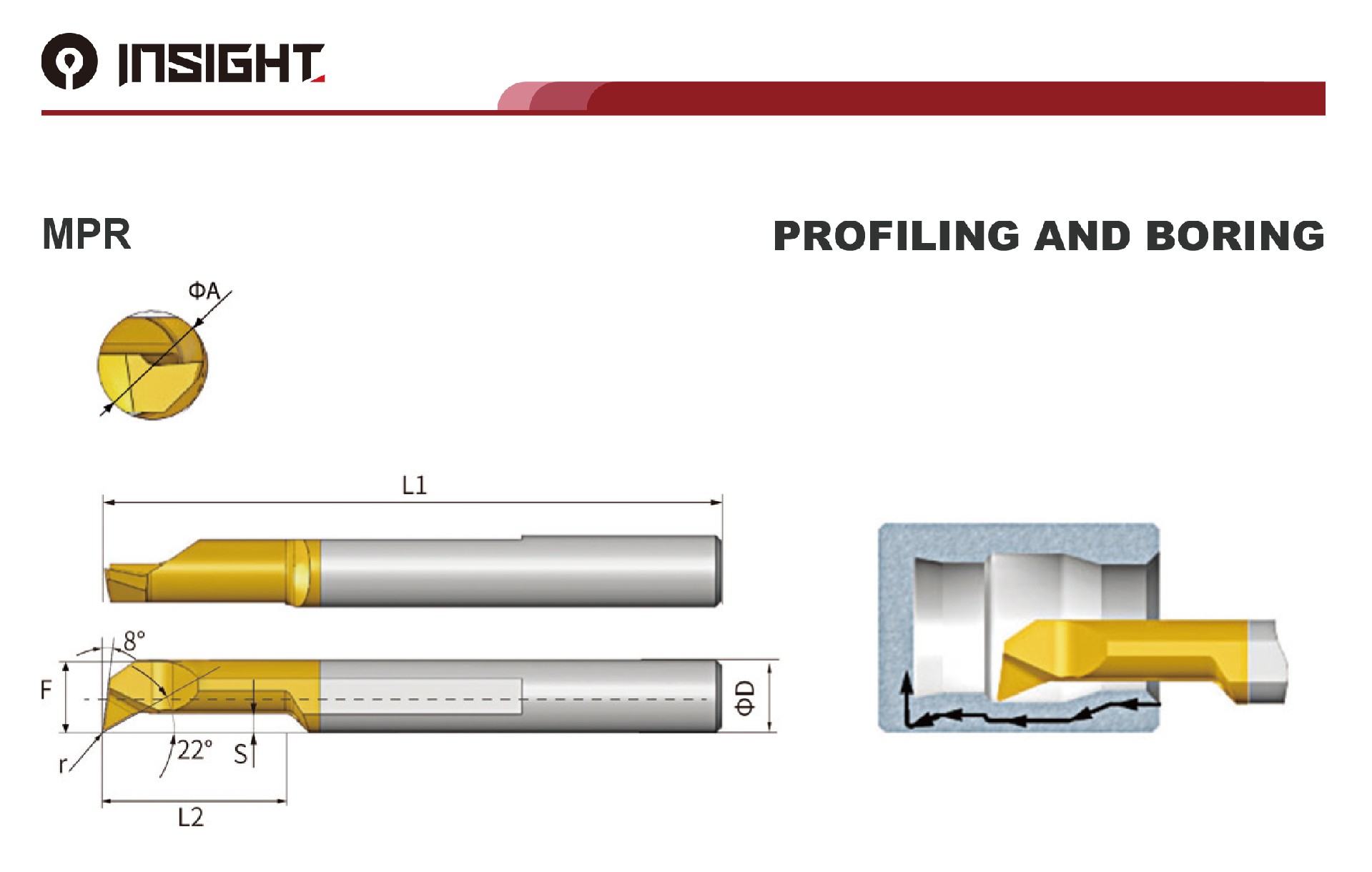

| Product Type | Min. Dia (mm) ΦA | ΦD | r | L1 | L2 | F | S |
| MPR1.0R0.05L4 | 1.0 | 4 | 0.05 | 40 | 4 | 0.9 | 0.15 |
| MPR1.2R0.05L4 | 1.2 | 4 | 0.05 | 40 | 4 | 1.1 | 0.15 |
| MPR1.5R0.05L5 | 1.5 | 4 | 0.05 | 40 | 5 | 1.4 | 0.20 |
| MPR1.5R0.1L5 | 1.5 | 4 | 0.10 | 40 | 5 | 1.4 | 0.20 |
| MPR1.5R0.05L8 | 1.5 | 4 | 0.05 | 40 | 8 | 1.4 | 0.20 |
| MPR1.5R0.1L8 | 1.5 | 4 | 0.10 | 40 | 8 | 1.4 | 0.20 |
| MPR1.8R0.05L5 | 1.8 | 4 | 0.05 | 40 | 5 | 1.7 | 0.20 |
| MPR1.8R0.1L5 | 1.8 | 4 | 0.10 | 40 | 5 | 1.7 | 0.20 |
| MPR1.8R0.05L9 | 1.8 | 4 | 0.05 | 40 | 9 | 1.7 | 0.20 |
| MPR1.8R0.1L9 | 1.8 | 4 | 0.10 | 40 | 9 | 1.7 | 0.20 |
| MPR2R0.05L6 | 2.1 | 4 | 0.05 | 40 | 6 | 1.85 | 0.25 |
| MPR2R 0.1L6 | 2.1 | 4 | 0.10 | 40 | 6 | 1.85 | 0.25 |
| MPR2R0.05L10 | 2.1 | 4 | 0.05 | 40 | 10 | 1.85 | 0.25 |
| MPR2R0.1L10 | 2.1 | 4 | 0.10 | 40 | 10 | 1.85 | 0.25 |
| MPR2.5R0.05L8 | 2.6 | 4 | 0.05 | 40 | 8 | 2.35 | 0.30 |
| MPR2.5R0.1L8 | 2.6 | 4 | 0.10 | 40 | 8 | 2.35 | 0.30 |
| MPR2.5R0.15L8 | 2.6 | 4 | 0.15 | 40 | 8 | 2.35 | 0.30 |
| MPR2.5R0.05L12 | 2.6 | 4 | 0.05 | 40 | 12 | 2.35 | 0.30 |
| MPR2.5R0.1L12 | 2.6 | 4 | 0.10 | 40 | 12 | 2.35 | 0.30 |
| MPR2.5R0.15L12 | 2.6 | 4 | 0.15 | 40 | 12 | 2.35 | 0.30 |
| MPR3R0.05L10 | 3.1 | 4 | 0.05 | 40 | 10 | 2.8 | 0.50 |
| MPR3R0.1L10 | 3.1 | 4 | 0.10 | 40 | 10 | 2.8 | 0.50 |
| MPR3R0.15L10 | 3.1 | 4 | 0.15 | 40 | 10 | 2.8 | 0.50 |
| MPR3R0.05L15 | 3.1 | 4 | 0.05 | 45 | 15 | 2.8 | 0.50 |
| MPR3R0.1L15 | 3.1 | 4 | 0.10 | 45 | 15 | 2.8 | 0.50 |
| MPR3R0.15L15 | 3.1 | 4 | 0.15 | 45 | 15 | 2.8 | 0.50 |
| MPR4R0.05L12 | 4.1 | 4 | 0.05 | 45 | 12 | 3.8 | 0.60 |
| MPR4R0.1L12 | 4.1 | 4 | 0.10 | 45 | 12 | 3.8 | 0.60 |
| MPR4R0.2L12 | 4.1 | 4 | 0.20 | 45 | 12 | 3.8 | 0.60 |
| MPR4R0.05L16 | 4.1 | 4 | 0.05 | 45 | 16 | 3.8 | 0.60 |
| MPR4R0.1L16 | 4.1 | 4 | 0.10 | 45 | 16 | 3.8 | 0.60 |
| MPR4R0.2L16 | 4.1 | 4 | 0.20 | 45 | 16 | 3.8 | 0.60 |
| MPR4R0.05L20 | 4.1 | 4 | 0.05 | 50 | 20 | 3.8 | 0.60 |
| MPR4R0.1L20 | 4.1 | 4 | 0.10 | 50 | 20 | 3.8 | 0.60 |
| MPR4R0.2L20 | 4.1 | 4 | 0.20 | 50 | 20 | 3.8 | 0.60 |
| MPR5R0.05L15 | 5.1 | 5 | 0.05 | 50 | 15 | 4.8 | 0.80 |
| MPR5R0.1L15 | 5.1 | 5 | 0.10 | 50 | 15 | 4.8 | 0.80 |
| MPR5R0.2L15 | 5.1 | 5 | 0.20 | 50 | 15 | 4.8 | 0.80 |
| MPR5R0.05L20 | 5.1 | 5 | 0.05 | 54 | 20 | 4.8 | 0.80 |
| MPR5R0.1L20 | 5.1 | 5 | 0.10 | 54 | 20 | 4.8 | 0.80 |
| MPR5R0.2L20 | 5.1 | 5 | 0.20 | 54 | 20 | 4.8 | 0.80 |
| MPR5R0.05L25 | 5.1 | 5 | 0.05 | 60 | 25 | 4.8 | 0.80 |
| MPR5R0.1L25 | 5.1 | 5 | 0.10 | 60 | 25 | 4.8 | 0.80 |
| MPR5R0.2L25 | 5.1 | 5 | 0.20 | 60 | 25 | 4.8 | 0.80 |
| MPR6R0.05L15 | 6.1 | 6 | 0.05 | 50 | 15 | 5.8 | 1.00 |
| MPR6R0.1L15 | 6.1 | 6 | 0.10 | 50 | 15 | 5.8 | 1.00 |
| MPR6R0.2L15 | 6.1 | 6 | 0.20 | 50 | 15 | 5.8 | 1.00 |
| MPR6R0.05L22 | 6.1 | 6 | 0.05 | 60 | 22 | 5.8 | 1.00 |
| MPR6R0.1L22 | 6.1 | 6 | 0.10 | 60 | 22 | 5.8 | 1.00 |
| MPR6R0.2L22 | 6.1 | 6 | 0.20 | 60 | 22 | 5.8 | 1.00 |
| MPR6R0.05L30 | 6.1 | 6 | 0.05 | 65 | 30 | 5.8 | 1.00 |
| MPR6R0.1L30 | 6.1 | 6 | 0.10 | 65 | 30 | 5.8 | 1.00 |
| MPR6R0.2L30 | 6.1 | 6 | 0.20 | 65 | 30 | 5.8 | 1.00 |
| MPR7R0.1L25 | 7.1 | 7 | 0.10 | 65 | 25 | 6.8 | 1.20 |
| MPR7R0.2L25 | 7.1 | 7 | 0.20 | 65 | 25 | 6.8 | 1.20 |
| MPR7R0.1L30 | 7.1 | 7 | 0.10 | 70 | 30 | 6.8 | 1.20 |
| MPR7R0.2L30 | 7.1 | 7 | 0.20 | 70 | 30 | 6.8 | 1.20 |
| MPR8R0.1L30 | 8.1 | 8 | 0.10 | 65 | 30 | 7.8 | 1.50 |
| MPR8R0.2L30 | 8.1 | 8 | 0.20 | 65 | 30 | 7.8 | 1.50 |
| MPR8R0.2L40 | 8.1 | 8 | 0.20 | 75 | 40 | 7.8 | 1.50 |
| Coated Item | Color | Application | Performance parameter |
| AT12 | Gold
| Universal use for ≤HRC45 material; Stainless(austenitic&Martensite,303,304,316F...); Steel(Bearing steel，quenched steel，Cr-Mo stee， Mn steel...); Koveralloy; Superalloy;Copper; Iron castingPig iron；Nickel alloy,PMMA... | Nano Hardness :HV3500 Friction Coefficient: 0.3 Max.Temp：900° |
| JS25 | Bronze
| Universal use for ≤HRC60 material; Stainless(austenitic&Martensite,316L 303,304,321,316F,High Nickel Stainless...); Steel(Bearing steel,quenched steel,Cr-Mo stee,Mn steel...); Koveralloy; Superalloy;Copper; Iron castingPig iron；Nickel alloy.. | Nano Hardness :HV4500, Friction Coefficient: 0.4 Max.Temp：1100° |
| AL25 | Blue Grey
| Special use for mild material ; Especial for Pure iron , special for mild steel & mild stainless,like 304. | Nano Hardness :HV3500, Friction Coefficient: 0.25 Max.Temp：800° |
| AD12 | Black
| Special use for viscous Material:; Aluminium，PMMA，Polyethylene.CFRP. | Nano Hardness :HV2200, Friction Coefficient: 0.2 Max.Temp：400° |
| TZ25 | Champagne Gold
| Special use for titanium alloy. | Nano Hardness :HV4000 Friction Coefficient: 0.55 Max.Temp：900° |
| AT25 | Black
| Carbon Steel,alloy steel,Bearing steel, quenched steel,Cr-Mo stee,Mn steel...； | Nano Hardness :HV3500, Friction Coefficient: 0.6 Max.Temp：900° |
| LC25 | Rainbow
| Special use for viscous Material:; Aluminium，PMMA，Polyethylene.CFRP. | Nano Hardness :HV5000 Friction Coefficient: 0.05 Max.Temp：450° |
