MVR Deep Face Grooving Boring

Model Number

MVR Boring Tool

Size

MVR8B2.0L15, MVR8B2.5L15, MVR8B3.0L15

Customization

Available

Quick Details

Material: solid carbide
Coating: nano coating, JS25, AT12
Size: full range of specifications
Type: MGR,MFR,MTR,MVR,MIR,MPR,MQR,MUR

Inquiry Download

DESCRIPTION

Specification

Product Type	Min. Dia (mm) ΦA	ΦD	r	L1	L2	F	B
MVR8B2.0L15	12	8	0.2	60	15	1.1	2.0
MVR8B2.5L15	12	8	0.2	60	15	1.4	2.5
MVR8B3.0L15	12	8	0.2	60	15	1.6	3.0

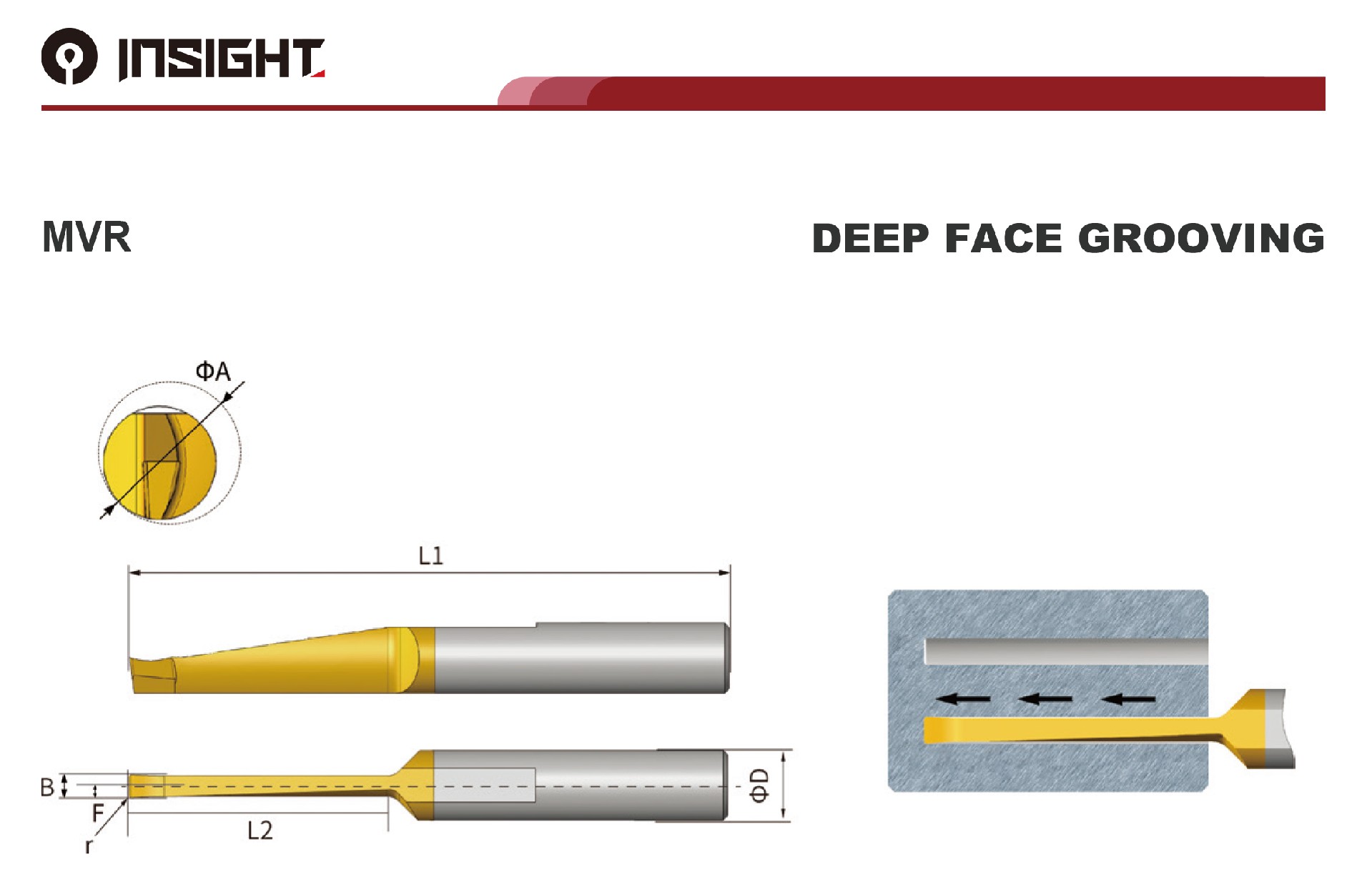

Detailed Drawing

Coating

Coated Item

Color

Application

Performance parameter

AT12

Gold

Universal use for ≤HRC45 material;

Stainless(austenitic&Martensite,303,304,316F...);

Steel(Bearing steel，quenched steel，Cr-Mo stee， Mn steel...);

Koveralloy; Superalloy;Copper; Iron castingPig iron；Nickel alloy,PMMA...

Nano Hardness :HV3500

Friction Coefficient: 0.3

Max.Temp：900°

JS25

Bronze

Universal use for ≤HRC60 material;

Stainless(austenitic&Martensite,316L 303,304,321,316F,High Nickel Stainless...);

Steel(Bearing steel,quenched steel,Cr-Mo stee,Mn steel...);

Koveralloy; Superalloy;Copper; Iron castingPig iron；Nickel alloy..

Nano Hardness :HV4500,

Friction Coefficient: 0.4

Max.Temp：1100°

AL25

Blue Grey

Special use for mild material ;

Especial for Pure iron ,

special for mild steel & mild stainless,like 304.

Nano Hardness :HV3500,

Friction Coefficient: 0.25

Max.Temp：800°

AD12

Black

Special use for viscous Material:;

Aluminium，PMMA，Polyethylene.CFRP.

Nano Hardness :HV2200,

Friction Coefficient: 0.2

Max.Temp：400°

TZ25

Champagne Gold

Special use for titanium alloy.

Nano Hardness :HV4000

Friction Coefficient: 0.55

Max.Temp：900°

AT25

Black

Carbon Steel,alloy steel,Bearing steel,

quenched steel,Cr-Mo stee,Mn steel...；

Nano Hardness :HV3500,

Friction Coefficient: 0.6

Max.Temp：900°

LC25

Rainbow

Special use for viscous Material:;

Aluminium，PMMA，Polyethylene.CFRP.

Nano Hardness :HV5000

Friction Coefficient: 0.05

Max.Temp：450°
