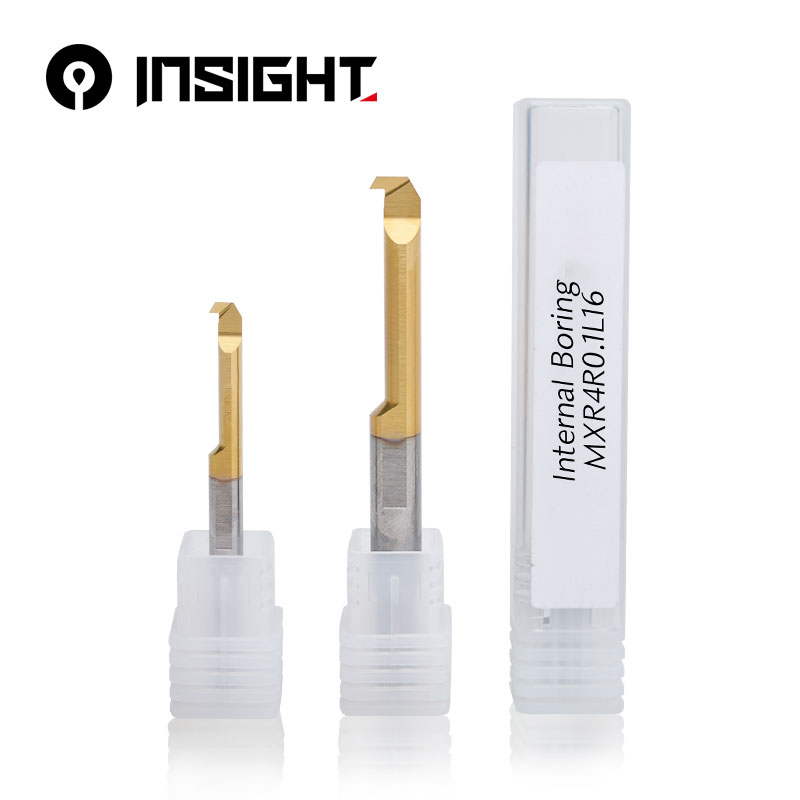

MXR Reverse Boring Cutter

Model Number

MXR Boring Cutter

Size

Shank Dia4.0-5.0-6.0-7.0-8.0, tool holde Outside Dia12/16/20/22/25.4

Customization

According to sketch,cutting tools or workpiece drawing, lead time is 2 weeks, sent to disir@insight-t.com

Quick Details

1 Altin&Tin coated (double coated with lubricious & durable)
2 Available for HRC≤45° materials : stainless; steel; titanium alloy; copper; PMMA; iron casting and so on.
3 Each specification in catalog is full stocked.
4 Can customize for different coating,and it just need 2-3days because of full stock non-coating products and mature coating system,

Inquiry Download

DESCRIPTION

Specification

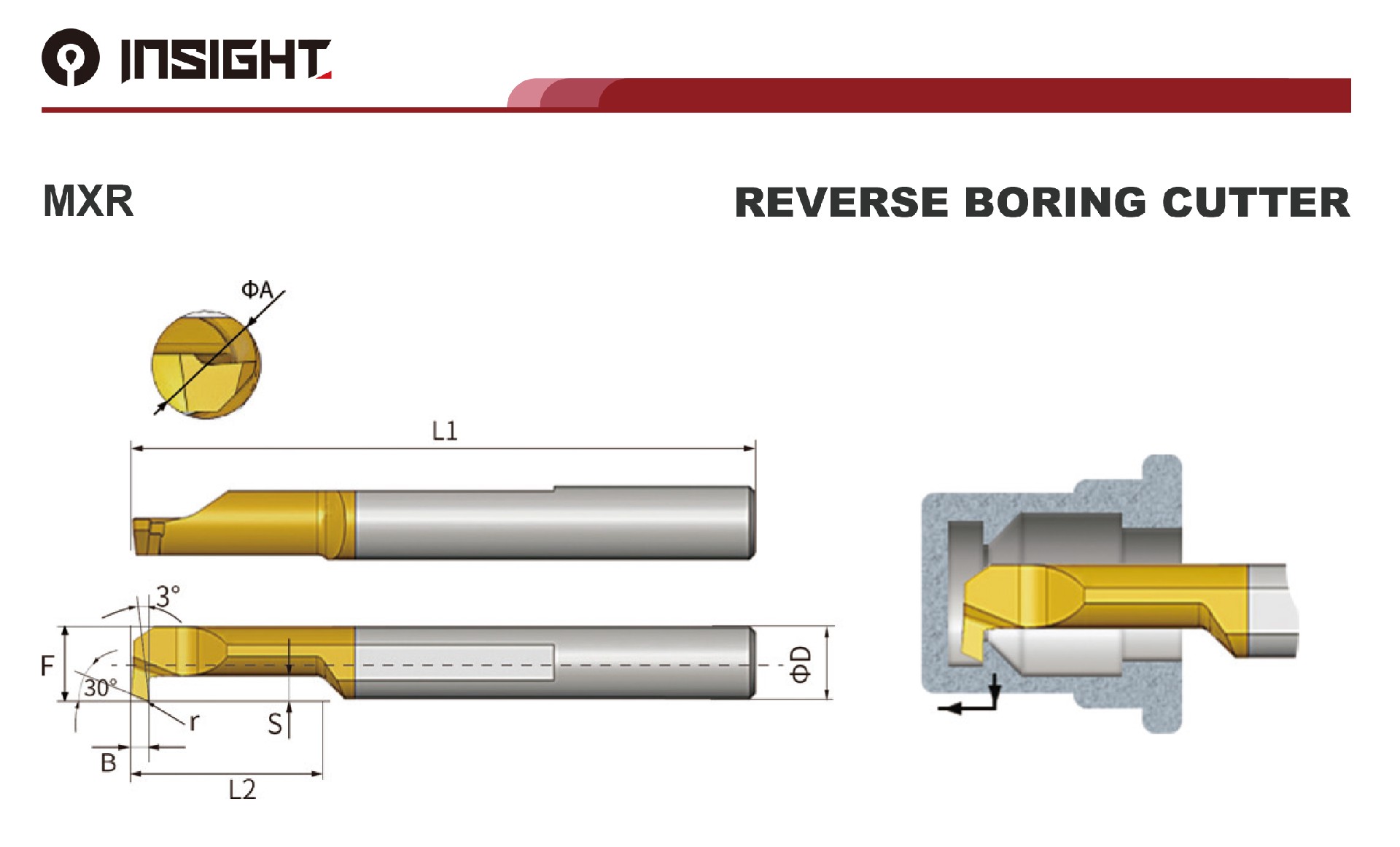

Product Type	Min. Dia (mm) ΦA	ΦD	r	L1	L2	F	S	B
MXR4R0.1L16	4.1	4	0.10	46	16	3.8	1.00	1.3
MXR5R0.1L20	5.1	5	0.10	54	20	4.8	1.30	1.5
MXR6R0.1L25	6.1	5	0.10	60	25	5.8	1.60	1.5

Features:

Small internal machining
Large tooling line-up for a wide application range

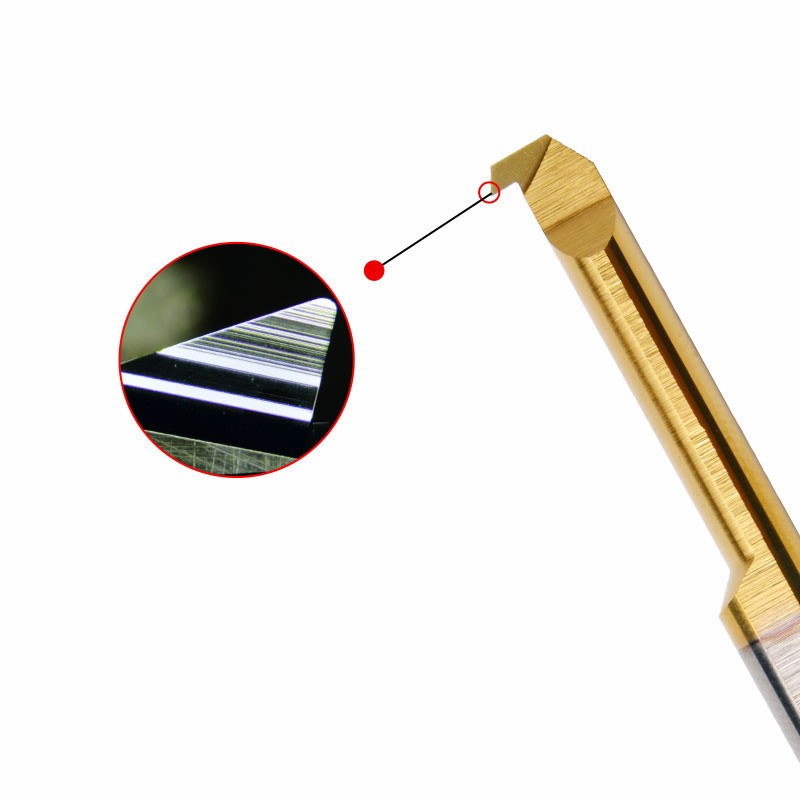

Provides precise machining accuracy and good surface finish.
High-rigidity clamping prevents deviation
Long tool life and high machining efficiency
Selection of different chipbreakers for different purposes
High rake angle ensures stable machining without vibration and good chip evacuation

Apply to CNC Machine Center, Egraving Machine, CNC Lathe

Coating

Coated Item

Color

Application

Performance parameter

AT12

Gold

Universal use for ≤HRC45 material;

Stainless(austenitic&Martensite,303,304,316F...);

Steel(Bearing steel，quenched steel，Cr-Mo stee， Mn steel...);

Koveralloy; Superalloy;Copper; Iron castingPig iron；Nickel alloy,PMMA...

Nano Hardness :HV3500

Friction Coefficient: 0.3

Max.Temp：900°

JS25

Bronze

Universal use for ≤HRC60 material;

Stainless(austenitic&Martensite,316L 303,304,321,316F,High Nickel Stainless...);

Steel(Bearing steel,quenched steel,Cr-Mo stee,Mn steel...);

Koveralloy; Superalloy;Copper; Iron castingPig iron；Nickel alloy..

Nano Hardness :HV4500,

Friction Coefficient: 0.4

Max.Temp：1100°

AL25

Blue Grey

Special use for mild material ;

Especial for Pure iron ,

special for mild steel & mild stainless,like 304.

Nano Hardness :HV3500,

Friction Coefficient: 0.25

Max.Temp：800°

AD12

Black

Special use for viscous Material:;

Aluminium，PMMA，Polyethylene.CFRP.

Nano Hardness :HV2200,

Friction Coefficient: 0.2

Max.Temp：400°

TZ25

Champagne Gold

Special use for titanium alloy.

Nano Hardness :HV4000

Friction Coefficient: 0.55

Max.Temp：900°

AT25

Black

Carbon Steel,alloy steel,Bearing steel,

quenched steel,Cr-Mo stee,Mn steel...；

Nano Hardness :HV3500,

Friction Coefficient: 0.6

Max.Temp：900°

LC25

Rainbow

Special use for viscous Material:;

Aluminium，PMMA，Polyethylene.CFRP.

Nano Hardness :HV5000

Friction Coefficient: 0.05

Max.Temp：450°
