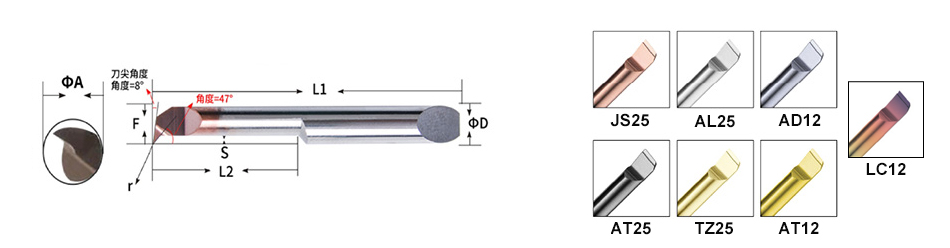

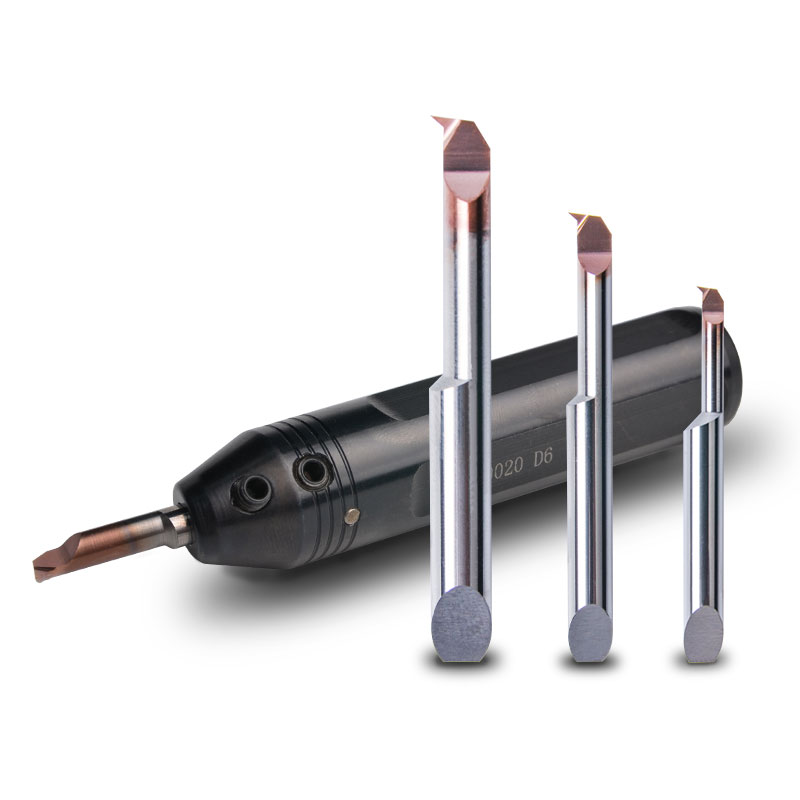

workpiece drawing / cutting sketch

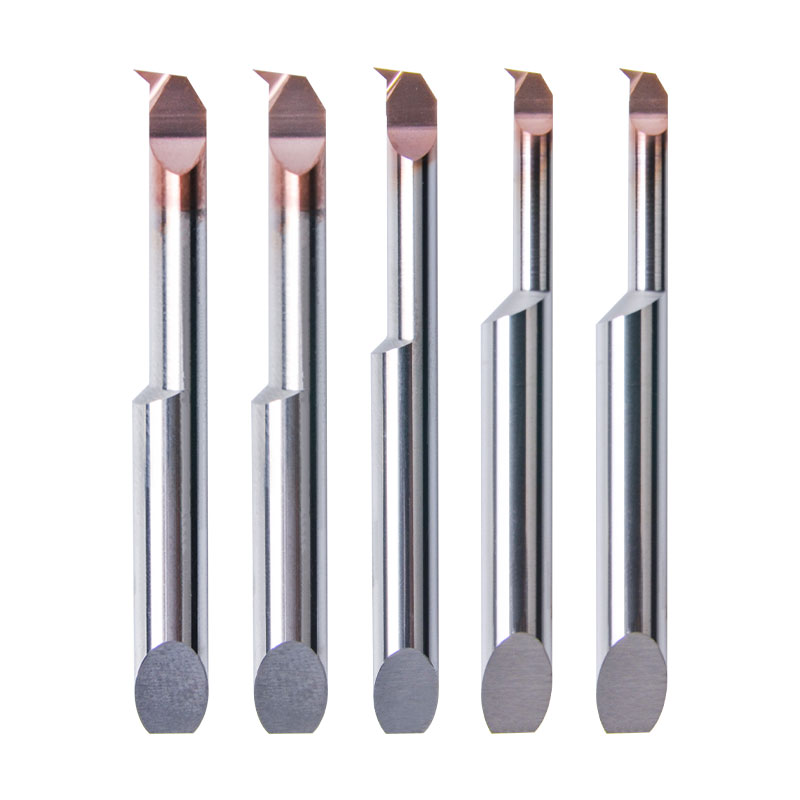

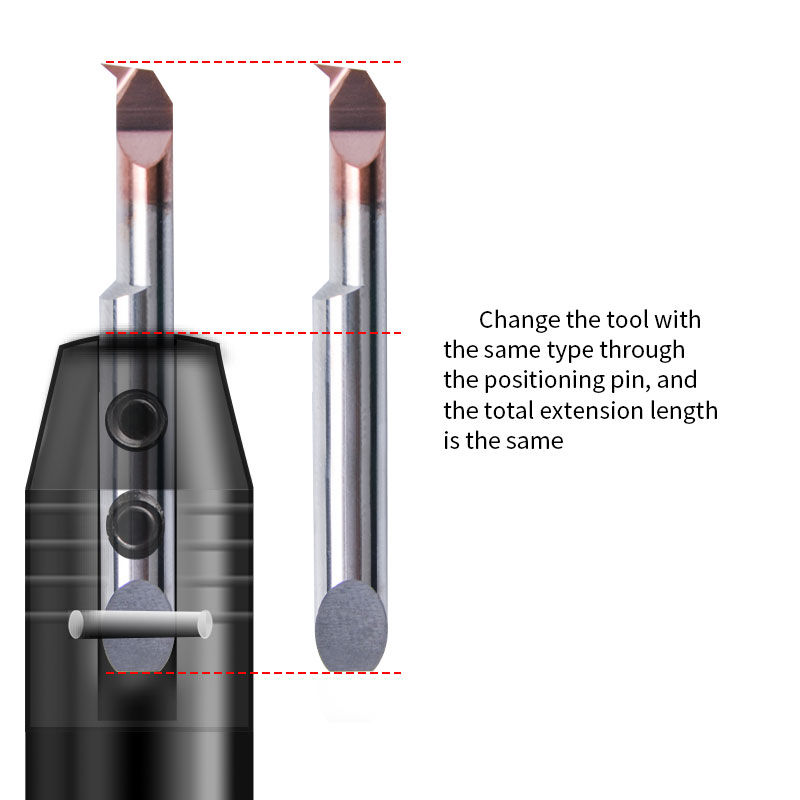

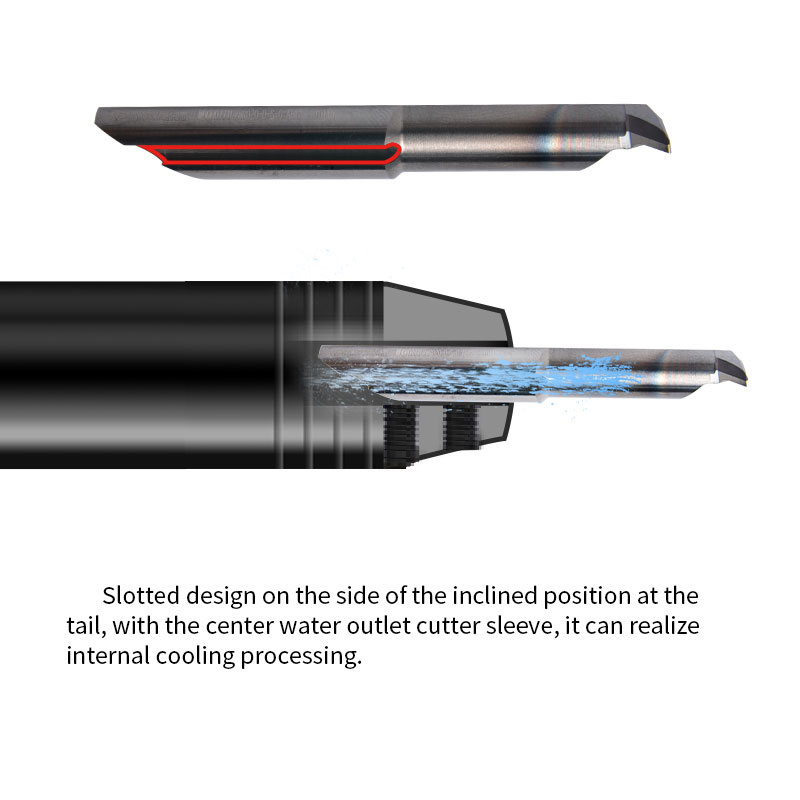

| Product Type | Min. Dia (mm) ΦA | ΦD | r±0.01 | L1 | L2 | F | S | JS25 | AL25 |
| MBCR0431L10R005-D-（C） | 3.1 | 4 | 0.05 | 35 | 10 | 2.8 | 0.65 | ● | ● |
| MBCR0431L10R010-D-（C） | 3.1 | 4 | 0.10 | 35 | 10 | 2.8 | 0.65 | ● | ● |
| MBCR0431L15R005-D-（C） | 3.1 | 4 | 0.05 | 37 | 15 | 2.8 | 0.80 | ● | ● |
| MBCR0431L15R010-D-（C） | 3.1 | 4 | 0.10 | 37 | 15 | 2.8 | 0.80 | ● | ● |
| MBCR0441L12R005-D-（C） | 4.1 | 4 | 0.05 | 37 | 12 | 3.8 | 0.80 | ● | ● |
| MBCR0441L12R010-D-（C） | 4.1 | 4 | 0.10 | 37 | 12 | 3.8 | 0.80 | ● | ● |
| MBCR0441L16R005-D-（C） | 4.1 | 4 | 0.05 | 41 | 16 | 3.8 | 0.80 | ● | ● |
| MBCR0441L16R010-D-（C） | 4.1 | 4 | 0.10 | 41 | 16 | 3.8 | 0.80 | ● | ● |
| MBCR0441L20R005-D-（C） | 4.1 | 4 | 0.05 | 45 | 20 | 3.8 | 1.00 | ● | ● |
| MBCR0441L20R010-D-（C） | 4.1 | 4 | 0.10 | 45 | 20 | 3.8 | 1.00 | ● | ● |
| MBCR0551L20R005-D-（C） | 5.1 | 5 | 0.05 | 45 | 20 | 4.8 | 1.00 | ● | ● |
| MBCR0551L20R015-D-（C） | 5.1 | 5 | 0.15 | 45 | 20 | 4.8 | 1.00 | ● | ● |
| MBCR0551L25R005-D-（C） | 5.1 | 5 | 0.05 | 50 | 25 | 4.8 | 1.00 | ● | ● |
| MBCR0551L25R015-D-（C） | 5.1 | 5 | 0.15 | 50 | 25 | 4.8 | 1.00 | ● | ● |
| MBCR0661L20R005-D-（C） | 6.1 | 6 | 0.05 | 45 | 20 | 5.8 | 1.00 | ● | ● |
| MBCR0661L20R015-D-（C） | 6.1 | 6 | 0.15 | 45 | 20 | 5.8 | 1.00 | ● | ● |
| MBCR0661L25R005-D-（C） | 6.1 | 6 | 0.05 | 50 | 25 | 5.8 | 1.20 | ● | ● |
| MBCR0661L25R005-D-（C） | 6.1 | 6 | 0.15 | 50 | 25 | 5.8 | 1.20 | ● | ● |
| MBCR0661L30R005-D-（C） | 6.1 | 6 | 0.05 | 55 | 30 | 5.8 | 1.20 | ● | ● |
| MBCR0661L30R015-D-（C） | 6.1 | 6 | 0.15 | 55 | 30 | 5.8 | 1.20 | ● | ● |
| ● on stock （C）Internal cooling customization | |||||||||
| Coated Item | Color | Application | Performance parameter |
| AT12 | Gold
| Universal use for ≤HRC45 material; Stainless(austenitic&Martensite,303,304,316F...); Steel(Bearing steel，quenched steel，Cr-Mo stee， Mn steel...); Koveralloy; Superalloy;Copper; Iron castingPig iron；Nickel alloy,PMMA... | Nano Hardness :HV3500 Friction Coefficient: 0.3 Max.Temp：900° |
| JS25 | Bronze
| Universal use for ≤HRC60 material; Stainless(austenitic&Martensite,316L 303,304,321,316F,High Nickel Stainless...); Steel(Bearing steel,quenched steel,Cr-Mo stee,Mn steel...); Koveralloy; Superalloy;Copper; Iron castingPig iron；Nickel alloy.. | Nano Hardness :HV4500, Friction Coefficient: 0.4 Max.Temp：1100° |
| AL25 | Blue Grey
| Special use for mild material ; Especial for Pure iron , special for mild steel & mild stainless,like 304. | Nano Hardness :HV3500, Friction Coefficient: 0.25 Max.Temp：800° |
| AD12 | Black
| Special use for viscous Material:; Aluminium，PMMA，Polyethylene.CFRP. | Nano Hardness :HV2200, Friction Coefficient: 0.2 Max.Temp：400° |
| TZ25 | Champagne Gold
| Special use for titanium alloy. | Nano Hardness :HV4000 Friction Coefficient: 0.55 Max.Temp：900° |
| AT25 | Black
| Carbon Steel,alloy steel,Bearing steel, quenched steel,Cr-Mo stee,Mn steel...； | Nano Hardness :HV3500, Friction Coefficient: 0.6 Max.Temp：900° |
| LC25 | Rainbow
| Special use for viscous Material:; Aluminium，PMMA，Polyethylene.CFRP. | Nano Hardness :HV5000 Friction Coefficient: 0.05 Max.Temp：450° |
