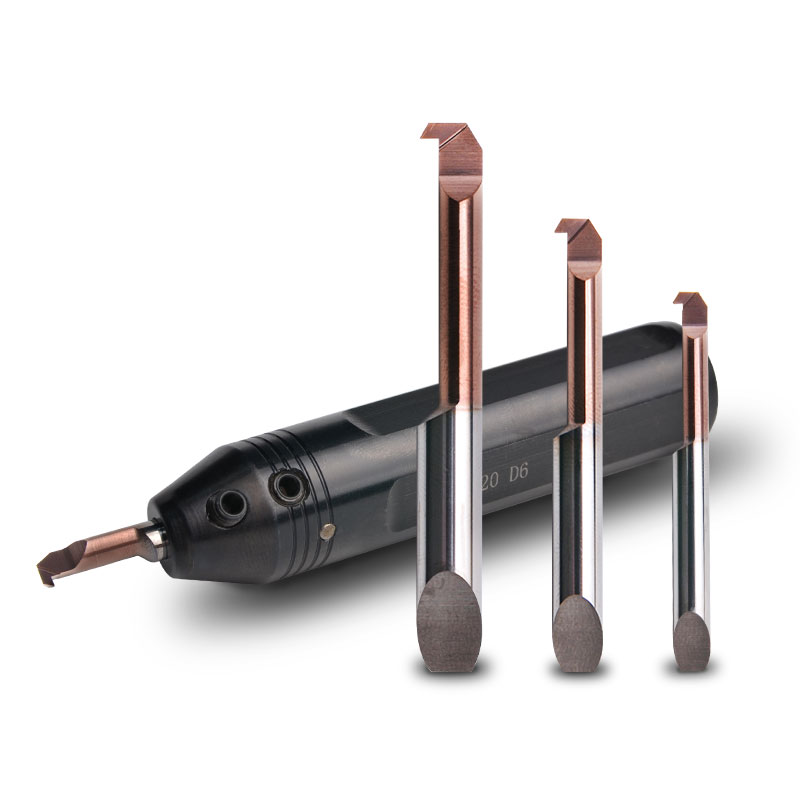

INSIGHT MBXR micro back turning cutter coolant

MBXR Back boring

Model Number

MBXR

Size

Shank Dia. 4.0 5.0 6.0

Customization

workpiece drawing / cutting sketch

Quick Details

IT can be used for applications of back boring also can use for grooving and turing.
Coating : Durable TiAlSiN

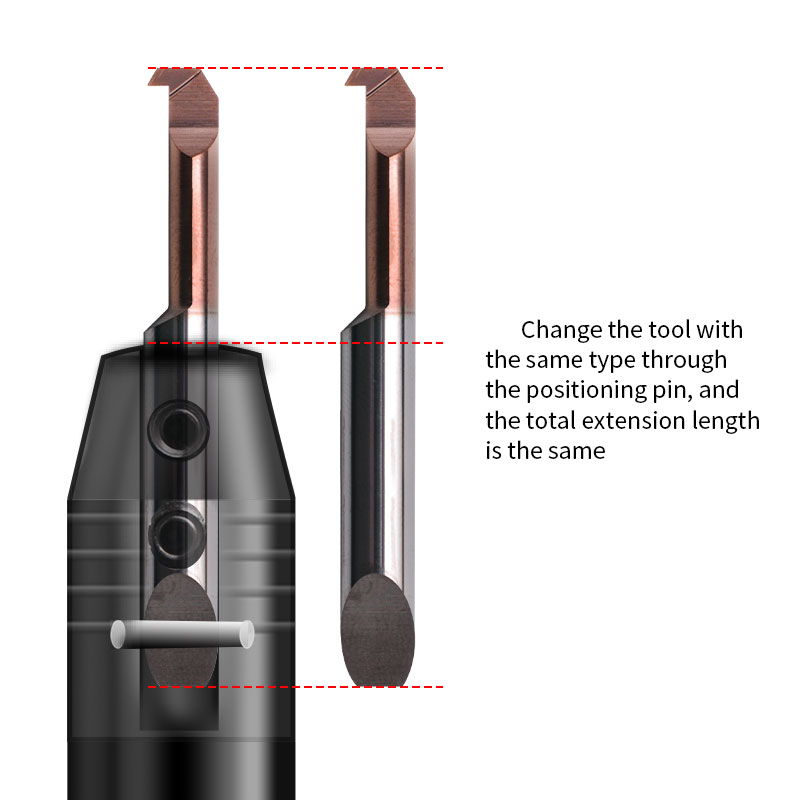

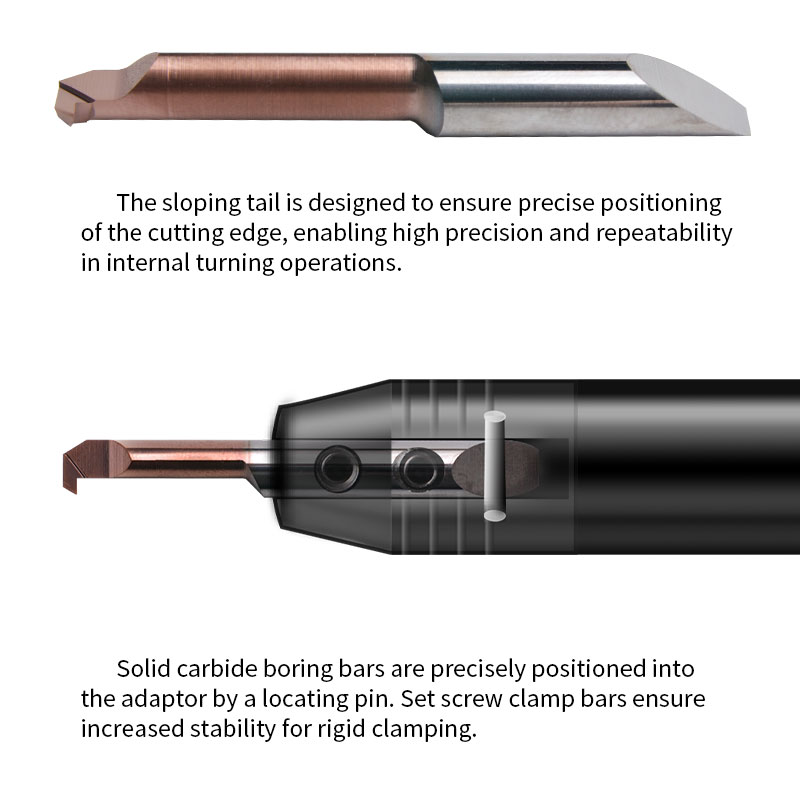

Quick change :shank design system with our toolholders.
Length tolorence :±0.02mm

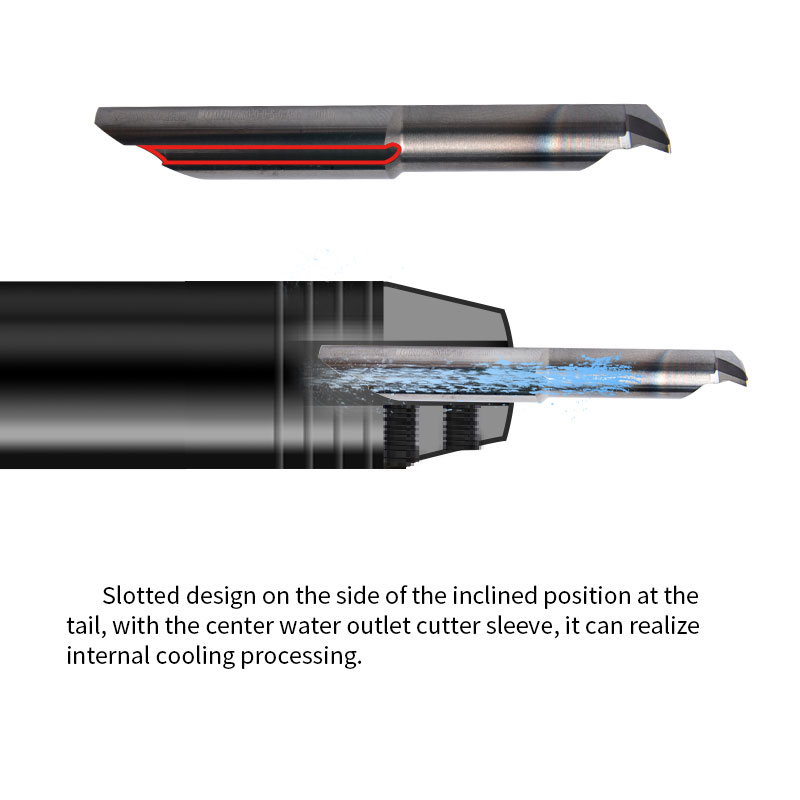

Inner coolant customized code: -C

Inquiry Download

DESCRIPTION

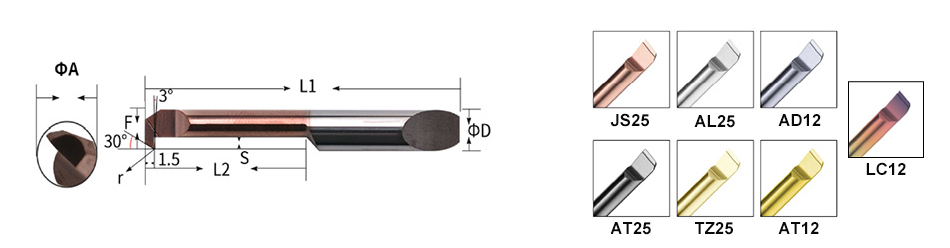

Specification

Product Type	Min. Dia (mm) ΦA	ΦD	r	L1	L2	F	S	JS25	AL25
MBXR0441L16R010-D-（C）	4.1	4	0.10	41	16	3.8	1.00	●	●
MBXR0551L20R010-D-（C）	5.1	5	0.10	45	20	4.8	1.30	●	●
MBXR0661L25R010-D-（C）	6.1	6	0.10	50	25	5.8	1.60	●	●
● on stock （C）Internal cooling customization

Coating

Coated Item

Color

Application

Performance parameter

AT12

Gold

Universal use for ≤HRC45 material;

Stainless(austenitic&Martensite,303,304,316F...);

Steel(Bearing steel，quenched steel，Cr-Mo stee， Mn steel...);

Koveralloy; Superalloy;Copper; Iron castingPig iron；Nickel alloy,PMMA...

Nano Hardness :HV3500

Friction Coefficient: 0.3

Max.Temp：900°

JS25

Bronze

Universal use for ≤HRC60 material;

Stainless(austenitic&Martensite,316L 303,304,321,316F,High Nickel Stainless...);

Steel(Bearing steel,quenched steel,Cr-Mo stee,Mn steel...);

Koveralloy; Superalloy;Copper; Iron castingPig iron；Nickel alloy..

Nano Hardness :HV4500,

Friction Coefficient: 0.4

Max.Temp：1100°

AL25

Blue Grey

Special use for mild material ;

Especial for Pure iron ,

special for mild steel & mild stainless,like 304.

Nano Hardness :HV3500,

Friction Coefficient: 0.25

Max.Temp：800°

AD12

Black

Special use for viscous Material:;

Aluminium，PMMA，Polyethylene.CFRP.

Nano Hardness :HV2200,

Friction Coefficient: 0.2

Max.Temp：400°

TZ25

Champagne Gold

Special use for titanium alloy.

Nano Hardness :HV4000

Friction Coefficient: 0.55

Max.Temp：900°

AT25

Black

Carbon Steel,alloy steel,Bearing steel,

quenched steel,Cr-Mo stee,Mn steel...；

Nano Hardness :HV3500,

Friction Coefficient: 0.6

Max.Temp：900°

LC25

Rainbow

Special use for viscous Material:;

Aluminium，PMMA，Polyethylene.CFRP.

Nano Hardness :HV5000

Friction Coefficient: 0.05

Max.Temp：450°
