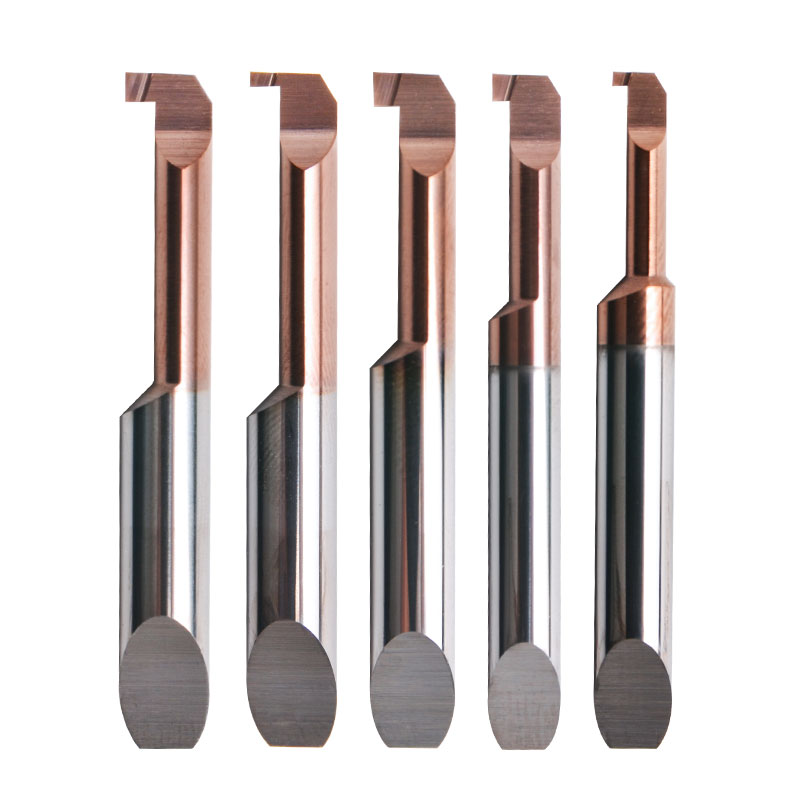

MGSR inner grooving tool
MGSR inner grooving cutter
MGSR inner grooving bar
INSIGHT MGSR micro grooving cutter coolant
MGSR inner grooving
Model Number
MGSR
Size
Shank Dia. 4.0 5.0 6.0 7.0
Customization

workpiece drawing / cutting sketch

Quick Details

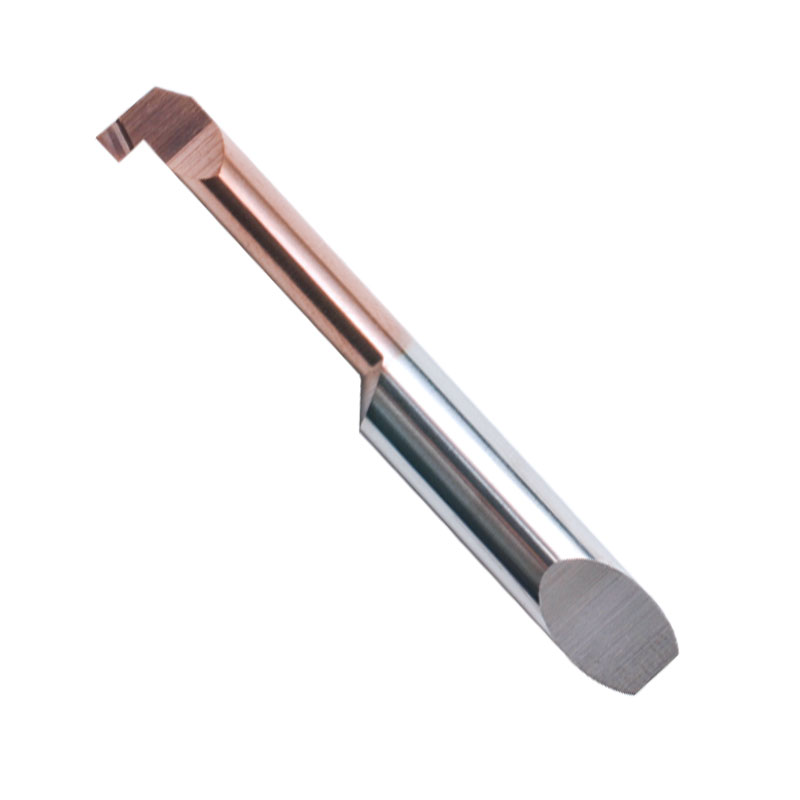

Desiged for Inner hole grooving application with "D" chip breaker

Coating : Durable TiAlSiN

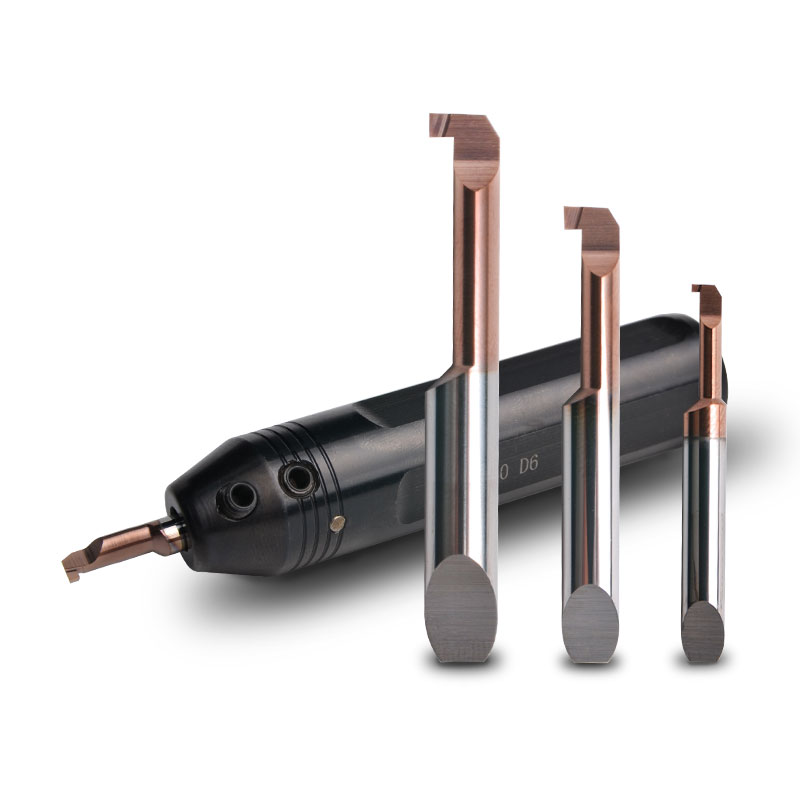

Quick change :shank design system with our toolholders.
Length tolorence :±0.02mm

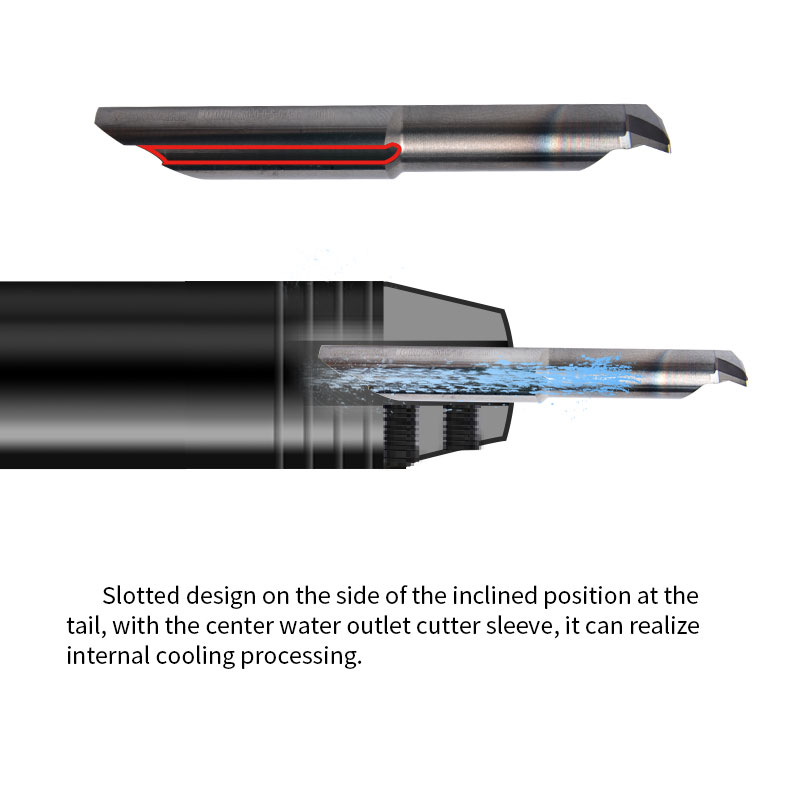

Inner coolant customized code: -C
DESCRIPTION

Specification

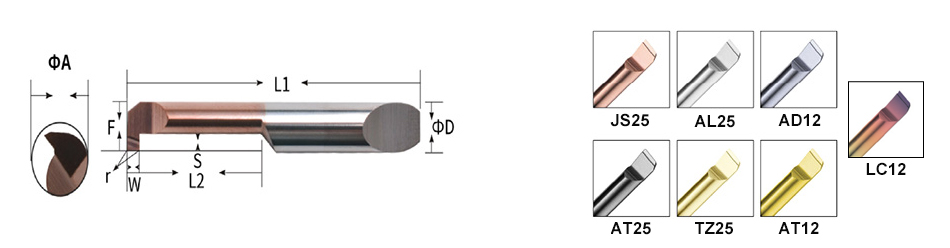

Product TypeMin. Dia (mm) ΦAΦDr±0.01L1L2FSWJS25
AL25
MGSR0426L05W050-D-(C)2.640.053052.350.650.50
MGSR0426L05W075-D-(C)2.640.053052.350.650.75
MGSR0431L05W050-D-(C)3.140.053052.800.800.50
MGSR0431L05W075-D-(C)3.140.053052.800.800.75
MGSR0431L05W100-D-(C)3.140.053052.800.801.00
MGSR0431L10W050-D-(C)3.140.0535102.800.800.50
MGSR0431L10W075-D-(C)3.140.0535102.800.800.75
MGSR0431L10W100-D-(C)3.140.0535102.800.801.00
MGSR0441L06W050-D-(C)4.140.053163.81.000.50
MGSR0441L06W075-D-(C)4.140.053163.81.000.75
MGSR0441L06W100-D-(C)4.140.053163.81.001.00
MGSR0441L06W150-D-(C)4.140.053163.81.001.50
MGSR0441L12W050-D-(C)4.140.0537123.81.000.50
MGSR0441L12W075-D-(C)4.140.0537123.81.000.75
MGSR0441L12W100-D-(C)4.140.0537123.81.001.00
MGSR0441L12W150-D-(C)4.140.0537123.81.001.50
MGSR0551L08W100-D-(C)5.150.10338 4.81.501.00
MGSR0551L08W150-D-(C)5.150.10338 4.81.501.50
MGSR0551L08W200-D-(C)5.150.10338 4.81.502.00
MGSR0551L15W100-D-(C)5.150.1040154.81.501.00
MGSR0551L15W150-D-(C)5.150.1040154.81.501.50
MGSR0551L15W200-D-(C)5.150.1040154.81.502.00
MGSR0661L10W100-D-(C)6.16
0.1035105.82.001.00
MGSR0661L10W150-D-(C)6.160.1035105.82.001.50
MGSR0661L10W200-D-(C)6.160.1035105.82.002.00
MGSR0661L20W100-D-(C)6.160.1045205.82.001.00
MGSR0661L20W150-D-(C)6.160.1045205.82.001.50
MGSR0661L20W200-D-(C)6.160.1045205.82.002.00
MGSR0771L25W100-D-(C)7.170.1054256.82.001.00
MGSR0771L25W150-D-(C)7.170.1054256.82.001.50
MGSR0771L25W200-D-(C)7.170.1054256.82.002.00
● on stock     (C)Internal cooling customization










































Coating




Coated ItemColorApplicationPerformance parameter
AT12

         Gold


Universal use for ≤HRC45 material;

Stainless(austenitic&Martensite,303,304,316F...);

Steel(Bearing steel,quenched steel,Cr-Mo stee, Mn steel...);

Koveralloy; Superalloy;Copper; Iron castingPig iron;Nickel alloy,PMMA...

Nano Hardness :HV3500

Friction Coefficient: 0.3

Max.Temp:900°

JS25

    Bronze


Universal use for ≤HRC60 material;

Stainless(austenitic&Martensite,316L 303,304,321,316F,High Nickel Stainless...);

Steel(Bearing steel,quenched steel,Cr-Mo stee,Mn steel...);

Koveralloy; Superalloy;Copper; Iron castingPig iron;Nickel alloy..

Nano Hardness :HV4500,

Friction Coefficient: 0.4

Max.Temp:1100°

AL25

  Blue Grey


Special use for mild material ;

Especial for Pure iron ,

special for mild steel & mild stainless,like 304.

Nano Hardness :HV3500,

Friction Coefficient: 0.25

Max.Temp:800°

AD12

       Black


Special use for viscous Material:;

Aluminium,PMMA,Polyethylene.CFRP.

Nano Hardness :HV2200,

Friction Coefficient: 0.2

Max.Temp:400°

TZ25

Champagne Gold


Special use for titanium alloy.

Nano Hardness :HV4000

Friction Coefficient: 0.55

Max.Temp:900°

AT25

      Black



Carbon Steel,alloy steel,Bearing steel,

quenched steel,Cr-Mo stee,Mn steel...;

Nano Hardness :HV3500,

Friction Coefficient: 0.6

Max.Temp:900°

LC25

   Rainbow


Special use for viscous Material:;

Aluminium,PMMA,Polyethylene.CFRP.

Nano Hardness :HV5000

Friction Coefficient: 0.05

Max.Temp:450°
